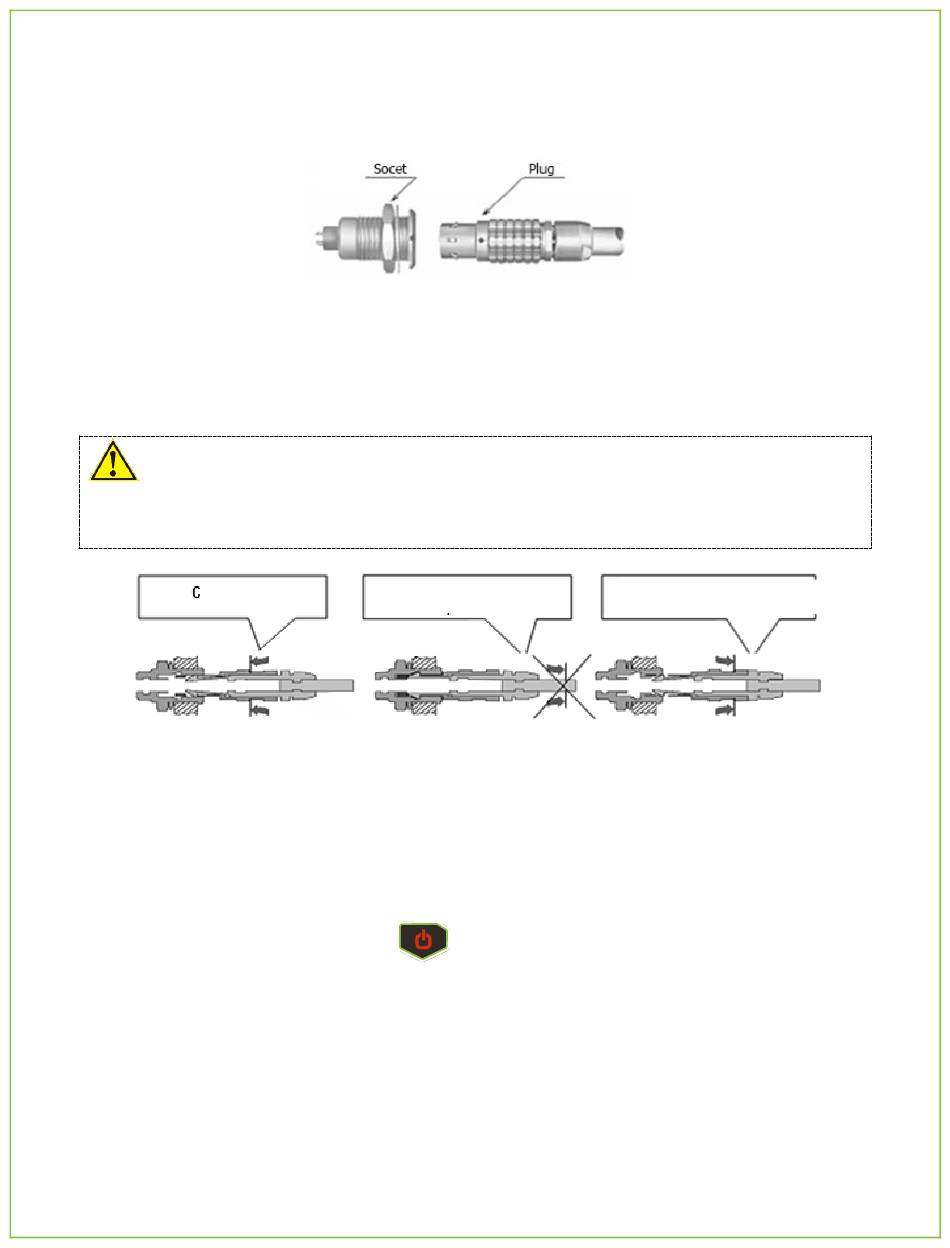

The connectors featured in the device (Fig. 2.1) consist of two parts: the device socket and the pin (plug)
of the cable.
Figure 2.1 – Connectors of the device
The way of connecting and disconnecting the plug and socket is shown on Fig. 2.2.
Warning!
When disconnecting the plug from the socket, grasp its body in the grooved area; do not pull on
the cable!
Connection Disconnection is wrong
Disconnection is right
Figure 2.2 – Handling of the connectors
The probe is connected to the device as follows: the emitting plate of the split-type probe is connected
to the connector marked with a red dot, and the receiving plate is connected to the left connector on
the top panel of the thickness gauge by inserting the cable connectors until you hear a click.

2.3 Operating procedure

2.3.1 Turning on

Switch the device on by holding the key " " on the control panel, until the short-time screensaver
appears on the display (fig. 2.3).
Figure 2.3 – Screensaver
