After this, the device switches to the main menu (Fig. 2.5). For choosing the menu section the
" " and " " keys, and the approval of choice is performed by pressing the "

2.3.2 Operation in the "MEASURING" mode

To enter the "MEASURING" mode press the key "
select the desired mode and confirm your selection by pressing "
"MEASURING" mode (Fig. 2.6).
Battery charge
Probe position
When the device is in the "MEASURING" mode, the battery charge level, the probe position indication,
the selected monitoring material, the established propagation velocity of the ultrasound in the control
material, and the measured value are shown.
The readings may be shown in several modes, to switch between modes, use a "
pressed, the menu for selecting the mode of operation appears: "NORM", "CONTR" and "B SCAN" (Fig.
2.7).
11 | NDT Systems, Inc.
P a g e
Soft keys

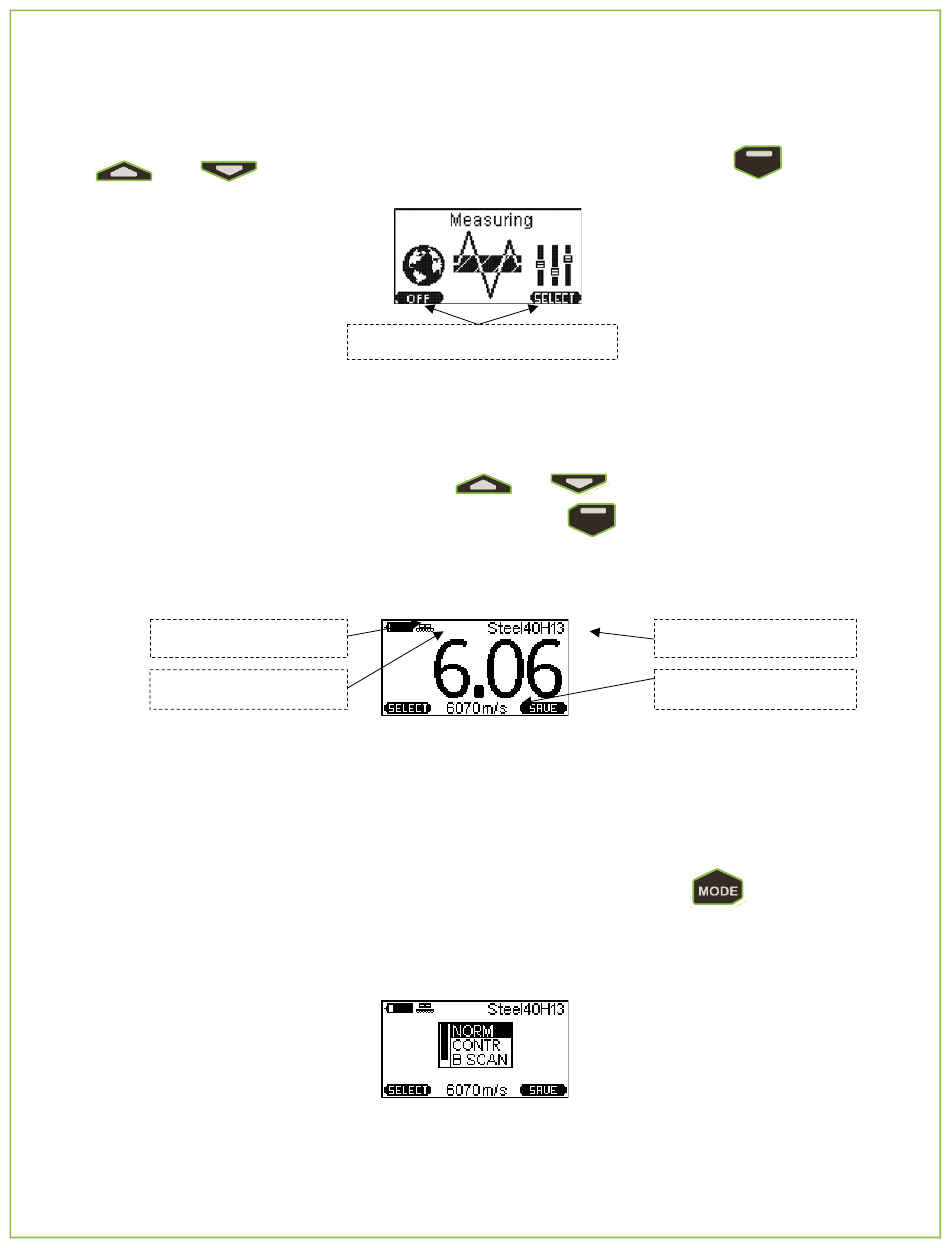

Figure 2.5 – The main menu of the device
