OttLite CSN5900W-WA Manual

H
Touch Switch
A
C
120°

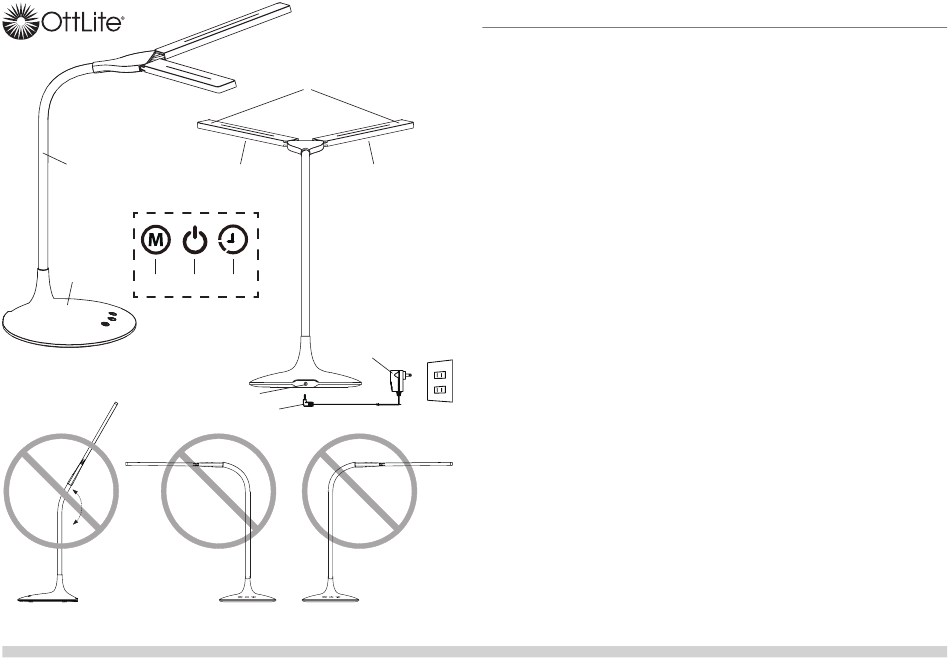

Figure 1

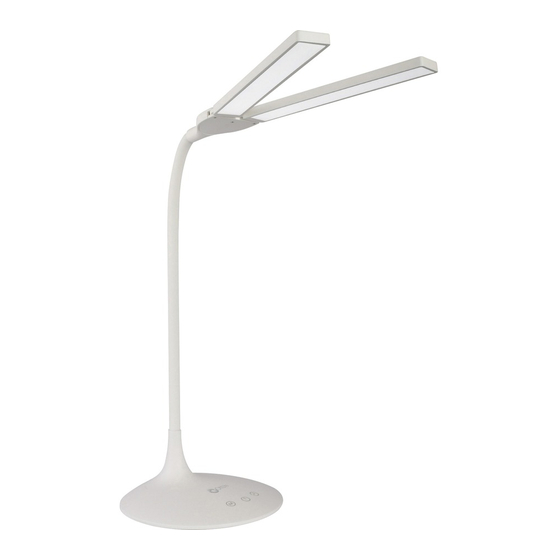

Pivot LED Desk Lamp with Dual Shades
CSN5900W-WA CSN5900C CSN59G5W
INS-22-0684
K
J
B D
G
F
E
Figure 2 Figure 3
Do Not Rotate
Dual Shades
past 45°
from Center
of base
CSN59G5W-CA
ENGLISH
CONGRATULATIONS!
You've purchased the finest in natural lighting technology with
your new OttLite product.
®
PRODUCT REGISTRATION FORM
Please complete the enclosed Product Registration Form and
return it today by mail, or register online by going to: OttLite.com/
warranty
CAUTION: TIP HAZARD. DO NOT ROTATE SHADES BEYOND
45° FROM CENTER OF BASE as shown in Figures 2 and 3.
Shades must be kept within 45° from center of base and must
align in the same forward-facing direction as the base.
NOTE: THIS UNIT IS FULLY ASSEMBLED
J
1. Remove lamp from packing placing lamp body base (A) flat on a
steady surface.
2. Connect the A/C Adapter input (E) into connector (F) in the
rear of the lamp.
3. Plug the A/C adapter (G) into a standard household 120V AC
outlet. NOTE: Only use with the supplied AC adapter to
avoid damage or fire.
4. This lamp offers both LED dimming and color mode function.
5. Turn the lamp ON & OFF using power "touch" switch (B) located
in the front-upper side of base (A).
6. To power LED lighting, slightly touch switch (B) to achieve the
following:
• to turn lamp "ON"; touch the switch "once"
• to turn lamp "OFF"; touch the switch a "second" time.
7. To power LED dimmer setting, touch switch (B) to turn "ON" lamp.
To operate dimmer function, continuously 'press' switch (B);
when the light reaches the desired brightness stop pressing.
8. To adjust lighting color mode: touch "M" switch (C) to change
light color temperature mode; 5000°K, 3500°K, 2700°K.
NOTE: 3500°K is the default color mode.
9. This lamp features a timer function to set an automatic shut-
off in 40 minutes when lamp is left in the ON position. To
engage timer operation perform the following:
• In any state, continuously "press" timer switch (D) to start
countdown
• Light will flash "two-times" signaling the start of light
function shutdown in a 40-minute period.
• At the completion of the 40-minute countdown, light will
automatically shut-off.
10. To reposition the light, hold base (A) steady then grasp and
adjust either lamp arm (H) or dual shades (K) depending on
needed position.
11. Dual shades (K) each have an LED light panel (J) and provide
multiple light positioning options.
12. Refer to diagrams 1-3 for lamp maximum adjustment range.
NOTE: DO NOT FORCE the shade or lamp body rotation
outside allowable adjustment range as excessive adjustment
may cause damage.
SAFETY WARNING:
SHOCK, OR INJURY TO PERSONS
1. Turn lamp off and WAIT UNTIL SHADE ASSEMBLY (K) AND
ADAPTER (G) ARE COOL before handling.
2. The LED panels (J) might get hot after several hours of
HSD9030B continuous use, DO NOT place your hands directly on LED
Pivot LED Desk Lamp with Dual Shades
light panels.
3. Never use with an extension cord unless the plug can be fully
inserted into the receptacles in the extension cord.
4. Do not alter the plug.
5. The lamp head included with this unit cannot be replaced by
the consumer.
6. INDOOR USE ONLY.
NOTE: The important safety instructions appearing in this
instruction sheet are not meant to cover all possible conditions and
situations that may occur. It must be understood that common
sense, caution, and care must be used with any electrical product.
CAUTION!
LUMINAIRE IS DAMAGED, IT SHALL BE EXCLUSIVELY REPLACED BY THE
MANUFACTURER OR ITS SERVICE AGENT OR A SIMILAR QUALIFIED PERSON IN
ORDER TO AVOID A HAZARD. INDOOR USE ONLY.
CAUTION!
REPLACEABLE; WHEN THE LIGHT SOURCE REACHES ITS END OF LIFE THE WHOLE
LUMINAIRE SHALL BE REPLACED. INDOOR USE ONLY
FCC PART 15
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that the interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that of
the receiver.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
CAN ICES-005 (B)/NMB-005 (B)
CAUTION: Any change or modification to product not expressly
recognized by OttLite Technologies voids OttLite's responsibility
for proper function of product.
POWER ADAPTER SPECIFICATION
Input: AC 100-240V, 50/60 Hz, 0.3A
Output: 5V DC, 1.0A with a Male DC Plug
TO REDUCE THE RISK OF FIRE, ELECTRIC
IF THE EXTERNAL FLEXIBLE CABLE OR CORD OF THIS
THE LIGHT SOURCE OF THIS LUMINAIRE IS NOT
REV0102722
