OttLite CS01RB9 Manual

M
F
D
E
B
A

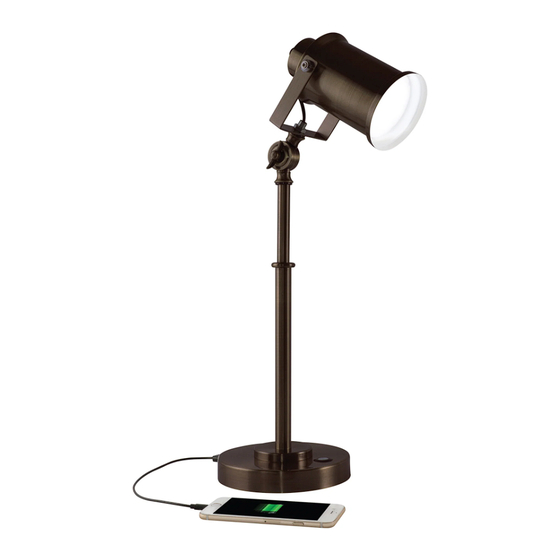

Restore LED Desk Lamp with USB
CS01RB9 CS01RB9-SHPR
INS190532
G
N
L
J
K
ENGLISH
CONGRATULATIONS!
You've purchased the finest in natural lighting technology with
your new OttLite ® product.
PRODUCT REGISTRATION FORM
Please complete the enclosed Product Registration Form and
return it today by mail, or register online by going to:
OttLite.com/warranty.
NOTE: THIS UNIT IS FULLY ASSEMBLED
1. Remove lamp from packing placing lamp body base (A) on a
flat steady surface.
2. Connect power adapter input (J) into connector (K) in the rear-
bottom of the lamp.
3. Plug the A/C adapter (H) into a standard household 120V AC
outlet. Note: Only use with the supplied AC adapter to
avoid damage or fire.
4. Power switch (B) is a "touch" switch that controls ON/OFF
power, the LED brightness settings, and the color mode
function of the lamp.
5. To power LED settings, slightly touch the switch (B) to achieve
the following:
• turn lamp "ON" to 1st brightnes setting; touch the switch "once";
• for 2nd brightness setting; touch the switch "two-times";
• for 3rd brightness setting; touch the switch "three-times";
• to turn lamp "OFF"; touch the switch "four-times".
6. This lamp provides three color modes. To adjust lighting color
mode "touch" switch (B) to turn "ON" lamp, then slightly
"touch" switch (B) and keep depressed 1-2 seconds to
change light color temperature mode; 5000K, 4000K, 2700K.
NOTE: The lamp will remember the last color mode setting.
7. To adjust shade assembly (G) turn thumbscrew (F)
counterclockwise to loosen, reposition shade assembly (G)
then turn thumbscrew (F) clockwise to tighten or simply angle
H
shade (D). To avoid damage to the lamp, DO NOT ATTEMPT
to move shade assembly (G) without loosening thumbscrew
(F). NOTE: As needed, tighten pivot joints (M) with the
enclosed Allen key (N). Be careful to not over tighten the joints.
8. DO NOT try to rotate the shade side-ways as the lamp may be
damaged.
SAFETY WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS
1. Turn lamp off and WAIT UNTIL LAMP HEAD (D) AND
ADAPTER (H) ARE COOL before handling.
2. The LED panel (E) might get hot after several hours of
continuous use, DO NOT place your hands directly on LED
light panel.
3. Never use with an extension cord unless the plug can be fully
inserted into the receptacles in the extension cord.
4. Do not alter the plug.
5. The lamp head included with this unit cannot be replaced by
the consumer.
6. INDOOR USE ONLY.
NOTE: The important safety instructions appearing in this
instruction sheet are not meant to cover all possible conditions
and situations that may occur. It must be understood that
common sense, caution, and care must be used with any
electrical product.
GD36-USB
Restore LED Desk Lamp with USB
CAUTION!
IF THE EXTERNAL FLEXIBLE CABLE OR CORD OF THIS LUMINAIRE
IS DAMAGED, IT SHALL BE EXCLUSIVELY REPLACED BY THE MANUFACTURER OR ITS
SERVICE AGENT OR A SIMILAR QUALIFIED PERSON IN ORDER TO AVOID A HAZARD.
INDOOR USE ONLY.
CAUTION!
THE LIGHT SOURCE OF THIS LUMINAIRE IS NOT REPLACEABLE;
WHEN THE LIGHT SOURCE REACHES IT'S END OF LIFE THE WHOLE LUMINAIRE
SHALL BE REPLACED.
FCC PART 15
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that the interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that of the receiver.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
CAUTION: Any change or modification to product not expressly
recognized by OttLite Technologies voids OttLite's responsibility for
proper function of product.
CAN ICES-005 (B)/NMB-005
AC/DC ADAPTER
Input: AC 100-240V, 50/60 Hz, 1A
Output: 24V DC, 1A with a Male DC Plug
THIS LAMP CONTAINS a 5V-2.1A USB output port (L) located
on the bottom rear of lamp. USB port can charge such items as
tablets, cellular phones, etc.
REV082719
