OttLite Strive Quick Start Manual

L
F

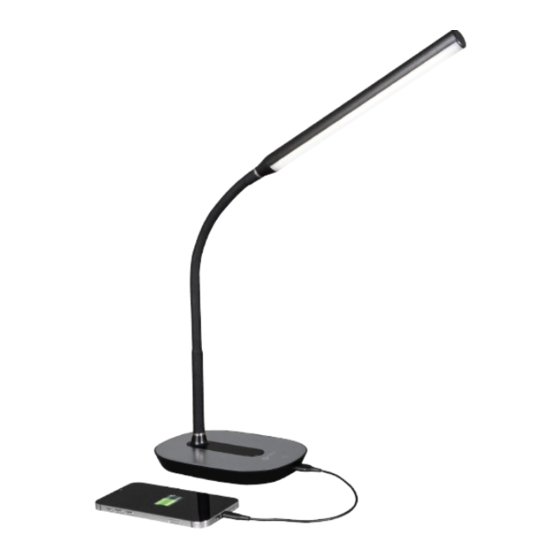

Strive LED Desk Lamp with USB Charging
CSN30G5W
INS220701
H
E
C
A
ENGLISH
CONGRATULATIONS! You've purchased the finest in natural lighting technology
with your new OttLite product.
®
PRODUCT REGISTRATION FORM
Please complete the enclosed Product Registration Form and return it today by mail, or
register online by going to: OttLite.com/warranty
WARNING: To prevent electric shock, make sure the lamp is not plugged in until
all steps are complete.
NOTE: THIS UNIT IS FULLY ASSEMBLED
1. Remove lamp from packing, placing lamp body base (A) flat on a steady surface.
2. Connect power adapter input (B) into connector (C) in the rear-bottom of the lamp.
3. Plug the power adapter (D) into a standard household 120V AC outlet. Note:
Only use with the supplied power adapter to avoid damage or fire.
4. Turn the lamp ON/OFF by using power switch (E) located on top of base (A).
To power LED settings, slightly touch switch (E) to achieve the following:
5.
• Turn lamp "ON" to 1st brightness setting; touch the switch "once";
• for 2nd brightness setting; touch the switch "two-times";
• for 3rd brightness setting; touch the switch "three-times";
• to turn lamp "OFF"; touch the switch "four-times".
G
6. THIS LAMP CONTAINS a 5V, 2.1A USB output port (F) located in the center of
base (A). USB port can charge items such as tablets, cellular phones, etc.
To reposition the light, hold the lamp base (A) steady and grasp either flex-neck
7.
(G) or shade (H) depending on needed adjustment. DO NOT FORCE the shade
or lamp body outside allowable adjustable range as excessive adjustment may
cause damage.
SAFETY WARNING:
OR INJURY TO PERSONS
Turn lamp off and WAIT UNTIL LAMP HEAD IS COOL before handling.
1.
2. The LED panel (L) might get hot after several hours of continuous use DO NOT
place your hands directly on LED light panel.
D
3. Never use with an extension cord unless the plug can be fully inserted into the
receptacles in the extension cord.
4. Do not alter the plug.
5. The lamp head included with this unit cannot be replaced by the consumer.
INDOOR USE ONLY.
6.
NOTE: The important safety instructions appearing in this instruction sheet are not
meant to cover all possible conditions and situations that may occur. It must be
understood that common sense, caution, and care must be used with any electrical
product.
CAUTION!
IF THE EXTERNAL FLEXIBLE CABLE OR CORD OF THIS LUMINAIRE IS
DAMAGED, IT SHALL BE EXCLUSIVELY REPLACED BY THE MANUFACTURER OR ITS SERVICE
AGENT OR A SIMILAR QUALIFIED PERSON IN ORDER TO AVOID A HAZARD. INDOOR USE ONLY.
CAUTION!
THE LIGHT SOURCE OF THIS LUMINAIRE IS NOT REPLACEABLE; WHEN
B
THE LIGHT SOURCE REACHES ITS END OF LIFE THE WHOLE LUMINAIRE SHALL BE REPLACED.
CAUTION: Any change or modification to product not expressly recognized by
OttLite Technologies voids OttLite's responsibility for proper function of product.
PL-0112USB
Strive LED Desk Lamp with USB Charging
FCC PART 15
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that the interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CAN ICES-005 (B)/NMB-005 (B)
POWER ADAPTER SPECIFICATION:
Input: AC 100-240V, 50/60 Hz, 1.4A
Output: 13V DC, 1.2A with a Male DC Plug
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
REV040522
