OttLite A30G5C Manual

F
E

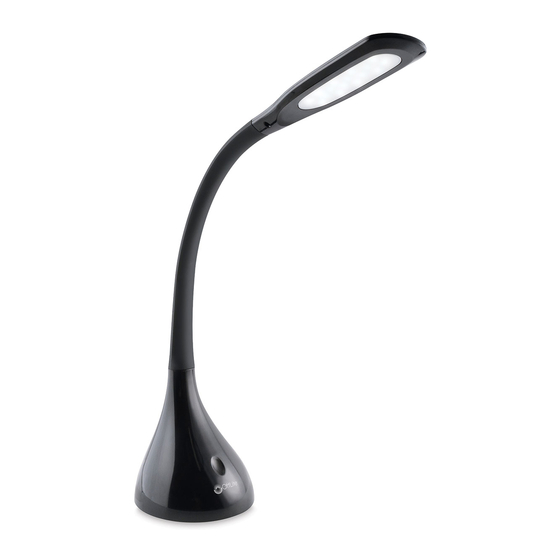

Creative Curves LED Desk Lamp
A30G5C A3000C A30PNC A30009
A30009-FFP A30G59-FFP
INS190492
C
G
D
B
A
H
A30WT9 A30GY9
English
CONGRATULATIONS!
You've purchased the finest in natural lighting technology with
your new OttLite ® product.
PRODUCT REGISTRATION FORM
Please complete the enclosed Product Registration Form and
return it today by mail, or register online by going to:
OttLite.com/warranty
NOTE: THIS UNIT IS FULLY ASSEMBLED
1. Remove lamp from packing placing lamp body base (A) flat
on a steady surface.
Connect the AC Adapter input (E) into connector (F) in the
2.
rear-bottom of the lamp.
Plug the A/C adapter (H) into a standard household 120V
3.
AC outlet. Note: Only use with the supplied AC adapter
to avoid damage or fire.
4. Turn the lamp ON & OFF using power switch (B) located
in the front lower-side of base (A). Power switch (B) is a
"touch" switch that controls the dimmer function for 4 levels
of brightness.
5. To power LED settings, slightly touch the switch to achieve
the following:
• turn lamp "ON" to 1st brightness setting; touch the
switch "once";
• for 2nd brightness setting; touch the switch "two-times";
• for 3rd brightness setting; touch the switch
"three-times";
• for 4th brightness setting; touch the switch "four-times";
• to turn lamp "OFF"; touch the switch "five-times".
To position the shade simply bend the flex-neck (G) as
6.
needed to point the light. Please hold the lamp base (A)
while adjusting the lamp. Take care not to overextend the
lamp to avoid unbalancing it and damage.
SAFETY WARNING:
FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS
1. Turn lamp off and WAIT UNTIL LAMP HEAD (C) and
ADAPTER (H) ARE COOL before handling.
2. The LED panel (D) might get hot after several hours of
continuous use, DO NOT place your hands directly on
LED light panel.
Never use with an extension cord unless the plug can be
3.
fully inserted into the receptacles in the extension cord.
4. Do not alter the plug.
5. The lamp head included with this unit cannot be replaced by
the consumer.
NOTE: The important safety instructions appearing in this
GX8274
instruction sheet are not meant to cover all possible conditions
Creative Curves LED Desk Lamp
and situations that may occur. It must be understood that
common sense, caution, and care must be used with any
electrical product.
CAUTION!
THIS LUmINaIRE IS DamagED, IT SHaLL bE ExCLUSIvELY REPLaCED bY
THE maNUFaCTURER OR ITS SERvICE agENT OR a SImILaR qUaLIFIED
PERSON IN ORDER TO avOID a HazaRD. INDOOR USE ONLY.
CAUTION!
REPLaCEabLE; WHEN THE LIgHT SOURCE REaCHES ITS END OF LIFE THE
WHOLE LUmINaIRE SHaLL bE REPLaCED.
FCC PART 15
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that the interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that of the receiver.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible
TO REDUCE THE RISK OF
for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation
CAUTiON! Any change or modification to product not
expressly recognized by OttLite Technologies voids OttLite's
responsibility for proper function of product.
CAN ICES-005 (B)/NMB-005 (B)
AC/DC ADAPTER
Input: AC 100-240V, 50/60 Hz, 0.2A
Output: 12V DC, 0.42A with a Male DC Plug
IF THE ExTERNaL FLExIbLE CabLE OR CORD OF
THE LIgHT SOURCE OF THIS LUmINaIRE IS NOT
REV022219
