OttLite WingShade Manual

H
J

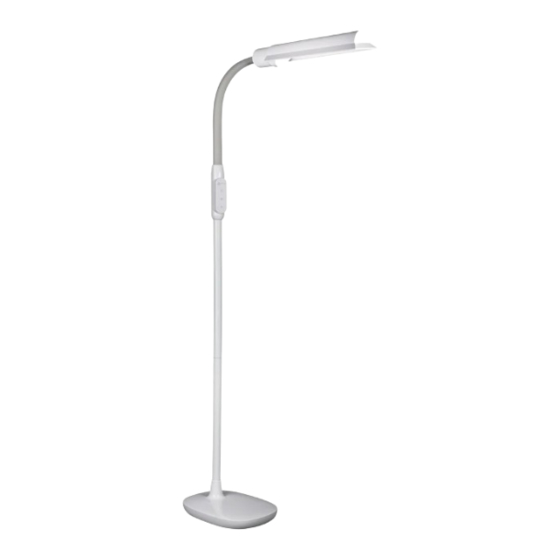

WingShade LED Floor Lamp
CSK63WGC CSK63WGC-SHPR CSK63G5W-SHPR
INS240790
D
E
F
G
C
B
N
M
L
A
R
Q
P
O
ENGLISH
CONGRATULATIONS!
You've purchased the finest in natural lighting technology with your new OttLite
product.
PRODUCT REGISTRATION FORM
Please complete the enclosed Product Registration Form and return it today by
mail, or register online by going to: OttLite.com/warranty
WARNING: To prevent electric shock, make sure the lamp is not plugged in
until all assembly steps are complete.

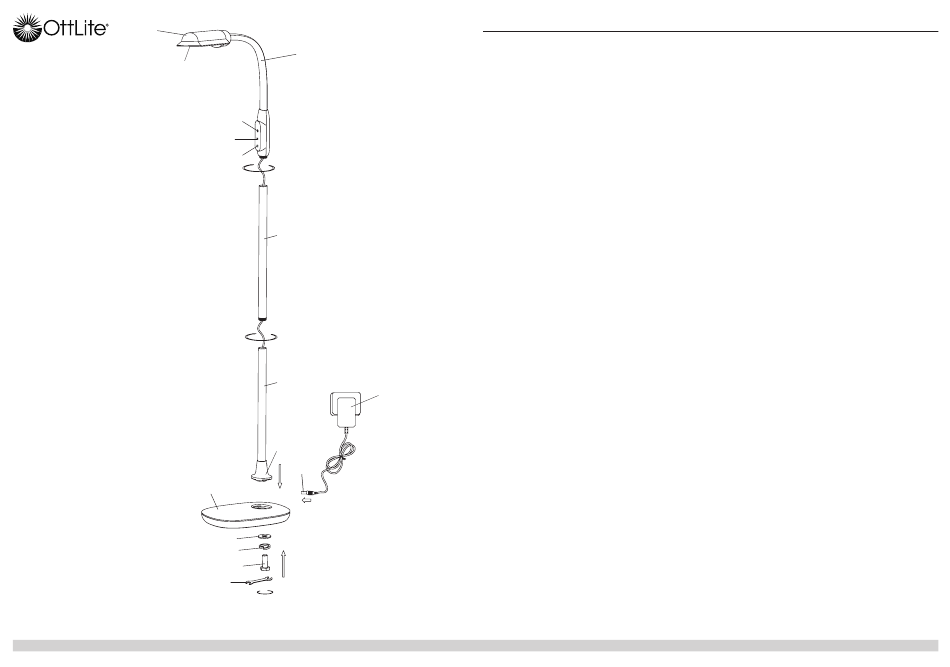

LAMP ASSEMBLY
1. Unpack all lamp parts and lay out with the Base (A) lying flat on a steady surface.
2. Remove wrench (O), bolt (P) and washers (Q, R) from the plastic bag included
in the box containing the base. NOTE: On occasions, washers (Q, R) may be
ONE solid washer that will serve the same purpose.
3. Firmly insert the pole (B) into the hole located in the base (A) with connection
(M) facing backwards.
4. Insert bolt (P) through the lock washer (Q), then through flat washer (R), and
finally into the recessed hole in the bottom of the base (A).
5. Use the enclosed wrench (O) to tighten the bolt (P) securely, turning clockwise
until tight.
6. Thread upper pole (C) to lower pole (B) by hand turning clockwise until tight.
NOTE: Plastic thread protector rings may be provided on each end of Pole (C).
These rings may be red or provided in different colors. These pieces are not
required for the assembly of this lamp and may be properly discarded.
7. To ease assembly, straighten flex-neck (D) so that neck and shade (H) are in a
straight line.
8. Thread arm (D) into upper pole (C) by hand turning clockwise until tight.
9. Connect the A/C adapter input (L) into connector (M) located in the rear-bottom
of pole (B).
OPERATION
1. Plug the A/C Adapter (N) into a standard household 120V AC outlet.
NOTE: Only use with supplied A/C adapter to avoid damage or fire.
2. This lamp provides three levels of brightness and three color modes.
3. Turn the lamp ON & OFF by using power switch (E) located beneath flex-neck (D).
4. To adjust the brightness of the lamp, touch switch (G).
5. To adjust lighting color modes: Press "M" (F) to change light color mode;
2700K, 3500K, 5000K. NOTE: The last color chosen will be recalled during
lamp shut down.
6. To position the shade simply bend the flex-neck (D) as needed to point the light.
To avoid damaging the lamp, DO NOT force the flex-neck into a sharp bend.
SAFETY WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS
1. Turn off/unplug and WAIT UNTIL SHADE (H) IS COOL before handling.
2. The LED light panel (J) might get hot after several hours of continuous use,
DO NOT place your hands directly on LED light panel.
3. Never use with an extension cord unless the plug can be fully inserted into
the receptacles in the extension cord.
4. Do not alter the plug.
5. The lamp head included with this unit cannot be replaced by the consumer.
6. INDOOR USE ONLY
NOTE: The important safety instructions appearing in this instruction sheet are
not meant to cover all possible conditions and situations that may occur. It must
be understood that common sense, caution, and care must be used with any
electrical product.
PL-0295
WingShade LED Floor Lamp
CAUTION!
IF THE EXTERNAL FLEXIBLE CABLE OR CORD OF THIS
®
LUMINAIRE IS DAMAGED, IT SHALL BE EXCLUSIVELY REPLACED BY THE
MANUFACTURER OR ITS SERVICE AGENT OR A SIMILAR QUALIFIED PERSON IN
ORDER TO AVOID A HAZARD.
CAUTION!
THE LIGHT SOURCE OF THIS LUMINAIRE IS NOT REPLACEABLE;
WHEN THE LIGHT SOURCE REACHES ITS END OF LIFE THE WHOLE LUMINAIRE SHALL
BE REPLACED.
FCC PART 15
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However,
there is no guarantee that the interference will not occur in a particular instal-
lation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the fol-
lowing measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that of
the receiver.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CAUTION: Any change or modification to product not expressly recognized by
OttLite voids OttLite's responsibility for proper function of product.
CAN ICES-005 (B)/ NMB-005 (B)
AC/DC ADAPTER
Input: AC 100-240V, 50/60 Hz, 0.6A
Output: 18V DC, 0.65A with a Male DC Plug
Accessories: Wrench
REV041124
