OttLite PL-0360Q User Manual

D
C
B

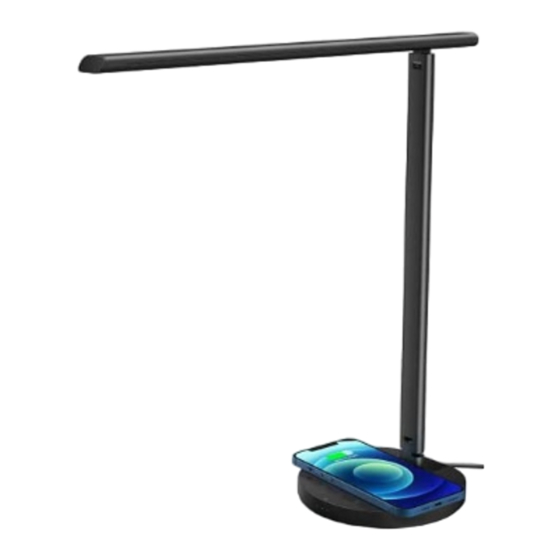

LED Desk Lamp with Wireless Charging
PL-0360Q
INS230754
H
K
G
F
M
J
E
ENGLISH
CONGRATULATIONS! You've purchased the finest in natural lighting technology
with your new OttLite product.
®

PRODUCT REGISTRATION FORM

Please complete the enclosed Product Registration Form and return it today by mail, or
register online by going to: OttLite.com/warranty
WARNING: To prevent electric shock, make sure the lamp is not plugged in until
all steps are complete.
NOTE: THIS UNIT IS FULLY ASSEMBLED
1. Remove lamp from packing, placing lamp body base (A) flat on a steady surface.
2. Connect power adapter input (B) into connector (C) in the rear-bottom of the lamp.
3. Plug the power adapter (D) into a standard household 120V AC outlet. Note:
Only use with the supplied power adapter to avoid damage or fire.
4. Turn the lamp ON/OFF by using power switch (E) located on top of base (A).
5. To power LED settings, slightly touch switch (E) to achieve the following:
• Turn lamp "ON" to 1st brightness setting; touch the switch "once";
• for 2nd brightness setting; touch the switch "two-times";
• for 3rd brightness setting; touch the switch "three-times";
• for 4th brightness setting; touch the switch "four-times";
• to turn lamp "OFF"; touch the switch "five-times".
6. This lamp provides three color modes. To adjust lighting color mode slightly
touch switch (M) to switch light color temperature mode; 5000K, 2700K, 4000K.
7. To reposition the light, hold the lamp base (A) or neck (G) steady and move
shade (H) up or down depending on needed adjustment. DO NOT FORCE the
shade or lamp outside allowable adjustable range as excessive adjustment may
cause damage.

WIRELESS CHARGING INSTRUCTIONS:

Wireless charging requires a Qi-certified device. To determine if your device is
Qi-certified, please visit the Wireless Power Consortium website.
To wirelessly charge a device, perform the following:
• Place the device, which supports Qi wireless charging standard, face up on the
middle of the Qi wireless charging icon (F).
• When the device is centered on the Qi wireless charging area (F), a solid BLUE
A
light (J) will come on noting charging mode active. Your device should show
charging is taking place.
• Check charge level on your device periodically to determine when device is fully
charged. NOTE: Product DOES NOT provide any indication of when device is fully
charged.
CAUTION! Device may become warm during charging. This is normal and part of
the process. Charging times vary by device.

SAFETY WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS
1. Turn lamp off and WAIT UNTIL LAMP HEAD IS COOL before handling.
2. The LED panel (K) might get hot after several hours of continuous use DO NOT
place your hands directly on LED light panel.
3. Never use with an extension cord unless the plug can be fully inserted into the
receptacles in the extension cord.
4. Do not alter the plug.
5. The lamp head included with this unit cannot be replaced by the consumer.
6. INDOOR USE ONLY.
NOTE: The important safety instructions appearing in this instruction sheet are not
meant to cover all possible conditions and situations that may occur. It must be
understood that common sense, caution, and care must be used with any electrical
product.
LED Desk Lamp with Wireless Charging
CAUTION!
IF THE EXTERNAL FLEXIBLE CABLE OR CORD OF THIS LUMINAIRE
IS DAMAGED, IT SHALL BE EXCLUSIVELY REPLACED BY THE MANUFACTURER OR ITS
SERVICE AGENT OR A SIMILAR QUALIFIED PERSON IN ORDER TO AVOID A HAZARD.
INDOOR USE ONLY.
CAUTION!
THE LIGHT SOURCE CONTAINED IN THIS LUMINAIRE SHALL
ONLY BE REPLACED BY THE MANUFACTURER OR HIS SERVICE AGENT OR A SIMILAR
QUALIFIED PERSON.
CAUTION: Any change or modification to product not expressly recognized by
OttLite Technologies voids OttLite's responsibility for proper function of product.

FCC WARNING

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that the interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Note 2: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.

IC WARNING

This device contains licence-exempt transmitter(s)/receiver that comply with
Innovation, Science and Economic Development Canada's licence-exempt RSS(s).
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause
undesired operation of the device.

RF EXPOSURE CONSIDERATIONS:

This equipment complies with the FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20cm between the radiator and any part of your body.
This equipment meets the exemption from the routine evaluation limits in section 2.5
of RSS-102. It should be installed and operated with a minimum distance of 20cm
between the radiator and any part of your body.
CAN RSS-216
CAN ICES-005 (B)/NMB-005 (B)

POWER ADAPTER SPECIFICATION:

Input: AC 100-240V, 50/60 Hz, 0.6A
Output: 13V DC, 1.2A with a Male DC Plug

Qi CHARGER SPECIFICATION:

Output: up to 5 Watts depending on device
The "Qi" symbol is a trademark of the Wireless Power Consortium.
REV041223
