18

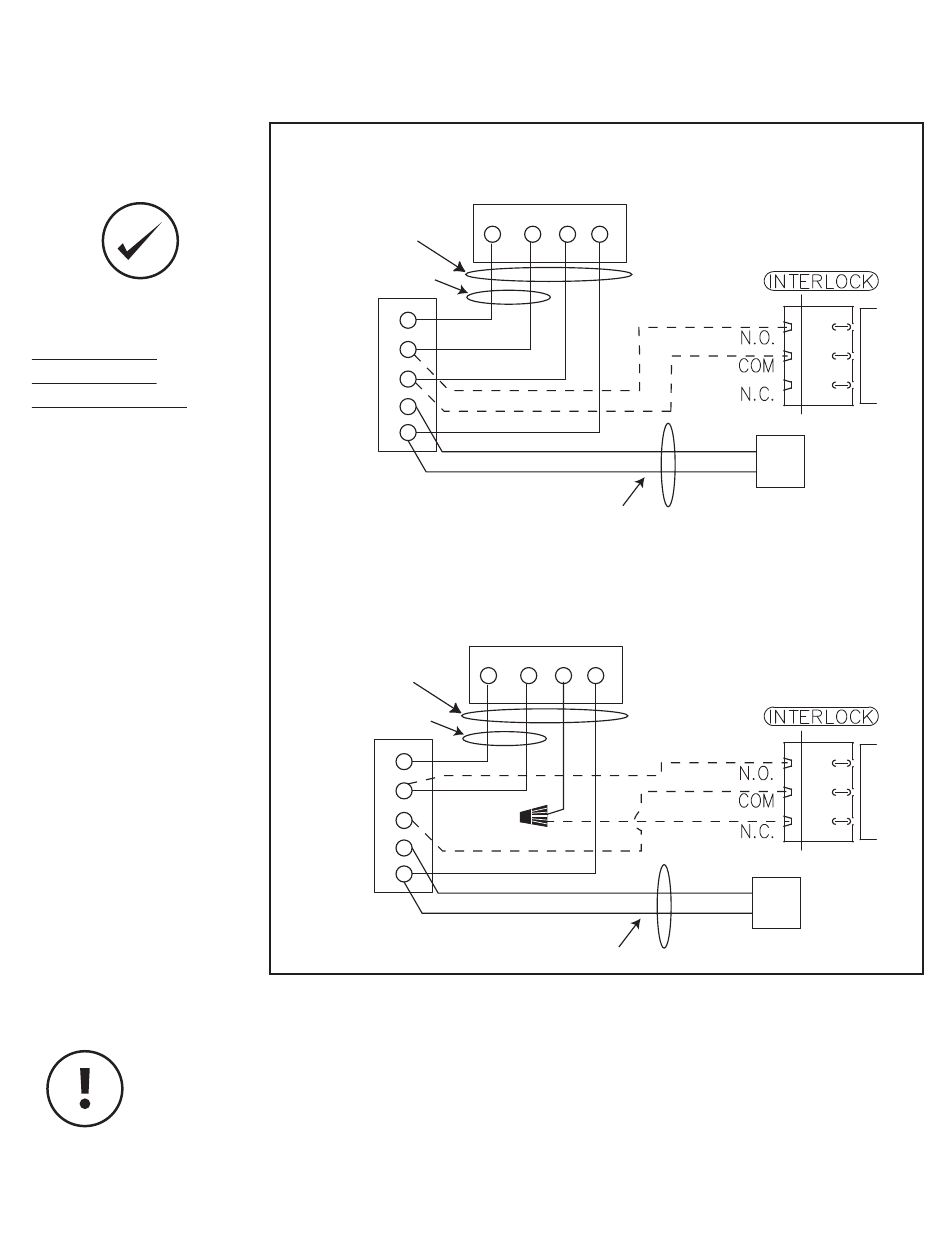

Wiring diagram
WIRING DIAGRAM TO
FORCED AIR SYSTEM
FOR A FURNACE
CONNECTION TO
A COOLING SYSTEM:
On some newer furnaces and older
thermostats, energizing the R and
G terminal at the furnace has the
effect of energizing the Y at the
thermostat and thereby turning on
the cooling system. If you identify this
type of thermostat, you must use
the "Alternative Accessory Control
Contact" wiring diagram.
Never connect a 120 volt AC circuit to the terminals of the Accessory Control Contacts. Only use
the low voltage class 2 circuit of the forced air system blower control
(CONT'D)
FOUR
WIRE
TWO WIRE
heating only
W
R
G
C
Y
FURNACE/HEATING
FURNACE
24-VOLT
24-VOLT
TERMINAL BLOCK
TERMINAL BLOCK
FOUR
WIRE
TWO WIRE
heating only
W
R
G
C
Y
FURNACE/HEATING
FURNACE
24-VOLT
24-VOLT
TERMINAL BLOCK
TERMINAL BLOCK
Standard Accessory Control Contact
Standard Furnace Interlock Wiring
THERMOSTAT
TERMINALS
R
G
W
Y
TWO
WIRE
Alternative Accessory Control Contact
Alternate Furnace Interlock Wiring
THERMOSTAT
TERMINALS
W
R
G
Y
WIRE JOINT
TWO
WIRE
COOLING SYSTEM
COOLING SYSTEM
