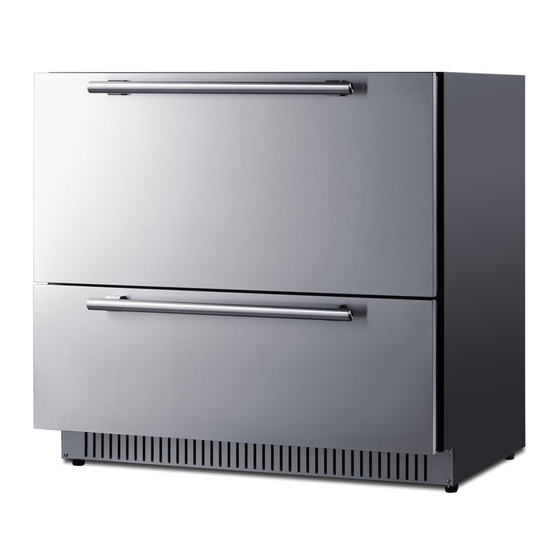

FROST-FREE DRAWER
REFRIGERATOR
SPR36332D
SPR36DROS
DBDRR36122
User Manual
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Write Model and Serial Numbers here:
Felix Storch, Inc.
An ISO 9001:2015 registered company
Model No.:
770 Garrison Ave
Bronx, New York 10474
Serial No.:
www.summitappliance.com
Advertisement
Table of Contents
Related Manuals for Summit DREAMBILT SPR36332D
Summary of Contents for Summit DREAMBILT SPR36332D
- Page 1 FROST-FREE DRAWER REFRIGERATOR SPR36332D SPR36DROS DBDRR36122 User Manual BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Write Model and Serial Numbers here: Felix Storch, Inc. An ISO 9001:2015 registered company Model No.: 770 Garrison Ave Bronx, New York 10474 Serial No.: www.summitappliance.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Appliance Safety Important Safeguards Location of Parts Installation Instructions Before Using the Appliance Installation of your Appliance Electrical Connection Anti-tip Bracket Installation Installation of the Handle Panel Ready Installation 8-10 Operating your Appliance 11-13 Control Panel ON/OFF Power / Mute Setting the Temperature Smart Control Mode ECO Mode... -
Page 3: Appliance Safety
APPLIANCE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. The symbol alerts you to potential hazards that can kill or injure you and others. - Page 4 Air the room in which the appliance is located for several minutes, and Contact the Service Department for advice. • The more coolant there is in an appliance, the larger the room in which it should be installed. In the event of a leakage, if the appliance is in a small room, there is the danger of combustible gases building up.
-
Page 5: Location Of Parts
LOCATION OF PARTS CALIFORNIA CARB/SNAP DISCLOSURE This product uses eco-friendly hydrocarbon refrigerant and fully complies with California CARB regulations. However, we are required by California law to provide the following disclosure statement in every product sold in California: "This equipment is prohibited from use in California with any refrigerants on the 'List of Prohibited Substances' for that specific end-use, in accordance with California Code of Regulations, title 17, section 95374. -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS Before Using Your Appliance • Remove the exterior and interior packing. • Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. -
Page 7: Anti-Tip Bracket Installation
The appliance should always be plugged into its own individual electrical outlet, which has a voltage rating that matches the rating label on the appliance. This provides the best performance and prevents overloading house wiring circuits, which could cause a fire hazard from overheating. Never unplug the appliance by pulling on the power cord. -
Page 8: Installation Of The Handle
Installation of the Handle To install the handle, please follow these instructions: 1. Carefully pull the door gasket (seal) away from the door in the area where the handle will be attached. 2. Place the handle over the screw holes on the outside of the door. The screws will attach through the back of the drawer front. - Page 10 Required Tools: Phillips Screwdriver 1/8" Drill Bit See: Overlay Panel Dimensions before installing. NOTE: To install your custom panel, you must first remove the stainless steel drawer front. 1. Open the drawer and detach the front drawer panel by removing ten Phillips screws.
-
Page 11: Operating Your Appliance
OPERATING YOUR APPLIANCE The appliance should be placed where the ambient temperature is between 10~38°C (50~100°F). If the ambient temperature is above or below this range, the performance of the appliance may be affected. Placing your appliance in extreme cold or hot conditions may cause interior temperatures to fluctuate. -
Page 12: Eco Mode
Force Quitting Smart Control Mode Press and hold the buttons simultaneously for 5 seconds, the small dot in the upper left corner of the LED will illuminate. • After quitting the smart control mode, the alarm will not sound when the door is open for more than 5 minutes. -
Page 13: Defrosting
Defrosting • The appliance defrosts automatically in normal operating conditions. • The evaporator behind the rear wall of the appliance defrosts automatically. The condensate collects in the drainage channel behind the rear wall of the appliance and flows through the drainage hole into the drip tray by the compressor where it evaporates. -
Page 14: Care And Maintenance
CARE AND MAINTENANCE Cleaning Your Appliance • Turn off the power, unplug the appliance, and remove all items. • Wash the inside surfaces with a warm water and baking soda solution. The solution should consist of about 2 tablespoons of baking soda to a quart of water. •... -
Page 15: Troubleshooting
TROUBLESHOOTING You can solve many common problems easily, saving you the cost of a service call. Try the suggestions below to see if you can solve the problem before calling the servicer. PROBLEM POSSIBLE CAUSE REMEDY Appliance does not The appliance defrosts automatically Connect the appliance. - Page 16 There is a difference The appliance is being turned on for This is normal, leave the appliance between the running for several hours and the the first time, after a restart, or a temperature inside the temperature will stabilize, if this does long period out of operation.
-
Page 17: Limited Warranty
LIMITED WARRANTY ONE-YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company.
