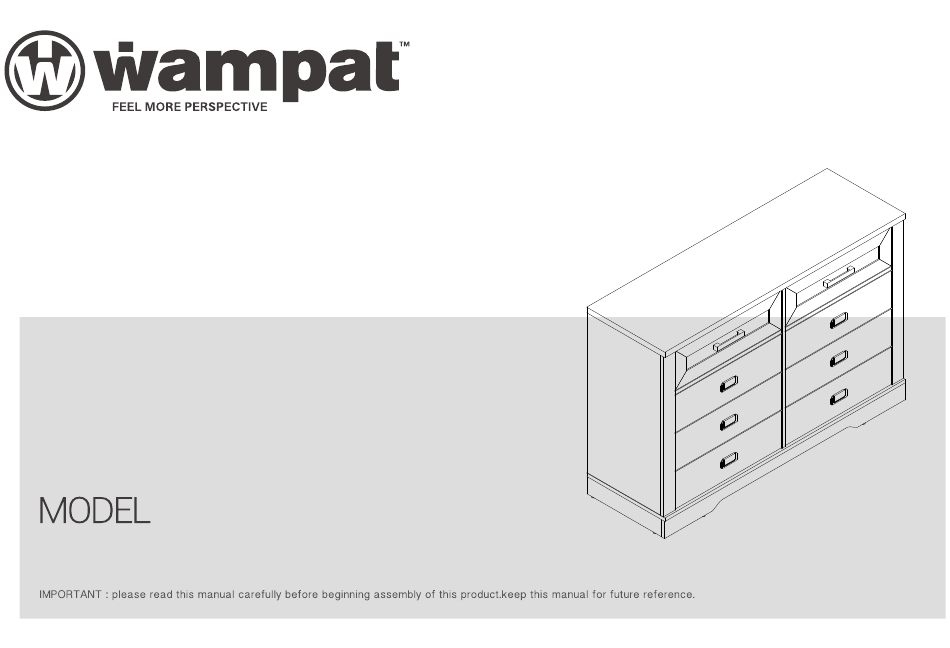

- Page 1 Assembly Instructions W11E5120W W11E5121R...
- Page 4 ●The provided glue(H) is to secure wood dowels(A) in place . Cam lock Wooden dowel Cam bolt When first inserting dowels, locate the Ø15x9mm Ø6x30mm Ø6x35mm appropriate hole for the dowel , place a x 56 x 56 small amount of glue in the hole and x 46 insert the dowel .
- Page 5 ●Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor or the empty carton to avoid any scratches. x 10 · Screw cam bolts(B) into panel(9). · Insert dowels(A) into panels(7,8,9). ３...
- Page 6 · Screw cam bolts(B) into both sides of panel(5). · Insert dowels(A) into panel(5).
- Page 7 2 Person Task · Attach panel(5) to panel(9). · Insert and secure cam locks(C) to panel(5) to lock it.
- Page 8 2 Person Task · Attach panels(7,8) to panel(5). · Insert and secure cam locks(C) to panel(7,8) to lock it.
- Page 9 · Screw cam bolts(B) into panels(3,4). · Insert dowels(A) into panels(3,4).
- Page 10 2 Person Task · Attach panel(3) to panel(7,9 · Attach panel(4) to panel(8,9). · Insert and secure cam locks(C) to panels(7,8,9) to lock it.
- Page 11 · Screw cam bolts(B) into panels(2,11). · Insert dowels(A) into panels(10,12).
- Page 12 2 Person Task x 10 · Attach panels(2) to parts(3,4,5) with screws(E).
- Page 13 2 Person Task · Attach panels(10,12) to panel(11). · Insert and secure cam locks(C) to panels(10,12) to lock it. · Attach panels(10,11,12) to panels(2). · Insert and secure cam locks(C) to panels10,11,12) to lock it.
- Page 14 · Carefully slide part(6) into place along the back of the assembly.
- Page 15 · Screw cam bolts(B) into panel(1).
- Page 16 2 Person Task · Attach panel(1) to panel(3,4,5). · Insert and secure cam locks(C) to panels(3,4,5) to lock it.
- Page 17 · Secure parts(F) with screws(G) as per diagram.
- Page 18 x 24 x 16 · Screw cam bolts(B) into panels(18). · Insert dowels(A) into panels(13,14).
- Page 19 x 32 · Attach panels(13,14) to panels(15) with screws(D). · Carefully slide panels(16) into place along the bottom of the assembly.
- Page 20 x 24 x 12 · Attach panels(18) to panels(13,14). · Insert and secure cam locks(C) to panels(13,14) to lock it. · Attach parts( ) to panels (18) with screws (J) correctly.
- Page 21 · Screw cam bolts(B) into panels(17). · Attach part(L) to panel(17) with bolts( K) correctly.
- Page 22 · Attach panels(17) to panels(13,14). · Insert and secure cam locks(C) to panels(13,14) to lock it. 7 2 0...
- Page 23 Slider arm Slider bracket Adjust Height · Assembled the drawers as per diagram Note : If the drawer does not go in smoothly. Press or lift the plastic release lever. Pull out the slider bracket from the slider arm. Loosen the screws on slider brackets, You can adjust up or down by a few mm.
- Page 24 WARNING Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall. Wall anchor and hardware are included with this product. Please make sure hardware is suitable for your walls before installing, as different wall materials may require different types of anchors.
