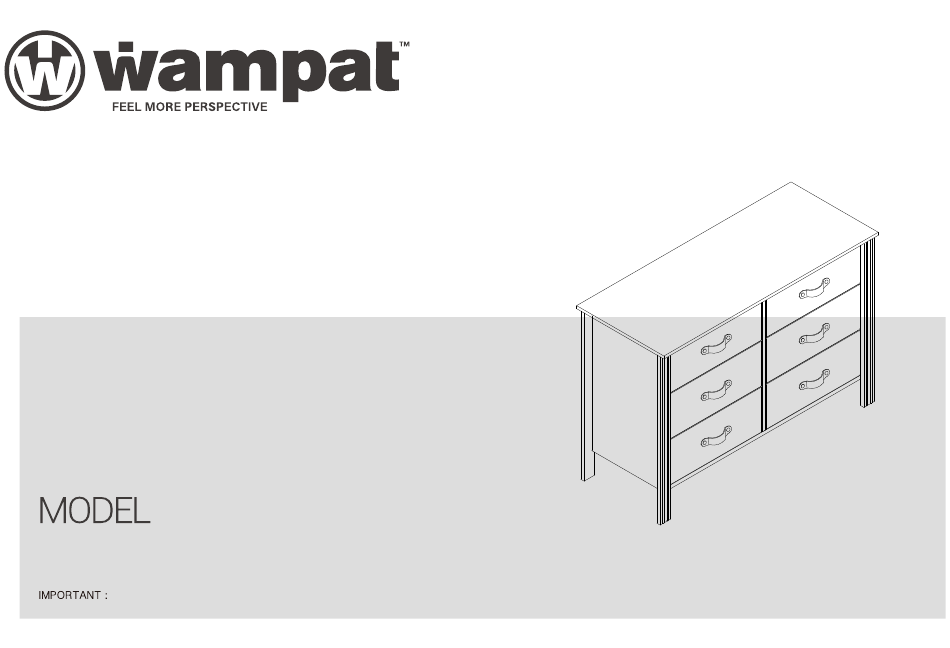

- Page 1 Assembly Instructions W11A4110W W11A4111B Please read this manual carefully before beginning assembly of this product.Keep this manual for future reference.
- Page 4 x 38 x 27 x 38 Cam lock Cam bolt Wooden dowel Screw Ø15x9.5mm Ø6x24mm Ø6x30mm Ø4x40mm x 12 x 24 Screw Screw Handle component Handle bolt Ø3x12mm Ø10.5xØ3x12mm Tools Required Flat-head screw Plastic wedge (Not included) Tipping restraint hardware kit (inside plastic bag)
- Page 5 180° · Screw cam bolts (A) into panel (4).
- Page 6 2 Person Task Unfinished edge Unfinished edge · Insert dowels (C) into panels (7). · Attach panels (7) to panel (4). · Insert and secure cam locks (B) to panels (7) to lock it.
- Page 7 2 Person Task Unfinished edge Unfinished edge · Insert dowels (C) into panels (7). · Attach panels (7) to panel (4). · Insert and secure cam locks (B) to panels (7) to lock it.
- Page 8 2 Person Task · Insert dowels (C) into panel (4). · Attach panels (5,6) to panel (4) with screws (D).
- Page 9 x 12 · Screw cam bolts (A) into panels (2,3).
- Page 10 2 Person Task x 12 · Insert dowels (C) into panels (5,6,7). · Attach panels (2,3) to panels (5,6,7). · Insert and secure cam locks (B) to panels (5,6,7) to lock it.
- Page 11 x 12 · Screw cam bolts (A) into panels (8,9,10,11).
- Page 12 2 Person Task · Insert dowels (C) into panels (2,3). · Attach panels (8,9) to panels (2,3). · Insert and secure cam locks (B) to panels (2,3) to lock it.
- Page 13 2 Person Task · Insert dowels (C) into panels (2,3). · Attach panels (10,11) to panels (2,3). · Insert and secure cam locks (B) to panels (2,3) to lock it.
- Page 14 x 24 Attach parts (14,15) to panels (2,3,4) with screws (E).. ·...
- Page 15 ·Carefully slide panels (12,13) into place along the back of the assembly.
- Page 16 · Screw cam bolts (A) into panel (1).
- Page 17 2 Person Task · Insert dowels (C) into panels (2,3,4). · Attach panel (1) to panels (2,3,4). · Insert and secure cam locks (B) to panels (2,3,4) to lock it.
- Page 18 · Attach panels (12,13) with screws (F) correctly.
- Page 19 · Secure parts (I) to panels (1,2,3,6) using screws (J).
- Page 20 Step 1 Step 2 x 12 · Place panels (17) into panels (16) . · Attach handles (G) to panels (16) with bolts (H).
- Page 21 · Carefully slide panels (16) into place along the bottom of the assembly.
- Page 22 WARNING Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall. Wall anchor and hardware are included with this product. Please make sure hardware is suitable for your walls before installing, as different wall materials may require different types of anchors.
