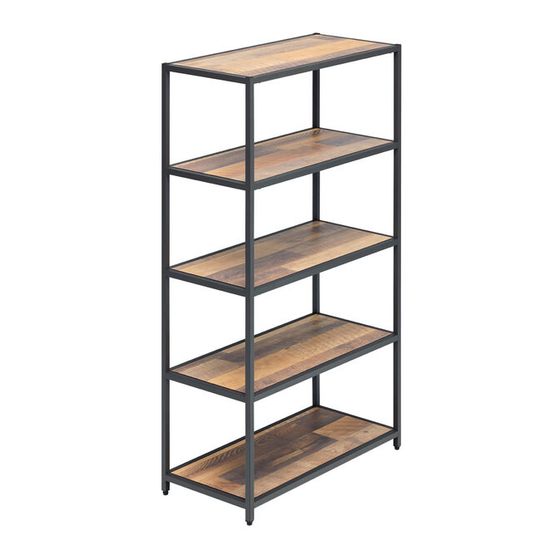

5-Tier Open Shelf
SIDE FRAME
x2
1
2
INCLUDED COMPONENTS FOR ASSEMBLY
SHELF FRAME
x5
WALL ANCHORS
x2
M6 X 10MM
SCREW
x20
WALL ANCHOR
BRACKET
x2
Take one of the SIDE FRAMES and lay it on a fl at surface.
Insert the (5) SHELF FRAMES into the SIDE FRAME connecti on points.
2 People
70 lbs (31.75 kg)
Recommended
per shelf
for Assembly
SHELF
x5
4MM HEX
DRILL BIT
x1
Tools Needed
ST4 X 38MM
SCREW
x2
�
PHILLIPS SCREWDRIVER
�
POWER DRILL
WALL ANCHOR
CABLE
x2
4MM ALLEN KEY
x1
(Not Included)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vari 5-Tier Open Shelf
Summary of Contents for Vari 5-Tier Open Shelf
- Page 1 5-Tier Open Shelf 2 People 70 lbs (31.75 kg) Recommended per shelf for Assembly INCLUDED COMPONENTS FOR ASSEMBLY SIDE FRAME WALL ANCHOR SHELF FRAME SHELF CABLE WALL ANCHORS 4MM ALLEN KEY 4MM HEX DRILL BIT M6 X 10MM SCREW Tools Needed...
- Page 2 M6 X 10MM SCREWS Insert the (4) M6 X 10MM SCREWS into each SHELF FRAME, for Take the other SIDE FRAME and slot the connecti on points into a total of (20), and securely ti ghten them using the included 4MM each SHELF FRAME insert.
- Page 3 Depending on where you intend to place the 5-Tier Open Shelf and the wall type, follow the corresponding instructions below. NOTE: Determine where the Shelf will be placed BEFORE installing the wall anchors. INTERIOR WALL STUD BRACKET 5/32” X 1 1/2”...
- Page 4 WARNING: Failure to detach this restraint before moving furniture may result in injury and damage. a safety measure, it is not a substi tute for proper adult supervision. (800) 207-2587 Patent and trademark informati on: vari.com/patents ©2024 Varidesk, LLC All rights reserved.
