Summary of Contents for HWAM I 40/56

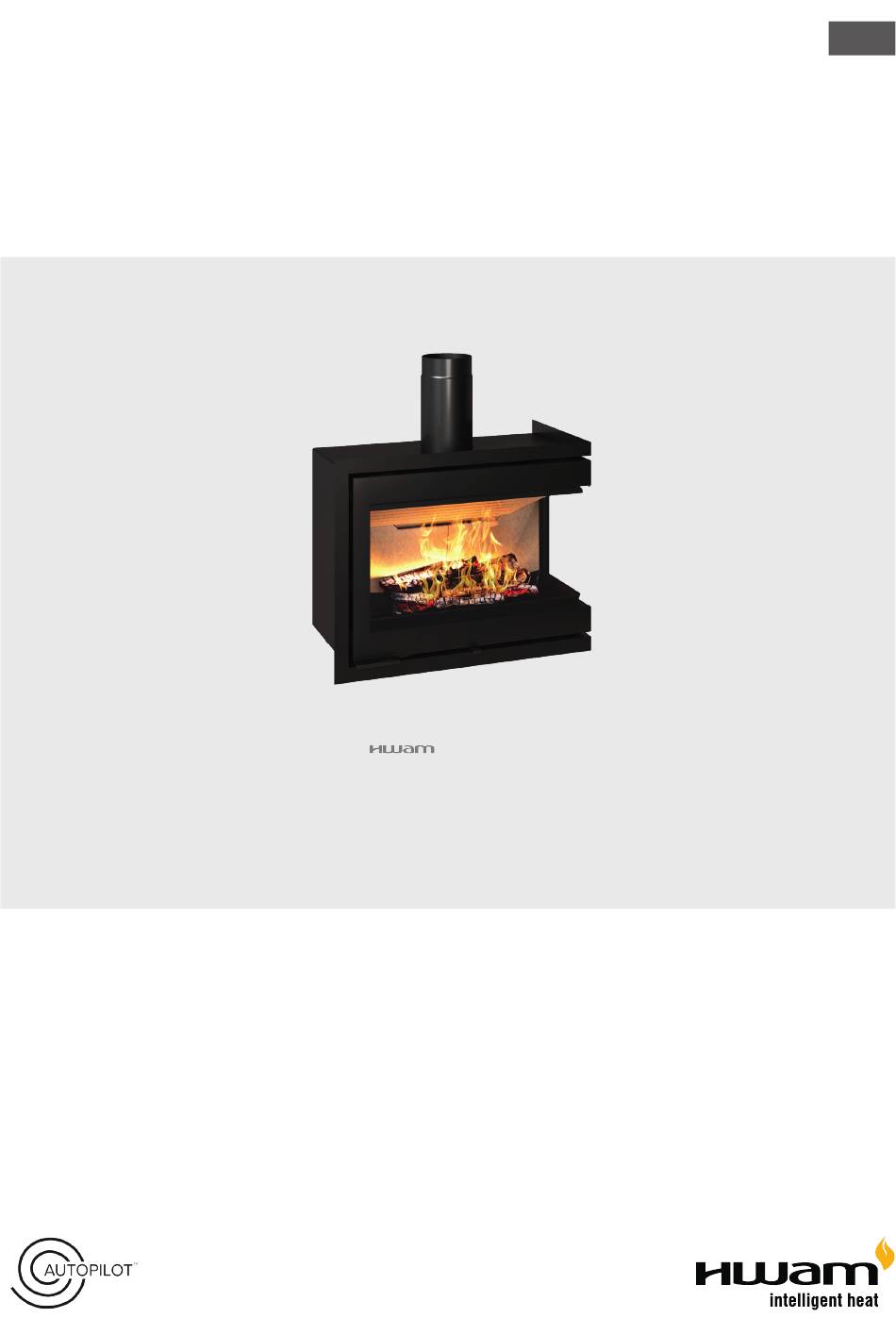

- Page 1 User manual I 40/56 23.04.2024 / 97-9722 www.hwam.com...
-
Page 2: Firing Manual - Wood
The integrated automatic air supply, HWAM® Autopilot , automatically regulates the air supply to the combustion chamber. The output – that is the emission of heat - is regulated by means of the regulation lever. HWAM Autopilot is set to maximum when the air control ®... - Page 3 Be careful to make a good lighting with suitably dry wood, using kindling and lighting the fire in the top layers of kindling. It is important to achieve a high flue gas temperature quickly. Push the adjustment bar all the way to the right to set the HWAM Autopilot™ to maximum effect. Put split kindling, corresponding to two ®...
-
Page 4: In General About Firing
In general about firing Chimney The chimney is the “motor” of the insert and it is crucial for the functioning of the woodburning insert. The chimney draft provides a partial vacuum in the insert. This vacuum removes the smoke from the insert, sucks air through the dampers for the so-called glass pane rinse which keeps the glass free of soot, and sucks in air through both primary and secondary dampers for the combustion. -
Page 5: Maintenance
At least once every other year, the insert should receive a thorough, preventative service inspection. Among other things, the service inspection covers: • A thorough cleaning of the insert. • Check the spring in the HWAM ® Autopilot™ unit and replace if necessary. - Page 6 Before chimney sweeping can be performed, the adjustment bar must be set all the way to the left to prevent soot and ash from entering the HWAM Autopilot™. Remove the grate, the skamolex bottom and the skamolex sides. Remove the baffle brick and the steel baffle as ®...
-
Page 7: Operational Problems
• If the draught is too strong inside the chimney, it may be necessary to set the adjustment bar to minimum, i.e. to the left. If problems occur that you cannot fix yourself, please consult your wood-burning stove retailer. Declaration of Performance The DoP can be downloaded from our website via the following link: www.hwam.com/dop/i40-56 Page 7 of 8 pages...
