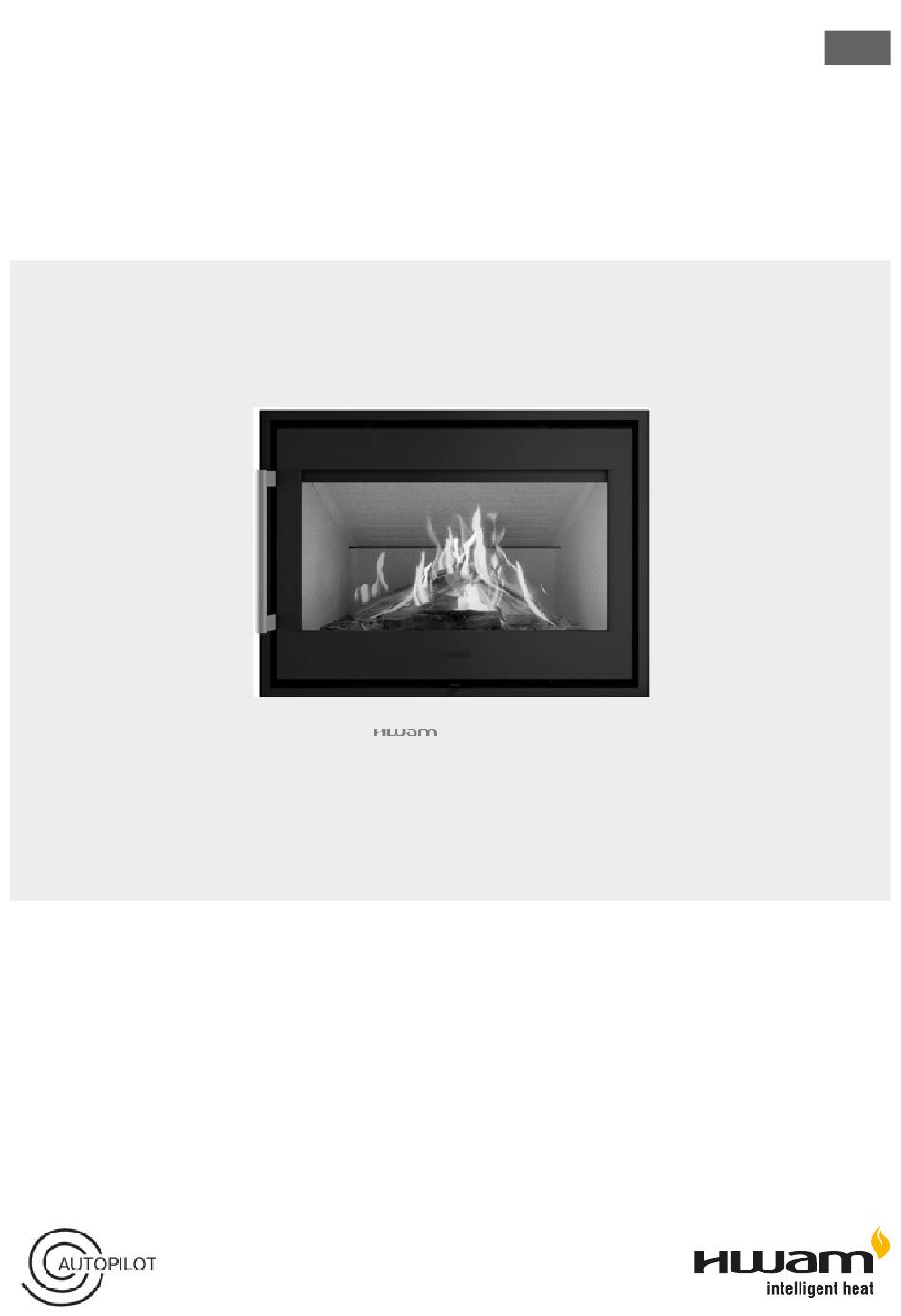

- Page 1 User manual I 40/55 01.06.2019 / 97-9692 www.hwam.com...
- Page 2 Clean Air Act requirements. The HWAM I 40/55 stoves detailed below have been recommended as suitable for use in smoke control areas when burning wood logs. The appliance has been fitted with a modified secondary air control to prevent closure of the air inlet below 53 %.
- Page 3 Wood for kindling a fire (finely chopped) 20-40 Chopped wood 20-40 Regulating the insert HWAM Autopilot is set to maximum when the air control lever is in the rightmost position and to minimum when the air control lever is in the leftmost position.
- Page 4 Firing Push the adjustment bar all the way to the right to set the HWAM Autopilot to maximum effect. Put split kindling, corresponding to two to three pieces of wood (about 2-2.5 kg), into the insert. When stacking the wood, never block the air slot that supplies tertiary air for the combustion.
- Page 5 n general aboUT Firing Chimney The chimney is the “motor” of the insert and it is crucial for the functioning of the woodburning insert. The chimney draft provides a partial vac- uum in the insert. This vacuum removes the smoke from the insert, sucks air through the dampers for the so-called glass pane rinse which keeps the glass free of soot, and sucks in air through both primary and secondary dampers for the combustion.
- Page 6 At least once every other year, the insert should receive a thorough, preventative service inspection. Among other things, the service inspection covers: • A thorough cleaning of the insert. • Check the spring in the HWAM Autopilot unit and replace if necessary. • Checking gaskets. Replace gaskets if they are not intact or are no longer soft.
- Page 7 • If the draught is too strong inside the chimney, it may be necessary to set the adjustment bar to minimum, i.e. to the left. If problems occur that you cannot fix yourself, please consult your wood-burning stove dealer. eClaraTion oF erFormanCe The DoP can be downloaded from our website via the following link: HWAM I 40/55 www.hwam.com/dop/i40-55...
