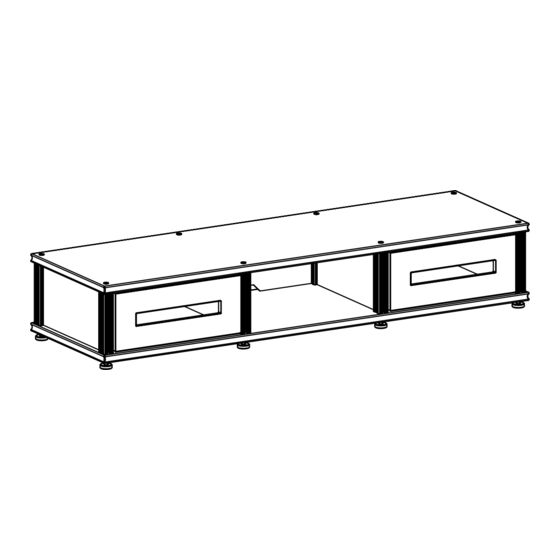

SYNERGY 131
Triple Assembly
Includes:
(1) Triple 10 Unit
(2) S10 Side Panels
(2) S10 Drop Down Doors
Limited Warranty
For five full years Salamander Designs Ltd will repair or replace, at our option, any product defective in materials or craftsmanship. Salamander Designs Ltd. will not be responsible for any damage to or
destruction of other equipment consequential to our equipment failure. Defective product must be given Return Authorization and is to be returned to the factory prepaid, in the original carton and packing
material. Any damage incurred in a shipment not in original packaging shall be the responsibility of the owner. Warranty repairs will be returned prepaid, via UPS within the continental U.S.A. only.
Salamander Designs Ltd. 800-535-5659 • www.SalamanderDesigns.com
BEFORE YOU BEGIN:
!
!

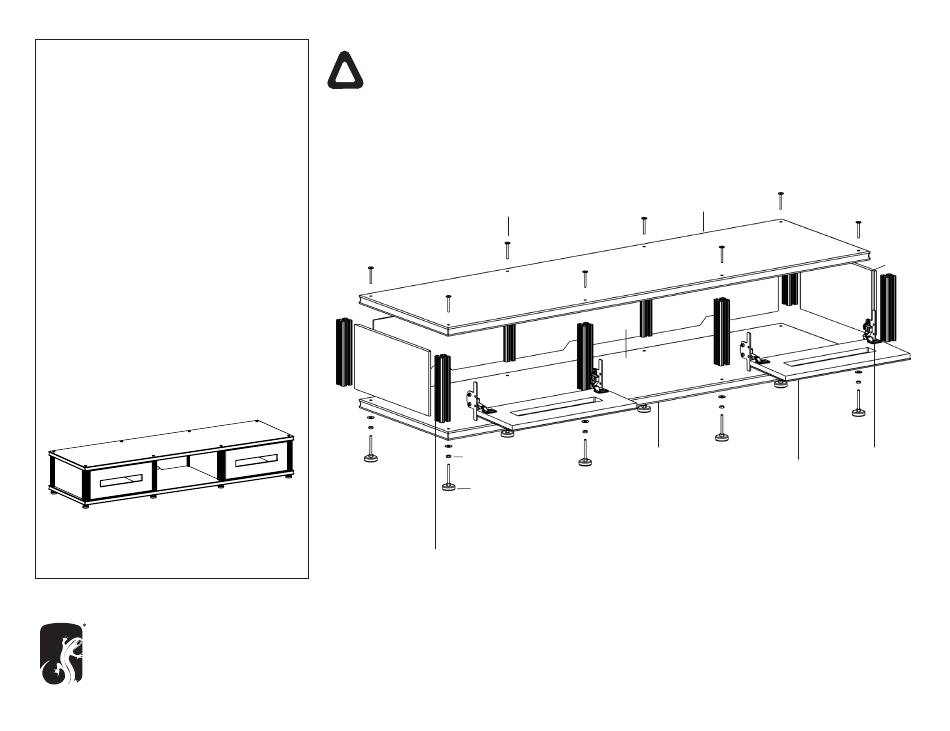

• Unpack all parts before beginning and refer to the drawing below.
• Shelf pegs and door hinges must slide into the channels of the post in the correct order.
They cannot be removed individually without disassembling the whole unit.
Joint Connector Bolt 300-540 (8)
Washer 300-470 (8)
Foot & Nut P-300-350 (8)
Aluminum Post (8)
Top Shelf (1)
Rear Panel (3)
Bottom Shelf (1)
©2024 Salamander Designs Ltd. ® Synergy System, Patented.
Sides (2)
Door
Door (2)
Hinge (4)
Doc No. 501-056/v3.24
131 -1 of 4
Advertisement
Related Manuals for Salamander Designs SYNERGY 131
Summary of Contents for Salamander Designs SYNERGY 131
- Page 1 Limited Warranty For five full years Salamander Designs Ltd will repair or replace, at our option, any product defective in materials or craftsmanship. Salamander Designs Ltd. will not be responsible for any damage to or destruction of other equipment consequential to our equipment failure. Defective product must be given Return Authorization and is to be returned to the factory prepaid, in the original carton and packing material.
- Page 2 Insert Rear Panels Connect Posts to Bottom Shelf WARNING: Tighten by screwing the leveler foot NOT the post. Carefully slide the three rear panels down center channel of rear posts. Be sure the posts are square to the bottom shelf to prevent any damage to rear panels. Square Post Square the post to the bottom shelf.
- Page 3 Attach Doors On each side of the bay the drop down door will be installed in, slide the double Align the double weld nut, adapter bracket, and provided 1/4-20 x 0.5” weld nut of the adapter plate assembly into the inner slot of the extrusions as shown. screws as shown above.
- Page 4 Attach Doors Assemble shelf peg loosely and slide down one of the same extrusions slots as the hinge brackets. At about 7” from the base tighten and secure the shelf peg. Apply the clear square rubber door pad to the outside of the shelf peg and verify the drop-down door rests on it in the closed position. Universal Shelf Peg 1/4-20 x 7/8”...
