Salamander Designs Chameleon Assembly Instructions

chameleon
A S S E M B LY I N S T R U C T I O N S
Congratulations on your purchase!
For any questions please call us at:
800.535.5659 / 860.313.0525 (9am-5pm EST)
Visit our website at: www.salamanderdesigns.com

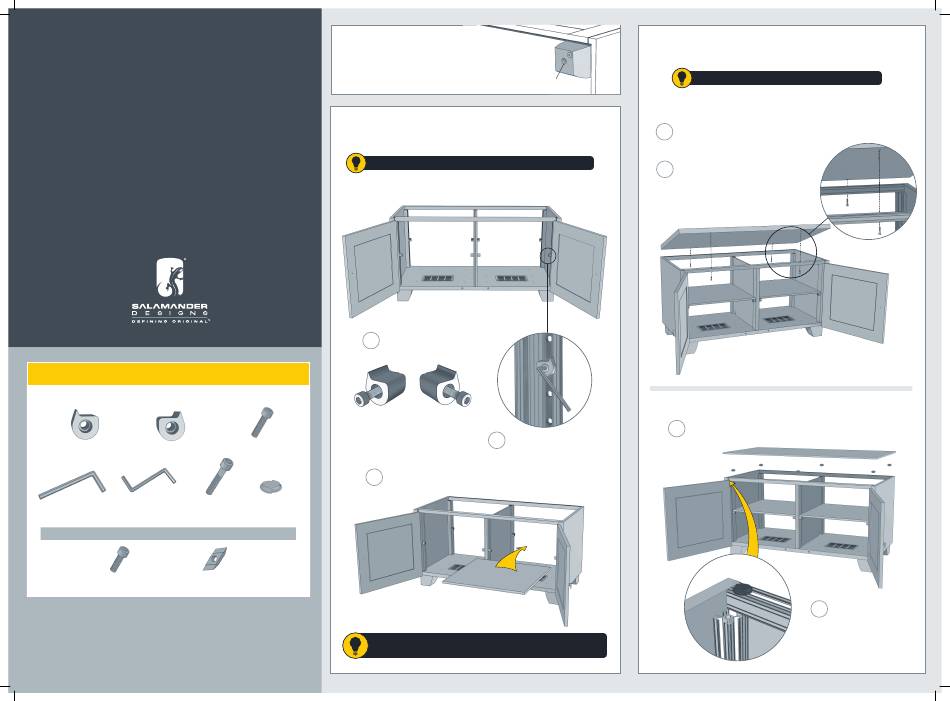

Chameleon Hardware
You will need a Phillips head screwdriver to assemble your Chameleon Cabinet.
Shelf Pegs "L"
Shelf Pegs "R"
300-840
300-830
Hex Key 4mm Socket Screw 1.25"
Hex Key 3/16''
400-170 303-520
400-060
(Wood Tops Only)
Optional: Infinitely Adjustable Shelf Kit (See Fine Tuning)
(PHK-2070)
Socket Screw 3/4" Drop-In Nut
(Use with Shelf Peg) (Use with Shelf Pegs)
300-465 300-565
LIMITED WARRANTY
For five full years Salamander Designs Ltd will repair or replace, at our option, any product defective in materials
or craftsmanship. Salamander Designs Ltd. will not be responsible for any damage to or destruction of other
equipment consequential to our equipment failure. Defective product must be given Return Authorization and
is to be returned to the factory prepaid, in the original carton and packing material. Any damage incurred in a
shipment not in original packaging shall be the responsibility of the owner. Warranty repairs will be returned
prepaid within the continental U.S.A. only.
© 2011 Salamander Designs Ltd.
1
Level Cabinet
Prior to installing components, it is important to level
the cabinet with the floor. Verify that all of the feet are
properly adjusted to support the cabinet evenly.
TM
2
Install Shelves
TIP:
For Infinitely Adjustable Shelves please skip ahead to "Fine Tuning & Tips."
A
Assemble shelf pegs with
socket screws (300-455).
L
Socket Screw 1"
(Use with Shelf Peg)
300-455
C
Remove plastic coating from shelves and place onto shelf pegs.
Rubber Pads
303-380
(Glass Tops Only)
At this point you may install accessories (IR Repeater Kit, Power
TIP:
Conditioner, Etc.) and place components.
Doc No. 501-500 / v 8.11
Leveler
R L
L
R
R
B
Affix shelf peg assembly
to post at desired position
and secure using hex key.
3
Place & Secure Top
TIP:
If you have a TV Mount, install it before securing the Top.
Wood Top
A
Align wood top squarely to the cabinet
frame with the holes closest to edge of
top, positioned to the rear of cabinet.
B
Fasten top to the frame using screws (303-520).
Glass Top
A
Place Rubber Pads (303-380) on the frame covering bolts as shown.
B
Place the glass top
squarely on the cabinet
with the Salamander Logo
positioned to the back/left
corner.
