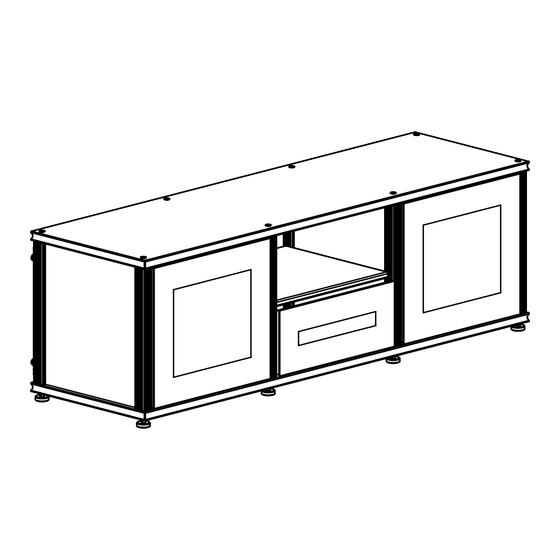

SYNERGY 233

Triple Assembly

Includes:

(1) Triple 20 Unit

(2) S20 Side Panels

(1) S10 Drop Down Door

(2) S20 Doors

(3) Adjustable Shelves

Limited Warranty

For five full years Salamander Designs Ltd will repair or replace, at our option, any product defective in materials or craftsmanship. Salamander Designs Ltd. will not be responsible for any damage to or destruction

of other equipment consequential to our equipment failure. Defective product must be given Return Authorization and is to be returned to the factory prepaid, in the original carton and packing material. Any dam-

age incurred in a shipment not in original packaging shall be the responsibility of the owner. Warranty repairs will be returned prepaid, via UPS within the continental U.S.A. only.

Salamander Designs Ltd. 800-535-5659 • www.SalamanderDesigns.com

BEFORE YOU BEGIN:

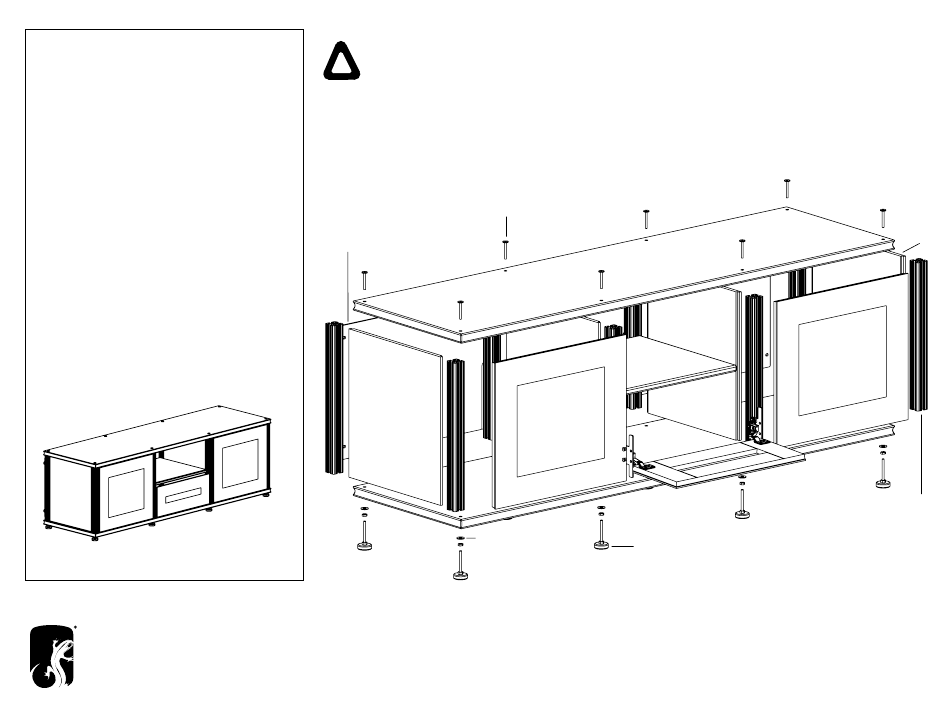

• Unpack all parts before beginning and refer to the drawing below.

• Shelf pegs and door hinges must slide into the channels of the post in the correct order.

They cannot be removed individually without disassembling the whole unit.

Joint Connector Bolt 300-540 (8)

Rear Panel (3)

Washer 300-470 (8)

Foot & Nut P-300-350 (8)

Sides (2)

Aluminum Post (8)

Doc No. 500-784/v4.24

233 - 1/5

Need help?

Do you have a question about the SYNERGY 233 and is the answer not in the manual?

Questions and answers

Summary of Contents for Salamander Designs SYNERGY 233

Page 1 Limited Warranty For five full years Salamander Designs Ltd will repair or replace, at our option, any product defective in materials or craftsmanship. Salamander Designs Ltd. will not be responsible for any damage to or destruction of other equipment consequential to our equipment failure. Defective product must be given Return Authorization and is to be returned to the factory prepaid, in the original carton and packing material. Any dam- age incurred in a shipment not in original packaging shall be the responsibility of the owner.
Page 2 Connect Posts to Bottom Shelf Add Shelf Pegs & Door Hinges WARNING: Tighten by screwing the leveler foot NOT the post. Shelf Pegs They are designed to cradle the shelf in place. Refer to drawing. Connect Post Square Post Insert Hinges & Add Shelf Pegs Square the post to the bottom shelf.
Page 3 Attach Doors On each side of the bay the drop down door will be installed in, slide the double Align the double weld nut, adapter bracket, and provided 1/4-20 x 0.5” weld nut of the adapter plate assembly into the inner slot of the extrusions as shown. screws as shown above.
Page 4 Attach Doors Assemble shelf peg loosely and slide down one of the same extrusions slots as the hinge brackets. At about 7” from the base tighten and secure the shelf peg. Apply the clear square rubber door pad to the outside of the shelf peg and verify the drop-down door rests on it in the closed position. Universal Shelf Peg 1/4-20 x 7/8”...
Page 5 Attach Doors Note: The hinge can be separated by pulling the black tab and pulling apart the hinge from the hinge base. Attach Hinges to Door Frames Separated hinges snap back together. Insert the hinges into the corresponding holes on the doors.
Page 6: Final Assembly
Attach Rear Panels Final Assembly Placing & Adjusting Shelves Insert Hardware Place shelves from the bottom up. Angle the Combine the 1” threaded studs with the flat nuts. shelf in between the front post and set on top Slide 2 sets of hardware down the two outside of shelf pegs.
