chameleon

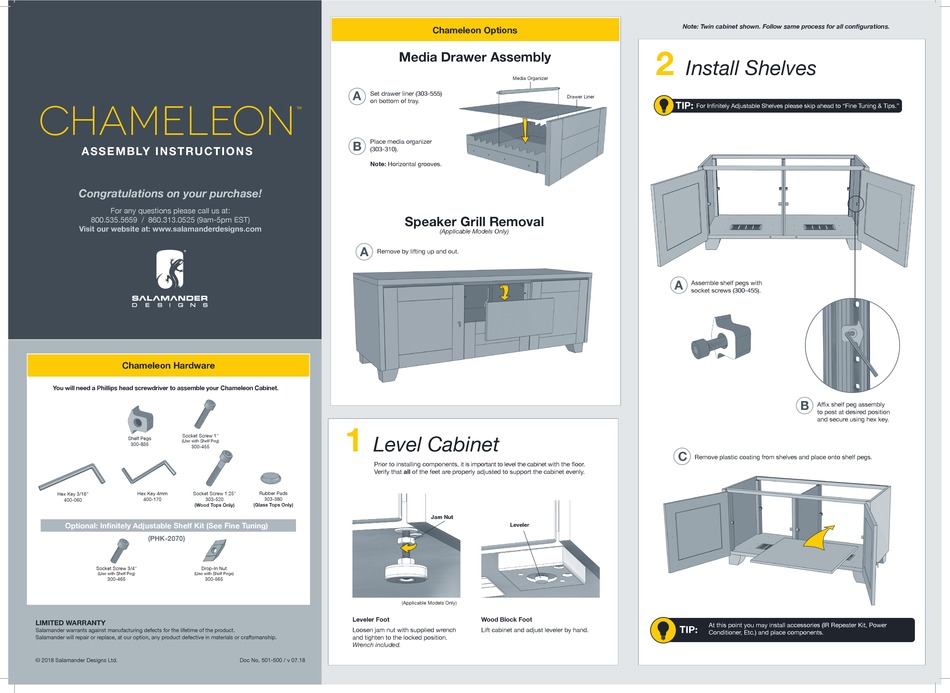

A S S E M B LY I N S T R U C T I O N S
Congratulations on your purchase!
For any questions please call us at:
800.535.5659 / 860.313.0525 (9am-5pm EST)
Visit our website at: www.salamanderdesigns.com
Chameleon Hardware
You will need a Phillips head screwdriver to assemble your Chameleon Cabinet.
Socket Screw 1"
Shelf Pegs
(Use with Shelf Peg)
300-835
300-455
Hex Key 3/16''
Hex Key 4mm
Socket Screw 1.25"
303-520
400-060
400-170
(Wood Tops Only)
Optional: Infinitely Adjustable Shelf Kit (See Fine Tuning)
(PHK-2070)
Socket Screw 3/4"
Drop-In Nut
(Use with Shelf Peg)
(Use with Shelf Pegs)
300-465
300-565
LIMITED WARRANTY
Salamander warrants against manufacturing defects for the lifetime of the product.
Salamander will repair or replace, at our option, any product defective in materials or craftsmanship.
© 2018 Salamander Designs Ltd.
Media Drawer Assembly
A
Set drawer liner (303-555)
on bottom of tray.
TM
B
Place media organizer
(303-310).
Note: Horizontal grooves.
Speaker Grill Removal
A
Remove by lifting up and out.
1
Level Cabinet
Prior to installing components, it is important to level the cabinet with the floor.
Verify that all of the feet are properly adjusted to support the cabinet evenly.
Rubber Pads
303-380
(Glass Tops Only)
(Applicable Models Only)
Leveler Foot
Loosen jam nut with supplied wrench
and tighten to the locked position.
Wrench included.
Doc No. 501-500 / v 07.18
Chameleon Options
Media Organizer
Drawer Liner
(Applicable Models Only)
Jam Nut
Leveler
Wood Block Foot
Lift cabinet and adjust leveler by hand.
Note: Twin cabinet shown. Follow same process for all configurations.
2
Install Shelves
TIP:
For Infinitely Adjustable Shelves please skip ahead to "Fine Tuning & Tips."
A
Assemble shelf pegs with
socket screws (300-455).
B
Affix shelf peg assembly
to post at desired position
and secure using hex key.
C
Remove plastic coating from shelves and place onto shelf pegs.
At this point you may install accessories (IR Repeater Kit, Power
TIP:
Conditioner, Etc.) and place components.
