Salamander Designs SYNERGY 339 Assembly Manual

Triple assembly
Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
SYNERGY 339
Triple Assembly
Includes:
(1) Triple 30 Unit
(2) S30 Si de Panels
(3) S20 Doors
(3) Adjustable Shelves
(1) Triple-Width Shelf

Limited Warranty

Five full years Salamander Designs Ltd will repair or replace, at our option, any product defective in materials or craftsmanship. Salamander Designs Ltd. will not be responsible for any damage to or destruction of other
equipment consequential to our equipment failure. Defective product must be given Return Authorization and is to be returned to the factory prepaid, in the original carton and packing material. Any damage incurred in
a shipment not in original packaging shall be the responsibility of the owner. Warranty repairs will be returned prepaid, via UPS within the continental U.S.A. only.
Salamander Designs Ltd.
•
800-535-5659

BEFORE YOU BEGIN:

!
!
• Unpack all parts and read instructions carefully before beginning.
• Shelf pegs and door hinges must slide into the channels of the post in the correct order.
They cannot be removed individually without disassembly.
1

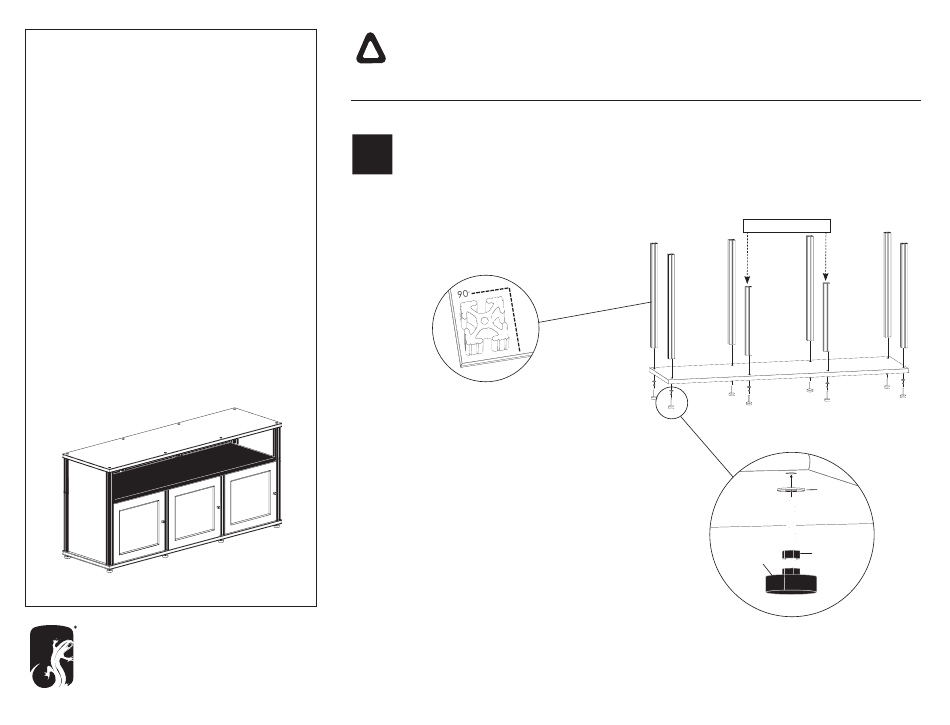

Connect Posts to Bottom Shelf
A
.
Square Post
Square the post to the bottom shelf.
B
.
Connect Post
Screw foot with metal washer through bottom
shelf and into the end of each extruded post.
Hand tighten fully and use wrench to tighten
nut onto underside of shelf.
WARNING: Tighten by screwing the leveler foot NOT the post.
•
www.SalamanderDesigns.com
©2006 Salamander Designs Ltd.
Leveler Foot
Synergy System, Patented.
TM
Short Post
Washer
Hex Nut
Doc No. 501-095/v6.18
339 -1/5
