3D LabPrint Douglas DC-3 / C-47 Dakota User Manual page 15

5. Assembly of printed parts

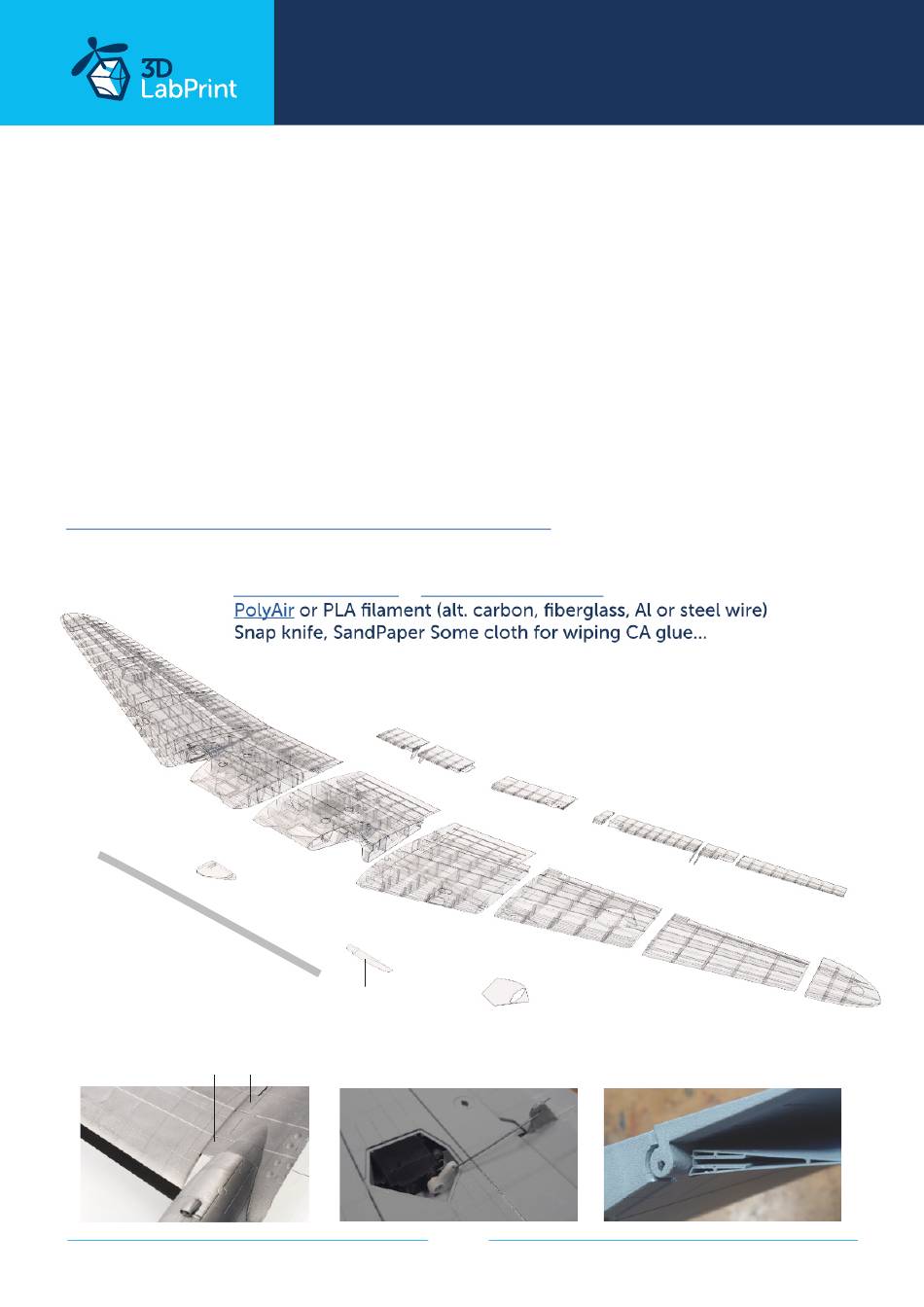

5.1 Wing assembly Douglas DC-3 / C-47 Dakota
The wing is designed as a centroplane with sliding ends. A central carbon tube spar runs
through the entire centroplane including motor and landing gear pods. Glue wing parts L1
and R1 together. The new 3DLabPrint lock system will help you. Glue wing parts L2-L5
together. Repeat for the right side. Press in and glue a piece of PolyAir, PLA, PETG or 1.5 mm
carbon rod into the top and bottom openning to create a wing spar and improve the rigidity
of the wing.
On a flat surface glue the ailerons L1-L4 and repeat for the right side. Use a filament or
suitable 0,8mm - 1,5mm carbon rod as a hinge for the ailerons. Just slide it in, there's no need
to glue the hinge for easy aileron or servo replacement. Wall thickness should be 0.55-0.67
Video guide Douglas DC-3 / C-47 Dakota wing assembly
you will need:
R wing
completed
carbon tube
10 x 1 x 696 mm
secure screws
10 x 1 x 680 mm carbon tube
CA Glue - medium +
PolyAir or PLA filament (alt. carbon, fiberglass, Al or steel wire)
Snap knife, SandPaper Some cloth for wiping CA glue...
4,0g/0.14oz LW
wing L1
42g/1.48oz LW
wing L2
33,5g/1.18oz LW
carbon tube ends
... print your plane | www.3DLabPrint.com
Activator for CA Glue
flap L1
flap L2
4,7g/0.17oz LW
flap L3
6,6g/0.23oz LW
wing L3
17,9g/0.63oz LW
servo bay
15
page
aileron L1
3,6g/0.13oz LW
aileron L2
6,0g/0.21oz LW
aileron L3
2,0g/0.07oz LW
aileron L4
4,1g/0.14oz LW
wing L4
10,3g/0.36oz LW
wing L5
3,6g/0.13oz LW
