EX-1580SHMVS
3. Struttura, Attacchi & Impostazione Ponticelli
3.2 Attacchi
USB 3.2 Gen 1 Type-B:
GND_DRAIN
StdB_SSTX +
StdB_SSTX -
D-
D+

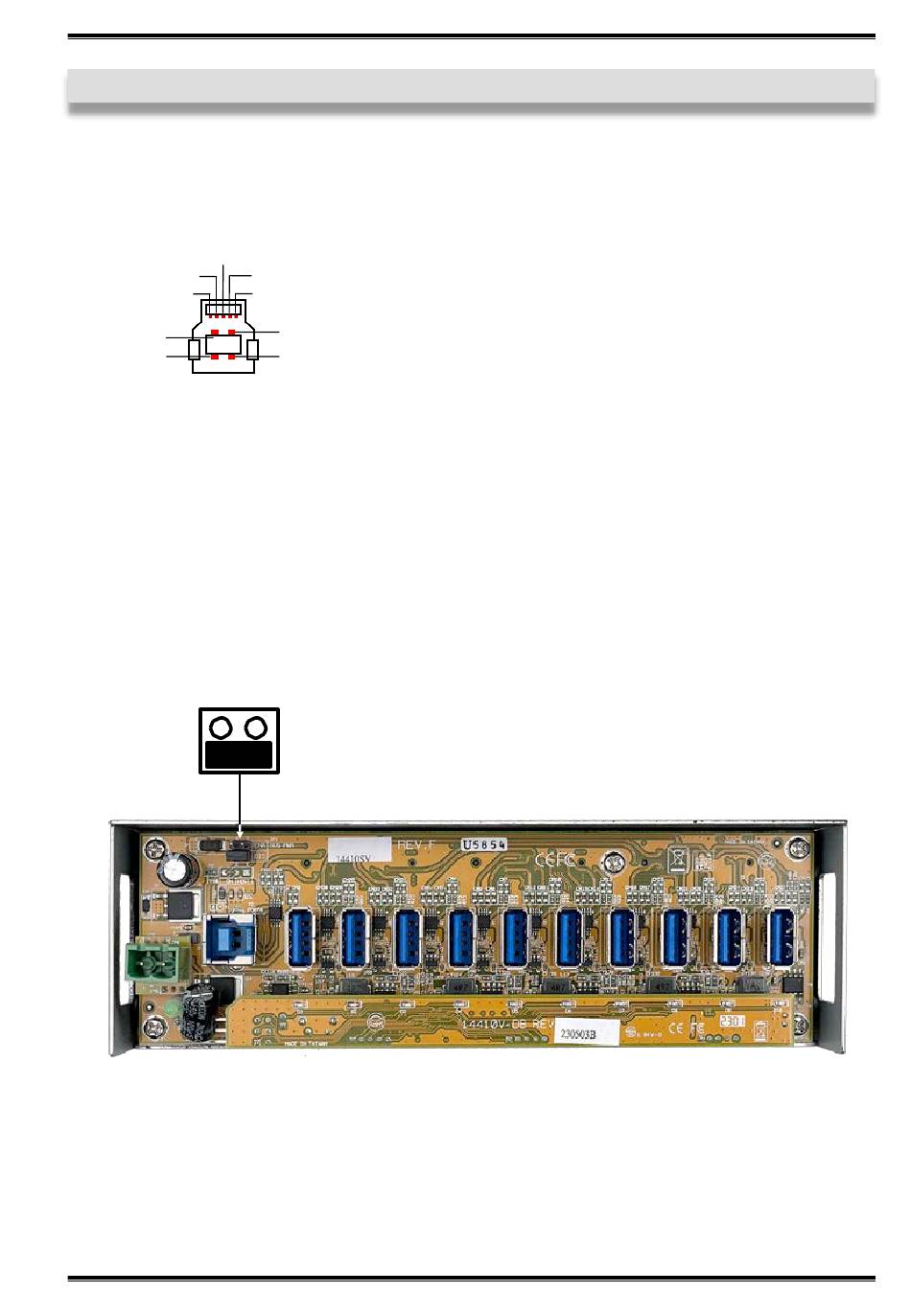

3.3 Impostazione Ponticelli
L'EX-1580SHMVS viene fornito con l'impostazione dell'alimentazione dal Bus USB. Esiste tuttavia
la possibilità di togliere la tensione dell'EX-1580SHMVS sulla linea dati verso il PC, cioè sulla
presa USB Type-B. Per fare ciò, prima devi aprire l'alloggiamento con le otto viti sui lati. Ora
bisogna impostare il jumper JP1 da ENA (Abilita) a DIS (Disabilita). Vedere la figura seguente.
JP1
DIS
ENA
© Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved
StdB_SSTX+
StdB_SSTX -
VBus
GND
Attenzione!
Non inserire mai la spina al
contrario né forzarla.
5
Italiano
