Summary of Contents for CAB SQ 3200

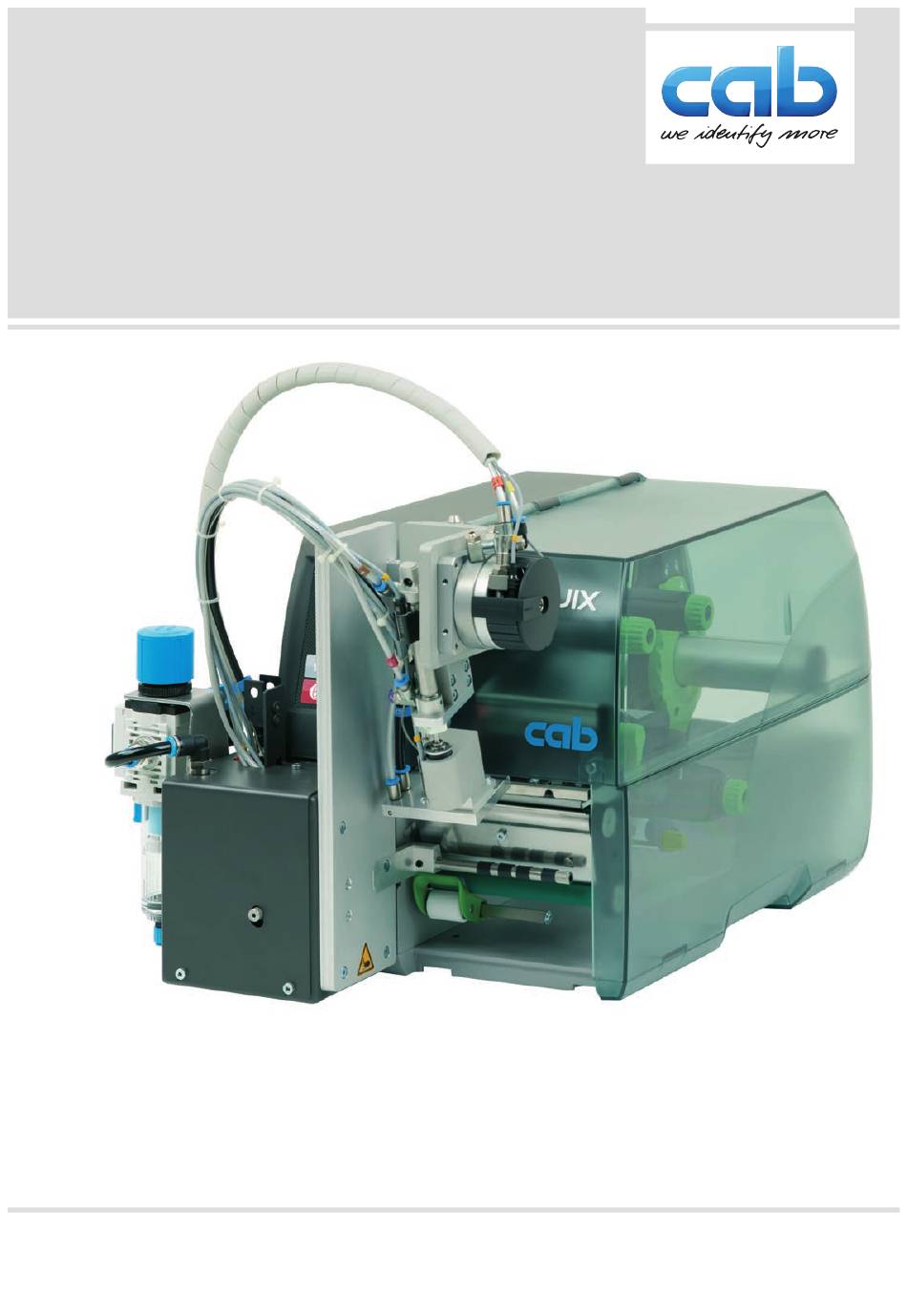

- Page 1 Assembly Instructions Swing Applicator SQ 3200 MADE IN GERMANY...
- Page 2 Edition: 06/2024 - Part No.9004059 Copyright This documentation as well as translation hereof are property of cab Produkttechnik GmbH and Co. KG. The replication, conversion, duplication or divulgement of the whole manual or parts of it for other intentions than its original intended purpose demand the previous written authorization by cab.
-
Page 3: Table Of Contents
Table of Contents Introduction ............................4 Instructions ............................... 4 Intended Use ............................4 Safety Instructions ............................ 4 Safety Markings ............................5 Environment ............................. 5 Product Description ..........................6 Important Features ........................... 6 Technical Data ............................6 Device Overview ............................7 Contents of Delivery .......................... -
Page 4: Introduction
• The device is designed to use on a cab printer of the SQUIX series. Any other use or use going beyond this shall be regarded as improper use. The manufacturer/supplier shall not be liable for damage resulting from unauthorized use;... -
Page 5: Safety Markings
Introduction This applies especially for the zone, where the pad is moved between the starting and the labelling position. During operation do not reach into that zone and keep long hair, loose clothes, and jewelry distant. Before any manipulations in those areas, close the shutoff valve. •... -
Page 6: Product Description
• For operation within a system the I/O interface of the printer can be used. Technical Data Applicator SQ 3200 SQUIX 2, SQUIX 4.3, SQUIX 4, Operated with SQUIX 4.3 M, SQUIX 4 M Rotary cylinder 45° - 95°... -
Page 7: Device Overview
Product Description Device Overview Front view Rear view Fig. 2 Device overview - front view Fig. 3 Device overview rear view 1 Manometer on the compressed air maintenance unit 12 Alignment pins 2 Setting valve on the compressed air maintenance 13 SUB-D 9 connection to the printer unit 14 Throttle valve vacuum... -
Page 8: Contents Of Delivery
Product Description Contents of Delivery 1 Applicator 2 Blowtube (as ordered) 3 Cylinder screws (within the scope of the delivery) 4 Pad (as ordered) 5 Cylinder screws for fastening the transport safety 6 Transport safety 7 Documentation Fig. 4 Contents of delivery Note! Keep the original packaging for future transport or incase the unit needs to be returned. -
Page 9: Installation
Installation Transportation Protection The transportation protection of the applicator SQ 3200 fixes the movable parts in place to avoid potential harm to any persons and damage to the system and its surroundings. Warning! Before mounting, dismounting, servicing or adjusting disconnect the printer and applicator from any power and compressed air source to prevent any harm or damage by uncontrolled movement of parts of the applicator. -
Page 10: Mounting The Applicator To The Printer
Installation Mounting the Applicator to the Printer Attention! Disconnect the printer from the power supply before mounting the applicator! Ensure the printer is in a stable secure position! Connect the compressed air only after mounting the applicator to the printer! Fig. -
Page 11: Operation
Operation Test Mode without a Print Job Fig. 8 Display By alternating between buttons on the display it is possible to simulate the labeling process without an active printing job. Push button This causes the feed of an empty label. Simultaneously the vacuum of the pad as well as the supporting air are activated. -
Page 12: Standard Operation
Operation Standard Operation Before starting the labeling process ensure that all connections are securely established. Load printing and labeling material. Ensure that the locking system is closed. „6.1 Inserting Materials“. Open the compressed air shut-off valve. Attention! ... -
Page 13: Applicator Parameters In Programming
Operation Applicator parameters in programming O [Ax=y] - commands O - print options A - applicator parameter The applicator parameters are only available if an applicator is connected. x parameter type O [A0=y] : Support delay on (0-2500ms) O [A1=y] : Support delay off (0-2500ms) O [A2=y] : Start delay (0-2500ms) O [A3=y] : Lock time (0-5000ms) O [A4=y] : Blow time (0-2500ms) -
Page 14: Error Messages
Error Messages Error Messages of the Printer For detailed information about printer errors (e.g. 'Paper out', 'Ribbon out', etc.) Check the operator's manual of the printer. Error treatment: Clearing the error results. Press the feed key to synchronize the label feed, remove the left over labels manually. ... - Page 15 Error Messages Error Treatment: Clear the error state. In order to clear the error state press continue, repeat or cancel. Continue with the next label in the printing queue. Repeat the print of the label causing the error. Only applicable with error Vac. plate empty. Cancel the current print job.
-
Page 16: Licences
Annex II to Directive 2011/65/EU of the European Parliament and of the Council as regards the list of restricted substances Signed for, and on behalf of the Manufacturer Karlsruhe, 20.03.2024 cab Produkttechnik GmbH & Co KG Wilhelm-Schickard-Str. 14 Klaus Bardutzky D-76131 Karlsruhe Managing Director... -
Page 17: Eu Declaration Of Incorporation
Marcel Michalski Am Unterwege 18/20 99610 Sömmerda Signed for, and on behalf of the Manufacturer Karlsruhe, 20.03.2024 cab Produkttechnik GmbH & Co KG Wilhelm-Schickard-Str. 14 Klaus Bardutzky D-76131 Karlsruhe Managing Director The product must not be put into service until the final machinery into which it is to be incorporated has been declared in conformity with the provisions of the Directive on machinery.
