Assa Abloy 5300LN Grade 2 Installation Instructions

5300LN Grade 2 or 4700LN Grade 1
Cylindrical Lever Locksets
Installation Instructions
IMPORTANT:
The accuracy of the door preparation is critical for the
proper functioning and security of this lever handle lock. Misalignment can
cause premature wear and tear and a lessening of security.
Tools Required
• 2-1/8" (54mm) hole saw •
• 1" (26mm) boring bit •
• 5/16" (8mm) drill bit •
• 7/64" (2.5mm) drill bit •

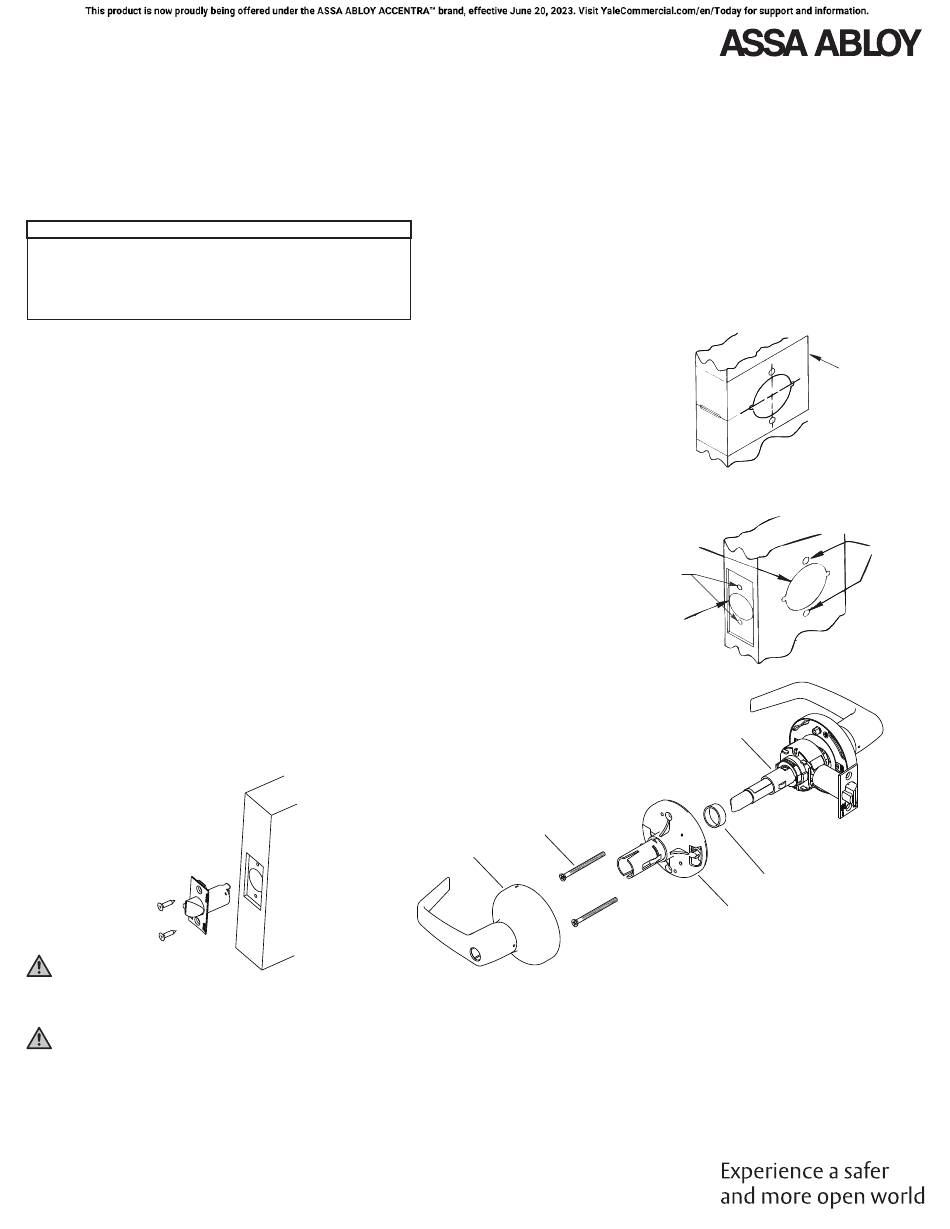

1. Mark door.
Mark horizontal line across edge of door for centerline of lock at desired installation height. Fold
template over edge of door, centering on horizontal line. Mark centers of holes at proper backset. For
beveled and square edge doors, mark both sides of the door.
Note: Be sure to verify backset before marking & drilling door.
2. Drill door.
A. Drill 2-1/8" (54mm) dia. hole thru the door. Cut notches as shown on template. See note. (Except
Dummy Trim)
B. Drill 1" (26mm) dia. hole in edge of door. Mortise for latch front 1-1/8" (29mm) wide x 2-1/4" (57mm)
high x 5/32" (4mm) deep. (Except Dummy Trim)
C. Drill two (2) 5/16" (8mm) dia. holes thru door. See note.
D. Drill pilot holes for latch screws. 7/64" (2.5mm) dia. (Except Dummy Trim).
Note: To avoid splintering wood doors, drill holes (A) and (C) from both sides of the door.
3. Install latch
Insert latch in door. (Be sure bevel edge
of bolt faces strike plate.) Attach with
two screws supplied.
WARNING
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65warnings.ca.gov.
WARNING
Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening,
and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific situation. When
retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening, please consult with a
code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
1-855-557-5078 • www.assaabloy.com
Copyright © 2016, 2023, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
Chisel & hammer
#2 phillips screw driver
Handle removal tool (supplied)
3/8" or 1/2" drill
4. Unpack lock
Inside Lever
Attention Installer
Installation of cylindrical locks and latches must be through bolted in all doors. If
installation instructions are not followed this may result in damage to the lock and
void the factory warranty. Any retrofit or other field modification to a fire rated
opening can potentially impact the fire rating of the opening, and Yale Locks &
Hardware makes no representations or warranties concerning what such impact
may be in any specific situation. When retrofitting any portion of an existing fire
rated opening, or specifying and installing a new fire-rated opening, please consult
with a code specialist or local code official (Authority Having Jurisdiction) to ensure
compliance with all applicable codes and ratings.
Through
Bolts
Handle
A
D
B
Outside Assembly
(stays assembled)
Bushing
Inside Rose
Support
Assembly
Door
Marker
C
80-9150-0060-010 01/24
