- Page 1 AIG-302 Series Quick Installation Guide Version 1.0, April 2024 Technical Support Contact Information www.moxa.com/support 2024 Moxa Inc. All rights reserved. P/N: 1802003022010 *1802003022010*...
-
Page 2: Package Checklist

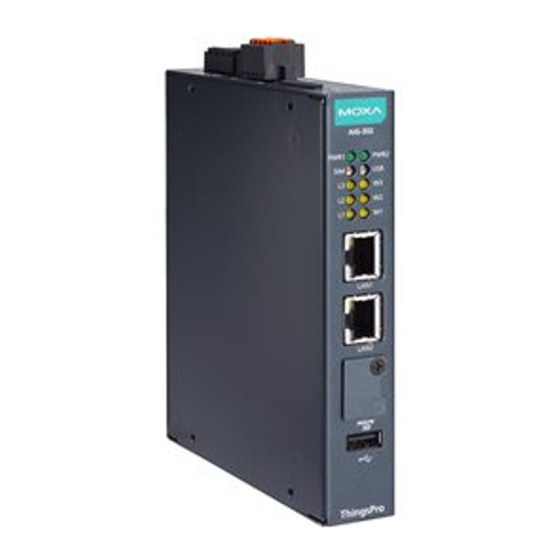

The console cable is not included in the package; you need to purchase it separately. Notify your sales representative if any of the above items are missing or damaged. Panel Views The following figures show the panel layouts of the AIG-302 Series: AIG-302-T-AZU-LX Top Panel Front Panel... - Page 3 Bottom Panel AIG-302 US, EU, and AP Models Top Panel Front Panel Bottom Panel View - 3 -...
-
Page 4: Mounting Instructions
LED Indicators LED Name Status Function PWR1/PWR2 Green Power is on No power is supplied Green SIM2 in use Yellow SIM1 in use Green/Yellow Green: System is operating normally Yellow: System is initializing and running the initial boot-up process L1/L2/L3 Yellow Cellular signal strength L1+L2+L3: Strong... -
Page 5: Wiring Requirements
Wall Mounting (optional) The device can be mounted on to a wall using a wall-mounting kit. The optional wall-mounting kit should be purchased separately. Follow these steps to mount the device on to a wall: Step 1 Step 2 Use four screws to fasten the Use another four screws to mount wall-mounting brackets on the the device on to a wall or in a... -
Page 6: Grounding Requirements
Grounding Requirements There is a grounding connector located on the top panel of the device. Connect it to an appropriate grounded metal surface. Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Connecting the Power Supply Connect the power jack (in the package) to the DC terminal block (located on the top panel), and then connect the power... -
Page 7: Communication Connections
Wiring the I/Os There are four digital inputs and four digital outputs on the top panel. Refer to the figure on the left for detailed pin definitions. Use wires with 16 to 28 AWG wire size to connect to DI, DO, and GND. The exposed conductor wire length should be 7-8 mm and the max. - Page 8 Inserting the microSD Card The device comes with a microSD slot for storage expansion. The microSD slot is located at the lower part on the front panel. To install the card, remove the screw and the protection cover to access the slot and insert the microSD card into the slot.
-
Page 9: Installing The Wi-Fi Module
The Wi-Fi module is not included in the package, you need to purchase separately. The Wi-Fi module package includes the following items. Follow these steps to install the Wi-Fi module for the AIG-302 Series. 1. Remove the side cover of the AIG-302 to expose the Wi-Fi module socket. - Page 10 2. Remove the two silver screws on the socket. 3. Install the Wi-Fi module in the socket and fasten two black screws on the module. Also, fasten the two bronze screws on the board. 4. Remove the plastic protection covers on the antenna connectors. 5.
-
Page 11: Connecting The Device To A Pc
NOTE The optional Wi-Fi wireless module is not included in the product package and must be purchased separately. Connecting the Device to a PC You can use a PC to access the web console of the AIG-302 Series via LAN 2 by https://192.168.4.100:8443. Default Username : admin Password: admin@123 NOTE For security reasons the console port is disabled by default. -
Page 12: Product Specifications
Product Specifications Input Current 1 A @ 12 VDC Input Voltage 12 to 48 VDC Power Consumption 12 W Operating • -40 to 70°C (-40 to 158°F) (AIG-302-T-US- Temperature AZU-LX, AIG-302-T-EU-AZU-LX, AIG-302- T-AP-AZU-LX) • -40 to 85°C (-40 to 185°F) (AIG-302-T- AZU-LX) Storage Temperature -40 to 85°C (-40 to 185°F) - Page 13 WARNING Explosion Hazard Do not disconnect equipment while the circuit is live or unless the area is known to be free of ignitable concentrations. WARNING Explosion Hazard External connections (console port) should not be used in hazardous locations. WARNING Antennas intended for use in Class I Division 2 hazardous locations must be installed within the end-user enclosure.
-
Page 14: Bsmi (Taiwan)
NCC Statement 減少電磁波影響，請妥適使用。 電波功率密度 MPE 標準值為：0.45 mW/cm²，送測產品實測值為：0.163 mW/cm²，建議使用時設備天線至少距離人體 20 公分。 BSMI Taiwan 限用物質含有情況標示聲明書 Declaration of the Presence Condition of the Restricted Substances Marking 型號（型式）: AIG-302-T-AZU-LX 設備名稱: 工業物聯網閘道器 Equipment name Type designation (Type) 限用物質及其化學符號 Restricted substances and its chemical symbols 六價鉻 多溴聯苯...
