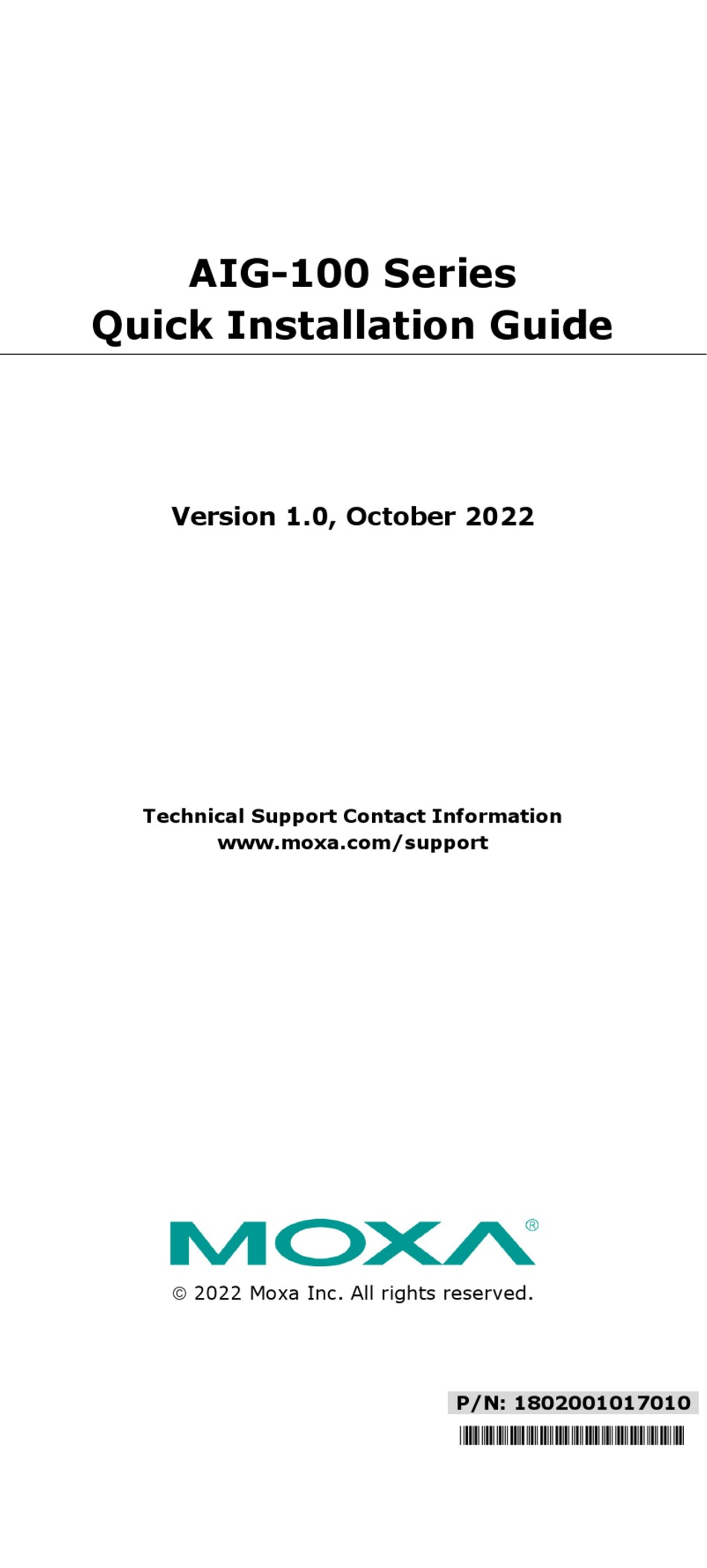

- Page 1 AIG-100 Series Quick Installation Guide Version 1.0, October 2022 Technical Support Contact Information www.moxa.com/support 2022 Moxa Inc. All rights reserved. P/N: 1802001017010 *1802001017010*...

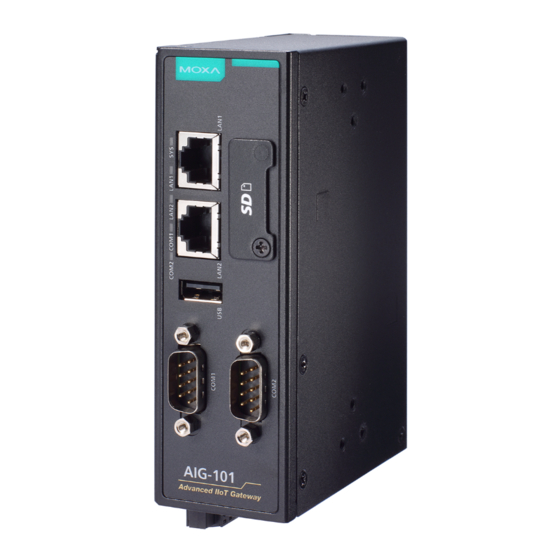

- Page 2 Overview Moxa AIG-100 Series can be used as smart edge gateways for data preprocessing and transmission. The AIG-100 Series focuses on IIoT- related energy applications and supports various LTE bands and protocols. Package Checklist Before installing the AIG-100, verify that the package contains the following items: •...
- Page 3 AIG-101-T-AP/EU/US LED Indicators LED Name Status Function Green Power is ON Power is OFF Green The gateway will reset to the default (blinking) configuration LAN1/LAN2 Green 10/100 Mbps Ethernet mode Ethernet port is not active COM1/COM2 Orange Serial port is transmitting or receiving data Green Cellular connection has been established NOTE:...
- Page 4 Installing the AIG-100 The AIG-100 can be mounted on to a DIN rail or on to a wall. The DIN- rail mounting kit is attached by default. To order a wall-mounting kit, contact a Moxa sales representative. DIN-rail Mounting To mount the AIG-100 on to a DIN rail, do the following: 1.
- Page 5 must be purchased separately. Refer to the detailed specifications below: Head Type: flat Head Diameter >5.2 mm Length >6 mm Thread Size: M3 x 0.5 mm Connector Description Power Terminal Block A person trained for the job should install the wiring for the input terminal block.
- Page 6 NOTE If using a Class I adapter, the power cord must be connected to a socket-outlet with an earthing connection. Ethernet Port The 10/100 Mbps Ethernet port uses the RJ45 connector. The pin assignment of the port is as below: Signal –...
- Page 7 You must connect the antenna to the SMA connector before you can use the cellular function. The C1 and C2 connectors are interfaces to the cellular module. For additional details, refer to the AIG-100 Series datasheet. The AIG-100-T-AP/EU/US models come with a built-in GPS module. You must connect the antenna to the SMA connector with the GPS mark before you can use the GPS function.
