- Page 1 Mechanical Silicone Roller 90E35 Instruction Manual...
-
Page 2: Table Of Contents
Contents Transport, storage and installation ..............4 Transport ..................... 4 I.II Storage ....................4 I.III Installation ................... 4 Introduction ....................5 General Information ................5 Safety Instructions ..................6 – 8 General Safety Instructions ..............6 – 7 Sicherheitsvorrichtungen ..............7 Residual Risk ..................7 References ................... - Page 3 Intended use ....................12 Care and maintenance and service .............. 13 Maintenance of the product .............. 13 Return consignment ................13 Disposal ...................... 13 Legal Warranty and Liability ................. 14 Declaration of Conformity ................15 3/16...
-
Page 4: I Transport, Storage And Installation
I Transport, storage and installation I.I Transport ATTENTION! Avoid sliding or tilting this product. Damage to the product could occur. ATTENTION! Risk of injury by lifting heavy loads. ATTENTION! Transport the product in its original packaging only. Secure the product with transport straps for transport. Do NOT lift or transport the product using adjustment handle or crank handle. -
Page 5: Introduction
1 Introduction 1.1 General Information This instruction manual is intended to provide the user and all authorized persons with important information about the safe use and maintenance of the product. The instructions are a key part of the the product and must be properly stored at the product for the entire lifetime of the equipment. -
Page 6: Safety Instructions
2 Safety Instructions 2.1 General Safety Instructions Reading these instructions before performing any work on the product is important. Regardless of the information in these instructions, compliance with the safety regulations of the country where the product is operated is mandatory. The requirements for the deployment of qualified personnel for various maintenance, operating and installation tasks must be observed. -
Page 7: Sicherheitsvorrichtungen
• Move the product only as described in chapter „transport“. Streifeneder ortho.production GmbH assumes no liability for damage to property or personal injury resulting from the improper use of the product or failure to properly observe occupational safety regulations. 2.2 Sicherheitsvorrichtungen... -
Page 8: References
Keep your fingers away form rotating or fast moving parts. Streifeneder ortho.production GmbH accepts no liability for personal injury or damage to property due to failure to observe rules and regulations indicated by the pictograms, or if the pictograms are not in proper condition. -
Page 9: Intended Use
The materials are feed into the product and extracted from the product by hand. Drive of the product is also by hand. 4 Technical data and equipment 90E35 Dimensions W x D x H: 600 x 350 x 310 mm... -
Page 10: Transport, Storage And Installation
5.1 Lieferumfang Quantity Description Dimension Weight (W x D x H) 1 pc. 90E35 Mechanical Silicone Roller 600 x 350 x 310 mm 64 kg 5.2 Transport ATTENTION! Avoid sliding or tilting the product. Damage to the product could occur. -
Page 11: Installation
6 Installation Please pay attention before you start running the product. The product may only be installed in areas that, normally speaking, are suitable for orthopaedic purposes. That is to say a dry, dust free, well lit area with a maximum temperature of 25 °C. The product must be positioned on a level table. Always ensure there is plenty of space around the product and remove all obstructions that may pose a trip hazard. -
Page 12: Commissioning

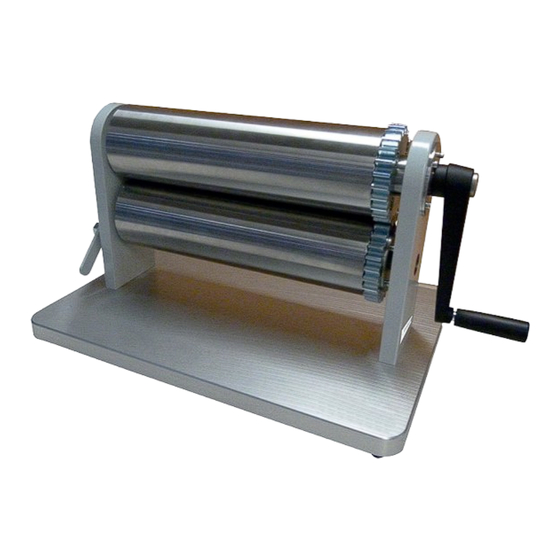

7 Commissioning 7.1 Description and Function The product is entirely operated manually. The rollers are driven by means of the crank handle (1). The roller distance is increased or reduced by the adjustment handle (2) at the left side of the product. 8 Intended use The purpose of the product is to knead, mix and colour-match silicones that are used for making prostheses. -
Page 13: Care And Maintenance And Service
9 Care and maintenance and service 9.1 Maintenance of the product • The product does not require a great deal of maintenance. • We would also recommend that an annual inspection is carried out on moving parts. ATTENTION! Make sure that the product is not in operation when cleaning the rollers. For cleaning, set the roller distance to the smallest level by means of the adjustment handle (2). -
Page 14: Legal Warranty And Liability
Legal Warranty and Liability For detailed information about our „Legal Warranty and Liability“ please see our general terms of sales and policies at: www.streifeneder.com/op/general-terms-and-conditions. 14/16... -
Page 15: Declaration Of Conformity
Streifeneder ortho.production GmbH Moosfeldstraße 10 82275 Emmering/Germany declares, that the machine 90E35 Mechanical Silicone Roller is in accordance with the directives mentioned before, including any amendments that may have been done in the meantime. The following harmonised directives have been applied: DIN EN ISO 12100:2011-03 Safety of machinery - General principles for design -... - Page 16 © copyright Streifeneder ortho.production 90E35/GGB V001 2023-05 Streifeneder ortho.production GmbH Moosfeldstraße 10 · 82275 Emmering/Germany T +49 8141 6106-0 · F +49 8141 6106-50 office@streifeneder.de · www.streifeneder.de/op...
