LifeFitness Lifecycle Assembly Instructions Manual

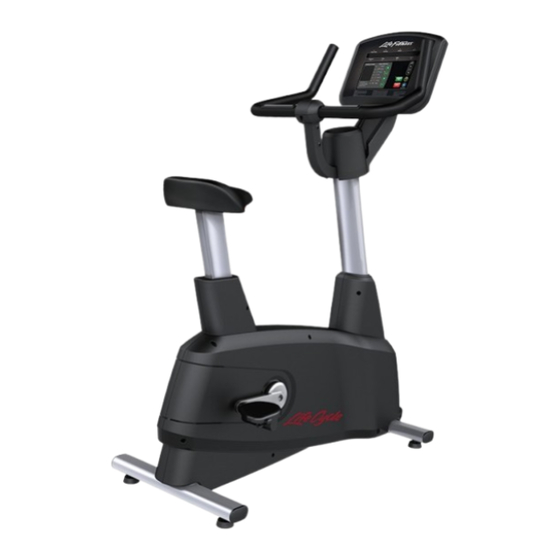

Activate upright exercise bike
Hide thumbs
Also See for Lifecycle:
- Owner's manual (42 pages) ,
- Assembly instructions manual (117 pages)
Subscribe to Our Youtube Channel
Related Manuals for LifeFitness Lifecycle
Summary of Contents for LifeFitness Lifecycle
- Page 1 Activate Upright Lifecycle ® Exercise Bike OSC Assembly Instructions 1011328-0001 REV AA...
- Page 3 Corporate Headquarters Columbia Centre III, 9525 West Bryn Mawr Avenue, Rosemont, Illinois 60018 U.S.A. 847.288.3300 FAX: 847.288.3703 Service phone number: 800.351.3737 (toll-free within U.S.A., Canada) Global Website: www.lifefitness.com International Offices AMERICAS North America United Kingdom All Other EMEA Countries and Distributor Life Fitness UK LTD Life Fitness, Inc.
- Page 4 User and Service Documents Link Operation Manuals and other Product Information available at https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents Trobareu el manual de funcionament i altra informació de producte a https://www.lftechsupport.com/web/document-library/documents Mae Llawlyfrau Gweithredu a Gwybodaeth Arall am Beiriannau ar gael yn https://www.lftechsupport.com/web/document-library/documents Die Betriebsanleitung und andere Produktinformationen erhalten Sie unter https://www.lftechsupport.com/web/document-library/documents...
-
Page 5: Table Of Contents
Life Fitness, LLC and its affiliated companies and subsidiaries. Brunswick and related trademarks used under license from Brunswick Corporation. Columbia Center III - 9525 West Bryn Mawr Ave., Rosemont, IL 60018 847-288-3300 www.lifefitness.com 1011328-0001 AA 2019 Page 5 of 22... -
Page 6: Getting Started Safety Instructions
1. Getting Started Safety Instructions Read all instructions before use. CAUTION: Any changes or modifications to this equipment could void the product warranty. WARNING: Health-related injuries may result from incorrect or excessive use of exercise equipment. Life Fitness STRONGLY recommends seeing a physician for a complete medical exam before undertaking an exercise program, particularly if the user has a family history of high blood pressure or heart disease, is over the age of 45, smokes, has high cholesterol, is obese, or has not exercised regularly in the past year. - Page 7 Free standing equipment shall be installed on a stable and leveled surface. Do not stand or sit on plastic shrouds. Use caution when mounting or dismounting the bike. Use the stationary handlebar whenever additional stability is required. Read all warnings on each product prior to starting a workout. If warnings are missing or damaged, please contact Customer Support Services immediately for replacement warning labels.
-
Page 8: Consignes De Sécurité
Consignes de Sécurité Lire toutes les instructions avant usage. Mise En Garde : Toute modification apportée à cet équipement pourrait en annuler la garantie. Avertissement : Une utilisation incorrecte ou excessive de l'appareil peut entraîner des blessures. Life Fitness Recommande VIVEMENT aux utilisateurs de passer un examen médical complet avant d'entamer un programme d'entraînement, et tout particulièrement dans les cas suivants : antécédents familiaux d'hypertension (pression sanguine trop élevée) ou de pathologies cardiaques, utilisateurs de 45 ans ou plus, tabagisme, hypercholestérolémie (taux de cholestérol sanguin trop élevé), obésité, absence d'exercice physique depuis un an ou plus. - Page 9 Ne laissez jamais l’appareil sans surveillance lorsqu’il est branché. Ne laissez jamais l’appareil sans surveillance lorsqu’il est branché. Débranchez-le systématiquement après son utilisation, et avant l’ajout et le retrait de pièces. Utilisez cet équipement uniquement aux fins auxquelles il est destiné et de la manière décrite dans le présent manuel. N’utilisez pas d’accessoires non recommandés par le fabricant.
-
Page 10: Set Up
Set Up Where to Place Unit Allow a distance of 16 in. (41 cm) between the widest part of the bike and other objects on either side. Allow a distance of 3 ft. (0.9 m) between the front or rear of the bike to any other objects. How to Stabilize Unit 1. - Page 11 5. To lower the seat, lift the body so that there is no weight on the seat. 6. Hold the seat and pull up the adjustment lever under the nose of the seat pad to unlock the seat post. 7. Let the seat slide down to the desired height, and release the adjustment lever to lock the seat post into place. 8.
-
Page 12: Specifications
Specifications Physical Dimensions Activate Console Upright Lifecycle Base Length 14 in. / 35.56 cm 44 in. / 112 cm Width 12 in. / 30.48 cm 23 in. / 59 cm Height 3.2 in. / 8.13 cm 54 in. / 137.5 cm Weight 2.4 lbs. -
Page 13: Service And Technical Data Preventive Maintenance Tips
2 minutes for general disinfection purposes. Contact Customer Support Services to order these cleaners (1-800-351-3737 or email: customersupport@lifefitness.com). Mild soap and water or a mild non-abrasive household cleaner can also be used to clean the display and all exterior surfaces. -
Page 14: Preventive Maintenance Schedule
1. Verify the symptom and review the operating instructions. The problem may be unfamiliarity with the product and its features and workouts. 2. Locate and write down the serial number of the unit which is located on the back of the unit near the toe guard. 3. Contact Customer Support at http://www.lifefitness.com. Page 14 of 22... -
Page 15: Assembly
3. Assembly Hardware and Required Tools Component List Item Number Description Qty. Upright Base Stabilizer M8 X 16MM Hex Flange Head Screw Console Support Assembly Monocolumn Assembly M8 X 16MM Hex Button Head Screw (silver) M8 Flat Washer (silver) Handlebar Assembly M8 Flat Washer (black) M8 X 16MM Hex Button Head Screw (black) M4 X16MM Phillips Pan Head Screw... -
Page 16: Assembly Procedure
Hardware Assembly Procedure IMPORTANT: Make sure all hardware is tight. Page 16 of 22... - Page 17 Page 17 of 22...
- Page 18 Page 18 of 22...
- Page 19 Page 19 of 22...
- Page 20 Page 20 of 22...
- Page 21 Page 21 of 22...
- Page 22 Page 22 of 22...
