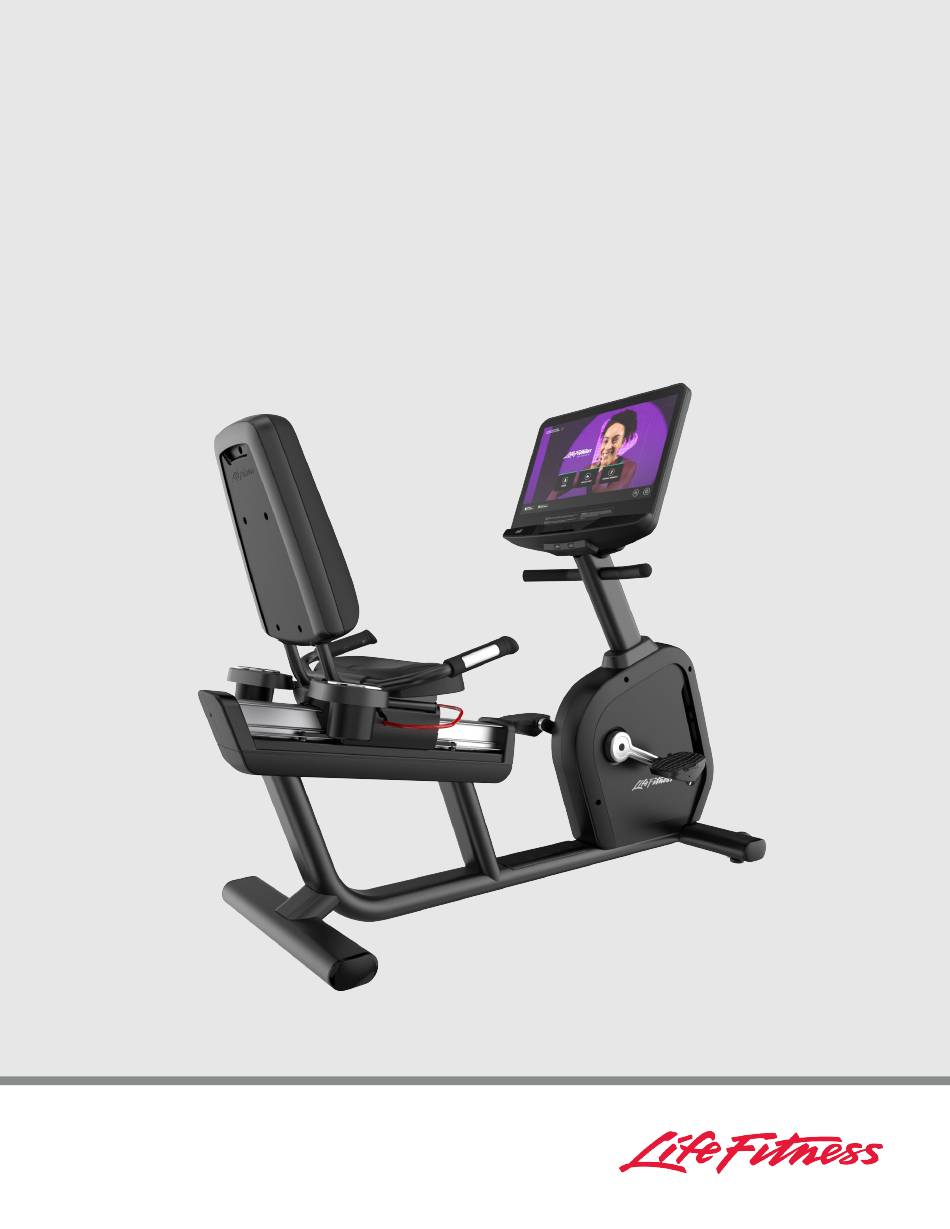

- Page 1 INTEGRITY+ AND CLUB SERIES+ RECUMBENT LIFECYCLE® EXERCISE BIKE INR-SE4-XF-13, INR-SL-XF-13, CSR-SL, CSR-SE4 Assembly Instructions 1023155-0001 REV AA...
- Page 3 10601 W Belmont Ave, Franklin Park, IL 60131 • U.S.A. 847.288.3300 • FAX: 847.288.3703 Service phone number: 800.351.3737 (toll-free within U.S.A., Canada) Global Website: www.lifefitness.com International Offices AMERICAS EUROPE, MIDDLE EAST, and AFRICA (EMEA) All Other EMEA Countries and Distributor...
- Page 4 User and Service Documents Link https://lifefitness9512.zendesk.com/hc/en-us https://www.lftechsupport.com/web/document-library/documents Additional information is available online using the links above. أ علاه إل ر إبط باستخدإم إ لإ ن تر نت على إضافية معلومات تتوفر 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link.
-
Page 5: Table Of Contents
Life Fitness, LLC and its affiliated companies and subsidiaries. Disclaimer: Images and specifications are current as of the date of publication and are subject to change. 10601 W Belmont Ave, Franklin Park, IL 60131 • 847-288-3300 www.lifefitness.com • 1023155-0001 AA • 2023 Page 3 of 24... -
Page 6: Safety Instructions
1. Getting Started Safety Instructions Read all instructions before use. CAUTION: Any changes or modifications to this equipment could void the product warranty. WARNING: Health-related injuries may result from incorrect or excessive use of exercise equipment. Life Fitness Family of Brands STRONGLY recommends seeing a physician for a complete medical exam before undertaking an exercise program, particularly if the user has a family history of high blood pressure or heart disease, is over the age of 45, smokes, has high cholesterol, is obese, or has not exercised regularly in the past year. - Page 7 • Never place liquids of any type directly on the unit, except in an accessory tray or holder. Containers with lids are recommended. • Do not use these products in bare feet. Always wear shoes. Wear shoes with rubber or high-traction soles. Do not use shoes with heels, leather soles, cleats or spikes.
-
Page 8: Consignes De Sécurité
Consignes de Sécurité Veuillez lire toutes les instructions avant usage. ATTENTION : Toute modification apportée à cet équipement pourrait en annuler la garantie. AVERTISSEMENT : Une utilisation incorrecte ou excessive de l'appareil peut entraîner des blessures. Life Fitness Family of Brands Recommande VIVEMENT aux utilisateurs de passer un examen médical complet avant d'entamer un programme d'entraînement, et tout particulièrement dans les cas suivants : antécédents familiaux d'hypertension (pression sanguine trop élevée) ou de pathologies cardiaques, utilisateurs de 45 ans ou plus, tabagisme, hypercholestérolémie (taux de cholestérol sanguin trop élevé), obésité, absence d'exercice... - Page 9 • Ne placez jamais de liquides d’aucune sorte directement sur l’appareil, sauf si vous disposez d’un support ou d’un plateau pour accessoires. Nous vous recommandons de n’utiliser que des récipients pourvus d’un couvercle. • N’utilisez pas ces produits avec les pieds nus. Portez toujours des chaussures. Portez des chaussures à semelles en caoutchouc ou antidérapantes.
-
Page 10: Recumbent Lifecycle Bike
Where to Place and How to Stabilize the Recumbent Lifecycle Bike Read the entire manual before setting up the bike. After following all Safety Instructions, move the bike to the location where it will be used. Allow a clearance of 2 ft. (0.6 m) in the directions the bike is accessed from and 3 ft. (1 m) between the front or rear of the bike or any other objects. -
Page 11: Electrical Power Requirements (Applicable For Units Using External Power Supply)
Electrical Power Requirements (Applicable for Units Using External Power Supply) • Units that are equipped with the Integrity SL console are self powered. • Units with Integrity SL console can be used with an optional attachable TV. Use of an attachable TV requires an external power supply. -
Page 12: Product Overview
2. Product Overview Product Features Item Description Console Wheel Leg Leveler Resistance Up / Down Controls Cup Holders Contact Heart Rate Sensors Seat Adjustment Bar Grip Connections The following connection receptacle is located at the front of the bike. Item Description Coaxial Connection Power Input... -
Page 13: How To Adjust Seat
How to Adjust Seat A properly adjusted seat is important in any bike-oriented exercise activity. If the seat is too close, excessive strain will be placed on the knees and quadriceps muscles. If the seat is too far, the resulting reaching action will irritate the feet, ankles, hips and knees. -
Page 14: Assembly Procedure
3. Assembly Procedure Hardware and Tools Required Hardware: Item Description Qty. M8 X 20 FLANGE HEX HEAD CAP SCREW M6 X 16 PHILLIPS PAN HEAD SCREW GROMMET M5 X 14 PHILLIPS PAN HEAD SCREW M4.2 X 19 PHILLIPS PAN HEAD SCREW M8 HEX LOCK NUT Required Tools: •... -
Page 15: Before You Begin
Before You Begin The monocolumn is positioned with the back of the console support weldment laying on the bike seat. The seat is set to the farthest forward position. 1. Remove velcro strap and discard. 2. Lift the moncoloumn up and turn COUNTERCLOCKWISE. NOTE: DO NOT turn the monocolumn clockwise! Cables may become twisted as a result. -
Page 16: Attach Monocolumn To Base
Attach Monocolumn to Base CAUTION: Remove any protective covering / tape from the monocolumn and console support weldment prior to attaching to base! Failure to remove the protective covering can cause improper grounding! Item Description Qty. Monocolumn M8 Hex Lock Nut 34 Nm ( 25.1 ft. -
Page 17: Attach Seat Back And Seat Back Shroud
Attach Seat Back and Seat Back Shroud 1. Secure seat back to seat weldment using four screws. 2. Secure seat back shroud using five screws. Item Description Qty. Seat Back M8 X 20 Flange Head Cap Screw 13.5 Nm (10 ft. lbs.) Seat Back Shroud M6 X 16 Phillips Pan Head Screw 4 Nm (35 in. -
Page 18: Base To Console Cable Connections
Base to Console Cable Connections Discover SE4 Item Description Ethernet STB HDMI STB IR CSAFE Base Power Base Signal (Lifepulse, Base Switches) Base Comm RF Coax Integrity SL Item Description CSAFE Base Signal (Lifepulse, Base Switches) Base Power Base Comm TV (optional) Page 16 of 24... -
Page 19: Attach Console
Attach Console Discover SE4 (16" or 24") NOTE: Do not install the screw in the location shown (next to arrow) if the Discover SE4 console has a Set Top Box Sync (STB) receiver! The screw will hit the STB receiver inside of the console. -
Page 20: Attach Rear Console Shroud Assembly
Attach Rear Console Shroud Assembly 1. Slide the clips on top of the rear console shroud assembly into the corresponding slots on the console mounting bracket. 2. Use two screws and two grommets to attach rear console shroud assembly to the corresponding two holes on the console mounting bracket. -
Page 21: Specifications
4. Specifications Specifications Heavy / Commercial (INR-SE4-XF-13, INR-SL-XF-13) EN ISO 20957 Class SA Designed Use Home (CSR-SL, CSR-SE4) EN ISO 20957 Class HA Maximum User Weight 400 lbs. / 181 kg Pedal Size 6.56 in. x 5.5 in. / 16.6 cm x 14 cm Drive Type Generator / Belt Power Requirements... -
Page 22: Service And Technical Data
Wipes on the equipment for at least 2 minutes for general disinfection purposes. Contact Customer Support Services to order these cleaners (1-800-351-3737 or email: customersupport@lifefitness.com). Mild soap and water or a mild non-abrasive household cleaner can also be used to clean the display and all exterior surfaces. -
Page 23: Troubleshooting The Polar ® Heart Rate Chest
Troubleshooting the Polar ® Heart Rate Chest Strap Heart rate reading is erratic or absent entirely Probable Cause Corrective Action Belt transmitter electrodes are not wet enough to pick up Wet the belt transmitter electrodes. accurate heart rate readings. Belt transmitter electrodes are not laying flat against the Ensure the belt transmitter electrodes are laying flat skin. -
Page 24: Troubleshoot The Lifepulse™ Sensors
1. Verify the symptom and review the operating instructions. The problem may be unfamiliarity with the product and its features and workouts. 2. Locate and write down the serial number of the unit which is located on the top right of the front stabilizer. 3. Contact Life Fitness Customer Support Services at http://www.lifefitness.com. Page 22 of 24... -
Page 25: Getting Started How To Get Parts And Service
6. Warranty What is Covered This Life Fitness Family of Brands commercial exercise equipment product is warranted to be free of all defects in material and workmanship. Who is Covered The original purchaser or any person receiving the product as a gift from the original purchaser. Warranty will be voided on subsequent transfers. -
Page 26: Changes In Warranty Not Authorized
This warranty gives you specific legal rights, and you may have other rights which vary from state to state and country by country. Terms of Warranty Coverage Please use the link below to access component warranty terms: http://lifefitness.com/warranties Page 24 of 24...
