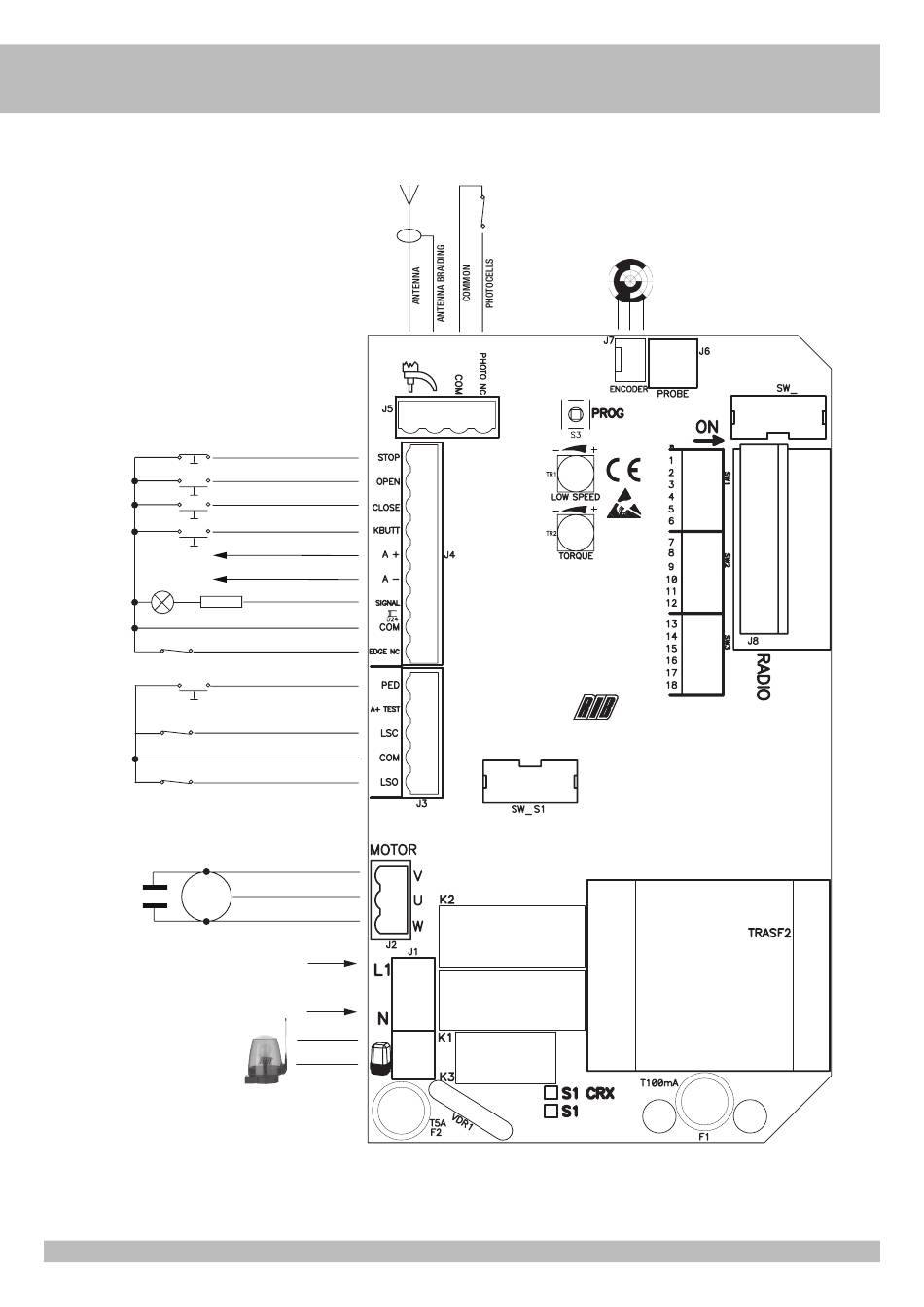

ELECTRIC CONNECTIONS

LED
MOTOR
CAPACITOR
BLINKER
230Vac 40W
STOP
OPEN
CLOSE
STEP BY STEP
24Vdc 0,4A ± 15%
R=2,2K 1/4W
SAFETY STRIP
PEDESTRIAN
LIMIT SWITCH CLOSE
COMMON
LIMIT SWITCH OPEN
OPEN
COMMON
M
CLOSE
POWER SUPPLY
230Vac 50 Hz
ENCODER
30
S1-CRX code AC07097
RADIO
