Branchements Électriques - RIB K800 FAST Installation Manual

Hide thumbs Also See for K800 FAST:

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 27

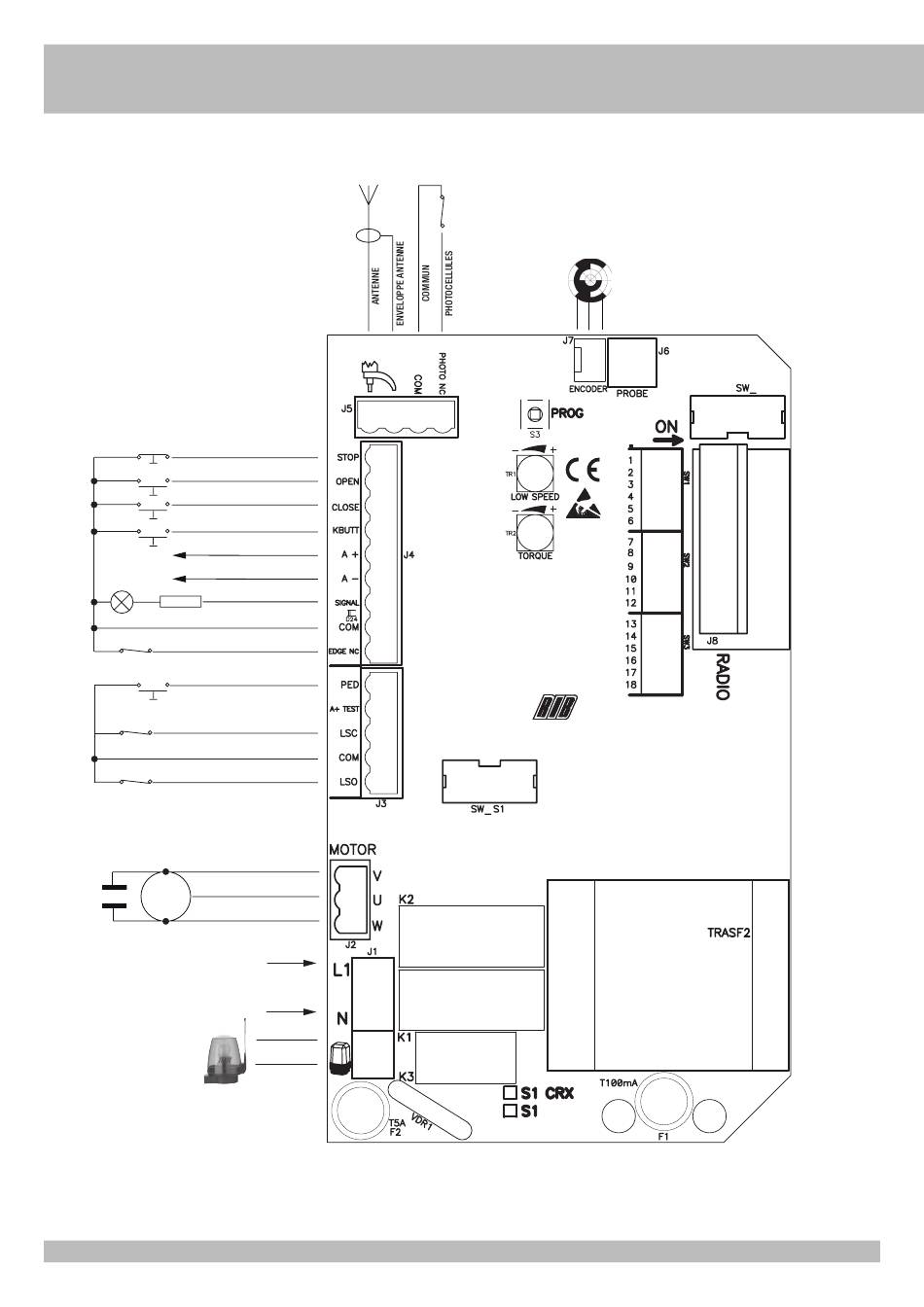

BRANCHEMENTS ÉLECTRIQUES
STOP
OUVRE
FERME
PAS A PAS
24Vdc 0,4A ± 15%
LED
R=2,2K 1/4W
BARRE PALPEUSE
PIETON
FIN DE COURSE FERMETURE
COMMUN
FIN DE COURSE OUVERTURE
OUVRE
COMMUN
M
FERME
ALIMENTATION
230Vac 50 Hz
FEU CLIGNOTANT
230Vac 40W
ENCODER
19
F
S1-CRX code AC07097
