ISTRUZIONI PER L'USO E L'INSTALLAZIONE
F
INSTRUCTIONS POUR L'UTILISATION ET L'INSTALLATION
OPERATING AND INSTALLATION INSTRUCTIONS
GB
GEBRAUCHSANWEISUNGEN UND INSTALLATION
D

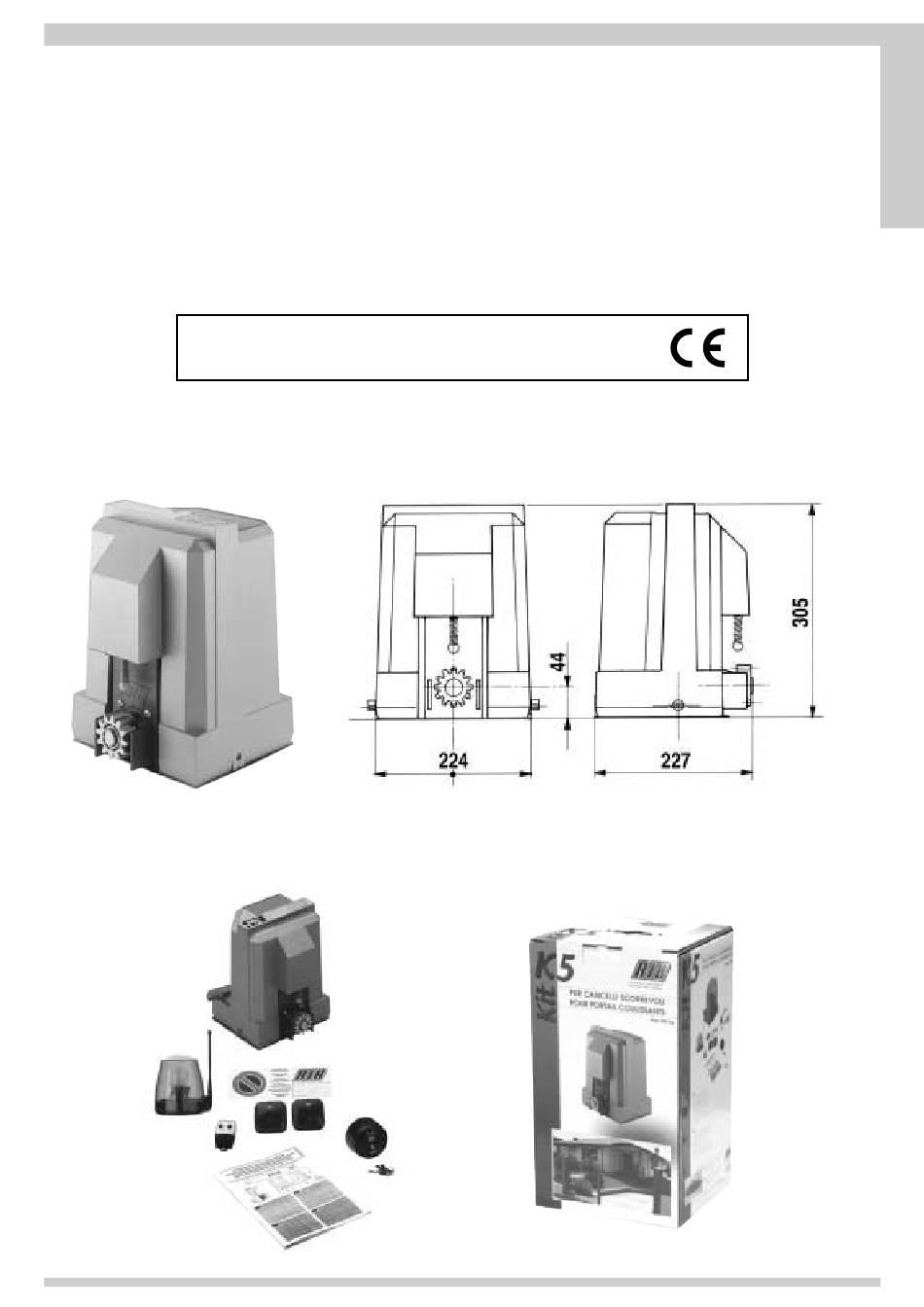

Operatore irreversibile per cancelli scorrevoli - Operateur irreversible pour portails coulissantes
Irreversible operator for sliding gates - Selbsthemmender Torantrieb für Schiebetüren
K5 cK
Mod.
Misure in mm
Mesures en mm
Measurements in mm
Abmessungen in mm
Advertisement
Related Manuals for RIB K5 cK
Summary of Contents for RIB K5 cK
- Page 1 OPERATING AND INSTALLATION INSTRUCTIONS GEBRAUCHSANWEISUNGEN UND INSTALLATION Operatore irreversibile per cancelli scorrevoli - Operateur irreversible pour portails coulissantes Irreversible operator for sliding gates - Selbsthemmender Torantrieb für Schiebetüren K5 cK Mod. Misure in mm Mesures en mm Measurements in mm...
-
Page 2: Technical Features
Pag. 19 di 36 SYSTEM LAY-OUT A - K5 operator B - Photoelectric cells (external) C - Rack D - Key selector E - Tuned aerial F - Flashing lamp G - Limit switch cam L - Mechanical strip M - Pneumatic strip Fig. -
Page 3: Emergency Release
EMERGENCY RELEASE To be undertaken after disconnecting power supply. To open the gate manually, in case of power failure, you should turn RIB key clockwise. To restore electric working you have to turn the lever anti-clockwise (Fig. 4). In order to carry out the manual operation of the gate leaf the followings must be checked: - That the gate is endowed with appropriate handles;... - Page 4 Pag. 21 di 36 ELECTRIC CONNECTIONS SPARK MOTOR CONNECTION FIT SYNCRO BLOCK push button FLAT COSTA...
- Page 5 Pag. 22 di 36 Cod. BC07056 K-CRX 230-50/60Hz Cod. BC07057 K-CRX 120-60Hz B - ADJUSTING THE MICROSWITCHES A - CONNECTIONS J1=> DO NOT TOUCH THE JUMPER ! OPERATION MICROSWITCHES IF IT IS REMOVED THE OPERATOR DOESN’T MOVE ! DIP 1 CHECKING THE ROTATION DIRECTION OF THE MOTOR (ON) (POINT C) J2=>...
- Page 6 Pag. 23 di 36 GRADUAL START E – RADIO CODE LEARNING PROCEDURE Upon gate operation command, a gradual start is performed, as default, for 1 sec. (CRX MODELS ONLY) ELECTRONIC BRAKE 1 - The position of the gate does not affetc the code memorisation. In case the slowing mode is not used (dip 8 ON), enabling of dip 7 (ON) is recommended.
- Page 7 Pag. 24 di 36 On power black out On power restoring If the gate is fully closed Will remain closed If the gate is in the opening stroke Will restart the opening stroke If the gate is fully open (with dip 3 OFF) Remains open.
- Page 8 Pag. 25 di 36 ACCESSORIES PLATE TO BE CEMENTED FIT SYNCRO code ACG8101 FIT SYNCRO PHOTOCELLS FOR THE WALL-INSTALLATION - code ACG8026 The range you can set Is 10÷20mt 49÷100” You can fit many couples close together thanks to the synchronising circuit. Add the SYNCRO TRANSMITTER, code ACG8028, for more than 2 photocells couples (up to 4).
- Page 9 Pag. 35 di 36 NOTE:...
- Page 10 Pag. 36 di 36 Codice Codice Denominazione Particolare Codice Denominazione Particolare Denominazione Particolare BC07056 CEL1378 Condensatore 60µF 420/470V per K5 CTC1090 Paraolio 20x30x5 Scheda KCRX 230-50/60Hz BC07057 120/60Hz CTC1149 Spessore 12 18 1 Scheda KCRX 120-60Hz CEL1382 Condensatore 16µF 450V per K5 CTC1203 Molla per finecorsa CAL1155...
