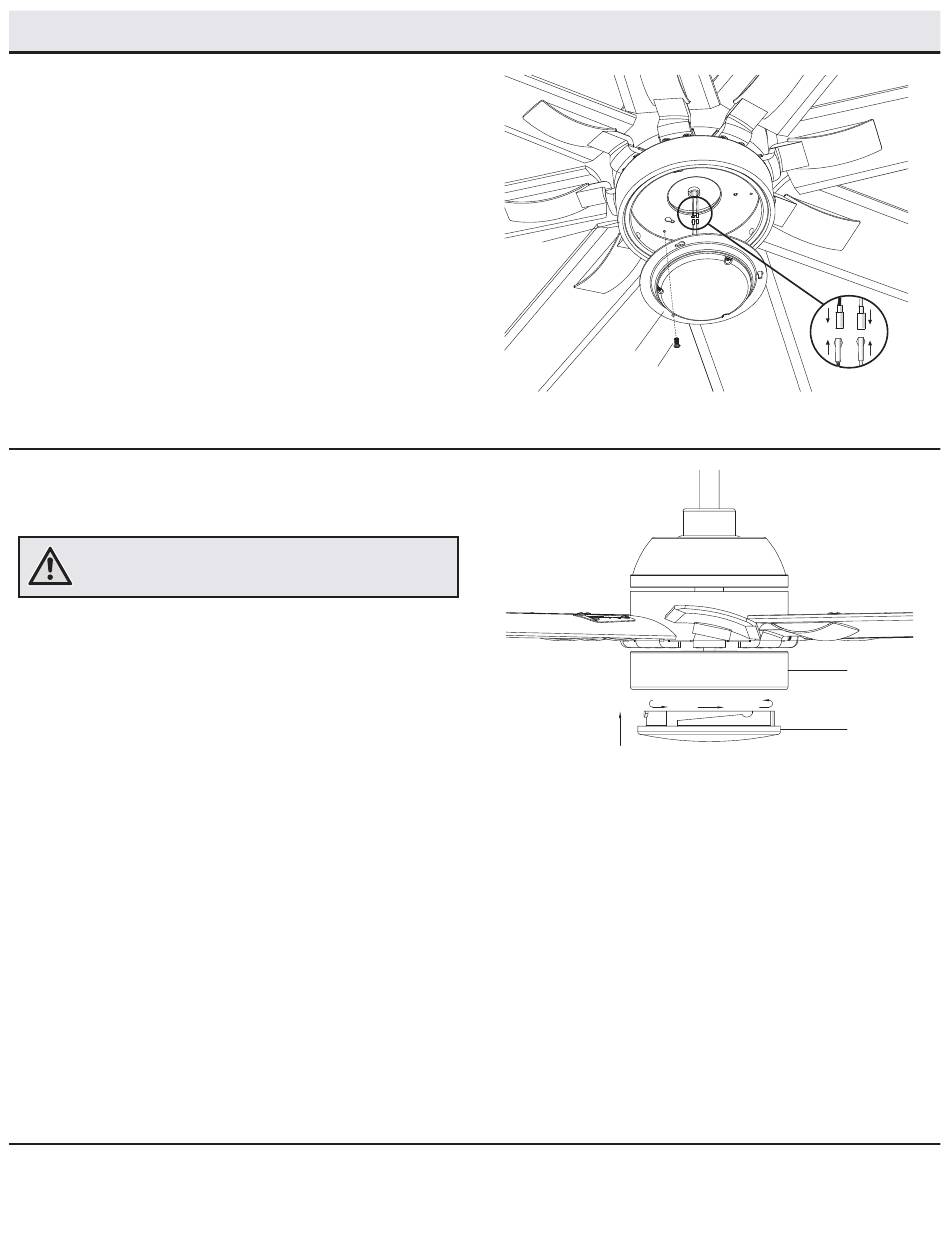

Assembly - Attaching the Accessories (continued)
2
Attaching the light kit fitter assembly
□
Remove one screw (TT) from the light kit pan, and loosen, but
do not remove the other two screws.
□
Connect the wires from the light kit fitter assembly (J) to the
wires from the fan motor assembly (E) by connecting the
molded adaptor plugs together. Carefully tuck all wires and
splices into the switch cup.
□
Push the light kit fitter assembly (J) up to the light kit pan so
that the two loosened screw heads fit into the keyhole slots.
Turn the light kit fitter assembly (J) clockwise to secure.
□
Re-install the screw that was removed in the first step.
□
Make sure all the screws are firmly tightened.
3
Installing the shatter resistant shade
WARNING: Do not overtighten when installing the shatter
resistant shade into the light kit. Allow the shatter resistant
shade to cool completely before removing.
□
Place the shatter resistant shade (K) into the light kit (I),
aligning the three flat areas on the top of the flange of the
shatter resistant shade (K) with the three raised dimples in the
light kit (I). Turn the shade clockwise until it stops.
I
J
12
TT
I
K
