Blade; Blade Arm; Blade Support Plate; Light Kit Pan - Home Decorators Collection 1003521277 Use And Care Manual

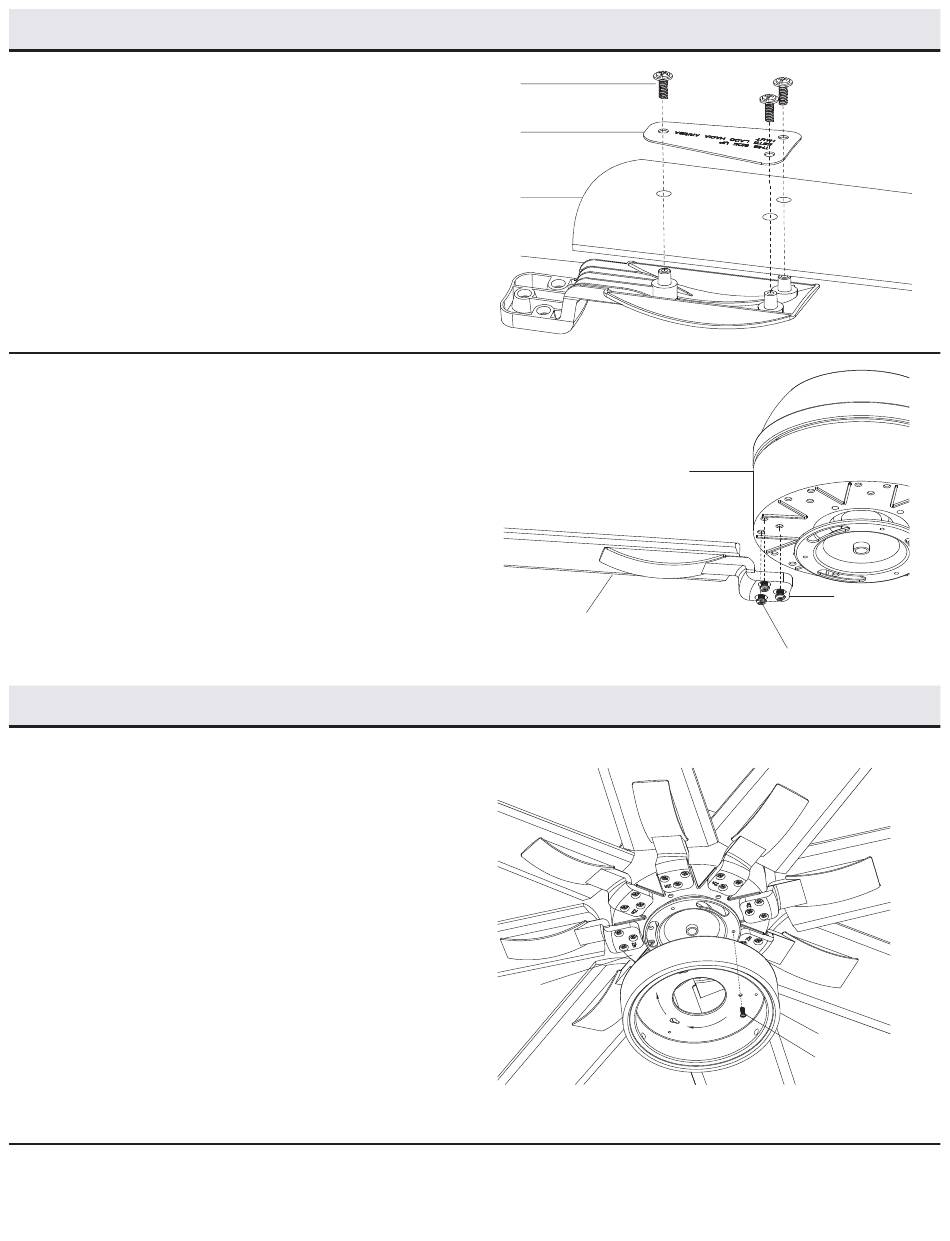

Assembly - Attaching the Fan Blade
1
Installing the blades to the blade
brackets
□
Attach a blade (F) to the blade bracket (G) by aligning the holes
on the blade support plate (H) with the holes on blades (F) and
blade arms (G), inserting the screws (AA) into the holes in the
blade support plate (H) and through the blade (F) and blade
arm (G).
□
Tighten each screw to secure the blade (F).
□
Repeat this step for each blade (F) and blade bracket (G).
2
Attaching the blade assemblies to
the motor.
□
Attaching the blade assemblies to the motor by aligning the
screw holes on the blade arm (G) with the screws holes on the
bottom of the fan motor assembly (E) and tightening with the
blade bracket screws (SS). The blade bracket screws (SS) are
pre-installed into the blade bracket (G).
□
Repeat this step for the remaining the blade assemblies.
Assembly - Attaching the Accessories
1
Installing the light kit pan
□
Remove one screw (RR) from the black bracket below the fan
motor assembly (E), and loosen but do not remove the other
two screws.
□
Push the light kit pan (I) up to the fan motor assembly (E) so
that the two loosened screw heads fit into the keyhole slots.
Turn the light kit pan (I) clockwise.
□
Re-install the screw (RR) that was removed in the first step.
□
Make sure all the screws are firmly tightened.
AA
H
F
G
F
E
11
Please contact 1-800-986-3460 for further assistance.
