Item #1007 746 305
1007 746 314
Model # AM382D-BN
AM382D-EB
USE AND CARE GUIDE

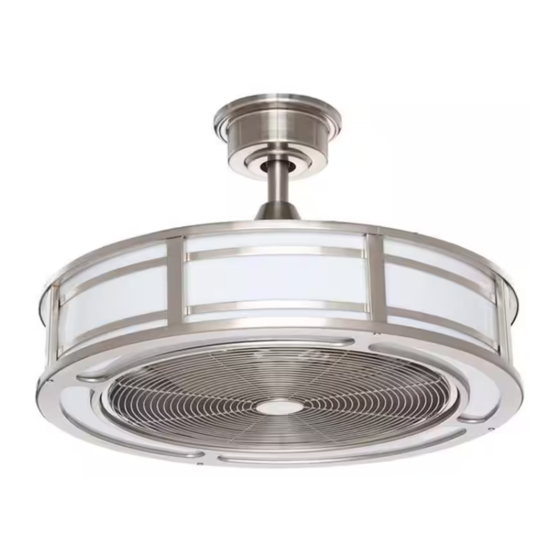

BRETTE III 23 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
THANK YOU
We appreciate the trust and con dence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We
strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Related Manuals for Home Decorators Collection BRETTE III AM382D-BN
Summary of Contents for Home Decorators Collection BRETTE III AM382D-BN
- Page 1 THANK YOU We appreciate the trust and con dence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........Assembly . -
Page 3: Warranty
Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of ve years after the date of purchase by the original purchaser. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Plastic wire nut 1.5V AAA battery Extension cord...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Mounting bracket (preassembled) Coupling cover Canopy ring (preassembled) Fan motor assembly Canopy Receiver Hanger ball/downrod assembly Remote control HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.
-
Page 6: Installation
Installation MOUNTING OPTIONS WARNING: To reduce the risk of re, electric shock, or NOTE: You may need a longer downrod to maintain proper personal injury, mount the fan to an outlet box marked blade clearance when installing on a steep, sloped ceiling. acceptable for fan support using the screws provided with the The maximum angle allowable is 18°... -
Page 7: Assembly
Assembly Preparing the canopy Preparing the motor Remove the canopy ring (B) from the canopy (C). Remove the cotter pin (EE) and clevis pin (FF), and loosen the two collar set screws (GG) from the motor collar. Remove the two non-slotted canopy mounting screws with lock washers (DD) from the canopy (C), and loosen the Take out the set screw (HH) located in the hanger ball (II), slotted canopy mounting screws with lock washers (DD) on... - Page 8 Assembly — Hanging the Fan Installing the mounting bracket to the Hanging the fan to the mounting electrical box bracket WARNING: The tab in the ring must rest in the groove of WARNING: To reduce the risk of re, electric shock or other the hanger ball/downrod assembly (D).
- Page 9 Assembly — Hanging the Fan (continued) Preparing the receiver and remote control NOTE: The frequencies on your receiver and remote control have been preset at the factory. Before installing the receiver, make sure the dip switches on the receiver and remote control are set to the same frequency.
- Page 10 Assembly — Hanging the Fan (continued) Making the electrical connections Ground Black White conductor WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts, except for the ground wire. WARNING: To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
- Page 11 Assembly — Hanging the Fan (continued) Installing the canopy Outlet Box WARNING: Make sure the tab on the mounting bracket (A) properly sits in the groove in the hanger ball (II) before attaching the canopy (C) to the mounting bracket (A) by turning the canopy housing until it drops into place.
-
Page 12: Operation
Operation REMOTE CONTROL OPERATING INSTRUCTIONS - Press and release the button to turn the fan on or off. - Press and release 1 time - turns the fan on high speed. - Press and release 2 times - turns the fan on medium speed. - Press and release 3 times - turns the fan on low speed. - Page 13 Operation (continued) REVERSE SWITCH OPERATING INSTRUCTIONS The reverse switch is located on the top of the motor housing. Slide the switch to the right for warm weather operation. Slide the switch Reverse switch to the left for cool weather operation. NOTE: Wait for the fan to stop before reversing the direction of the blade rotation.
-
Page 14: Care And Cleaning
Care and Cleaning Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling. Clean your fan periodically. - Page 15 - Consult the dealer or an experienced radio/TV technician for help. Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS...
