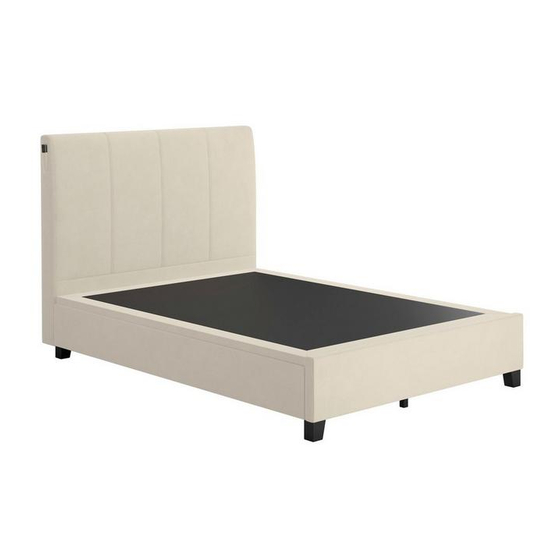

Francesca Storage Bed
Single
Small Double
Double
King
Super King
IMPORTANT OTTOMAN SAFETY WARNINGS
IMPORTANT – READ CAREFULLY – RETAIN FOR FUTURE REFERENCE
You must ensure that the mattress is on the bed frame before operating the
lift mechanism – Failure to do so could result in injury.
Keep hands clear of the mechanism when opening or closing the ottoman.
Beware of entrapment – Never reach in through the mechanism to access
the storage area.
Always ensure that the ottoman is FULLY opened before accessing the
storage area.
Do not exceed the maximum weight as specified in the table below:
Bed
Francesca
(manual)
1.5 hour approx
Two person
assembly time
assembly
MK1 230323
Bed Size
Min Weight (kg) Max Weight (kg)
Single
Small Double
Double
King
Super King
O.S.B.
with
10
25
10
35
10
40
15
45
20
50
Advertisement
Table of Contents
Related Manuals for DREAMS Francesca
Summary of Contents for DREAMS Francesca
- Page 1 O.S.B. Francesca Storage Bed with Single Small Double Double King Super King IMPORTANT OTTOMAN SAFETY WARNINGS IMPORTANT – READ CAREFULLY – RETAIN FOR FUTURE REFERENCE You must ensure that the mattress is on the bed frame before operating the lift mechanism – Failure to do so could result in injury.
- Page 2 Maximum item height is 225mm. WARNING! HAZARD - DO NOT REACH INTO THE SPACE BELOW! Francesca Storage Bed - Assembly guide - Page 2...
- Page 3 Do not sit on the mattress whilst the platform is in motion or is in the raised position. o Users should only get in and out of bed when platform is in the flat (horizontal) position. Francesca Storage Bed - Assembly guide - Page 3...
-
Page 4: Assembly Tips
Thank you Hello, thanks for choosing to purchase your bed from Dreams - you're now on your way to your best ever night's sleep. Before you begin building your bed, please take a moment to read through the instructions and make sure that you've got all the relevant parts listed on the following pages. -
Page 5: Parts List
Mattress Base Board - Footend Storage Base Boards Ottoman support bar Base Board Support Rails (Wood) Fixed retaining bracket - footboard Mattress Base Support Rails Parking bracket - mattress base board 0 10 1 Francesca Storage Bed - Assembly guide - Page 5... -
Page 6: Tools Required
Flat washers for M8 bolts Spring washers for M8 bolts Q x1 P x1 Tools required Fixed retaining bracket Parking bracket - slat frame - side rail Tape measure Cross head screwdriver Francesca Storage Bed - Assembly guide - Page 6... - Page 7 Bed assembly- use pack 'A' Note angles point inside & 10mm Francesca Storage Bed - Assembly guide - Page 7...
- Page 8 & Do not tighten bolts yet Francesca Storage Bed - Assembly guide - Page 8...
- Page 9 100%. Carefully slide in the first storage base board (G) leaving the second one until Step 10. Francesca Storage Bed - Assembly guide - Page 9...
- Page 10 Hold up each support and slide piston stem onto the threaded axle and fit nut (g) using spanner (f). Note, do not over-tighten - a small gap needs to be left see sketch. Francesca Storage Bed - Assembly guide - Page 10...
- Page 11 - do not tighten 100% yet. iii) Firstly, fit both connection plates (e) to the mattress base board (E) using bolt set (a & c), do not tighten the bolts yet. Francesca Storage Bed - Assembly guide - Page 11...
- Page 12 (a & c) then screw other bolt sets (a, b & c) through the supports into the mattress base board at each side. 100% When all x16 bolt sets are in place, tighten all bolts 100% using Allen key (d). Francesca Storage Bed - Assembly guide - Page 12...
- Page 13 Using four bolt sets (a, b & c), fit cross bar (N) to both side rails (C&D). Tighten 100% using Allen key (d). Take care not to damage the fabric when fitting. & c x2 b x2 a x2 Francesca Storage Bed - Assembly guide - Page 13...
- Page 14 O.S.B. stem just touches the surface - better to do this mattress is fitted. AFTER the Francesca Storage Bed - Assembly guide - Page 14...
- Page 15 Set the inner stem to the correct length so the end just touches the retaining bracket - it needs to touch to hold it in position. 100% Adjust the retaining bracket (P) so the stem end scrapes the surface. Francesca Storage Bed - Assembly guide - Page 15...
-
Page 16: Care And Maintenance
Metal tends to be more resilient to everyday wear and tear. We recommend to gently dust your metal furniture and keep it dry to maintain its look. Thank you for shopping with us - we hope you have a great night's sleep Care and maintenance guide Francesca Storage Bed - - Page 16... - Page 17 Little dreamers Keep the little ones entertained while you assemble your new purchase.
