iAG840/iAG880 User Manual
IAG840/IAG880 User Manual
Address: 10/F, Building 6-A, Baoneng Science and Technology Industrial Park, Longhua New District,
Shenzhen, Guangdong,China 518109
Tel: +86-755-82535461, 82535095, 82535362
Fax: +86-755-83823074
Business Contact:
sales@openvox.cn
Technical Support:
support@openvox.com.cn
Business Hours: 09:00-18:00(GMT+8) from Monday to Friday
URL: www.openvoxtech.com
OpenVox Communication Co.Ltd
www.openvoxtech.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for OpenVox IAG840
Summary of Contents for OpenVox IAG840
- Page 1 User Manual IAG840/IAG880 User Manual Address: 10/F, Building 6-A, Baoneng Science and Technology Industrial Park, Longhua New District, Shenzhen, Guangdong,China 518109 Tel: +86-755-82535461, 82535095, 82535362 Fax: +86-755-83823074 Business Contact: sales@openvox.cn Technical Support: support@openvox.com.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday ...
- Page 2 User Manual Version1.0 (2016-03-03) OpenVox Communication Co.Ltd www.openvoxtech.com...
- Page 3 OpenVox has made every effort to ensure that the information contained in this document is accurate and complete; however, the contents of this document are subject to revision without notice. Please contact OpenVox to ensure you have the latest version of this document.
-
Page 4: Table Of Contents
User Manual Table of Contents 1. Overview..........................1 What is iAG840/880 ? Sample Application Product Appearance Main Features Physical Information Software 2. System ...........................6 Status Time Login Settings General, Tools and Information Language Settings Scheduled Reboot Reboot Tools Information 3. Analog..........................12... - Page 5 User Manual NAT Settings Advanced: NAT Settings Parsing and Compatibility Security Media 5. Network, Advanced and Logs....................30 Network Network Settings OpenVPN Settings DDNS Settings Toolkit Advanced Asterisk API Asterisk CLI Asterisk File Editor Logs OpenVox Communication Co.Ltd www.openvoxtech.com...
-
Page 6: Overview
There are four models with Analog Gateway, the 4FXS, 8FXS, 4FXO and 8FXO, and there are 4/8 ports in iAG840/880. The Modular Design Analog Gateways are developed for interconnecting the PSTN networks with a wide selection of codecs and signaling protocol, including G.711A, G.711U, G.729, G.722, G.723, ILBC to quickly reduce communication expenses and maximize cost-savings. -
Page 7: Sample Application

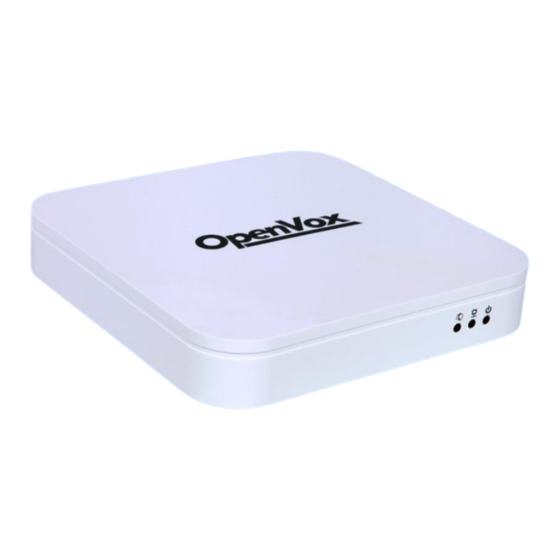

User Manual Sample Application Figure 1-2-1 Topological Graph Product Appearance The picture below is appearance of Analog Series Gateway. OpenVox Communication Co.Ltd URL:www.openvoxtech.com... - Page 8 User Manual Figure 1-3-1 Product Appearance Figure 1-3-2 Front Panel 1 : System LED 2 : Network interface LED 3 : Power Indicator Figure 1-3-4 Back Panel 1 : Analog Telephone Interface (8) 2 : Channel indicator (8) 3 : USB Interface(1)
-
Page 9: Main Features
User Manual Main Features Modular design ○ Based on Asterisk ○ Editable Asterisk configuration file Support T.38 fax relay and T.30 fax transparent, can continually fax multiple page Echo cancellation and Static jitter buffer ... -
Page 10: Software
User Manual Software Default IP: 172.16.99.1 Username: admin Password: admin Please enter the default IP in your browser to scan and configure the module you want. Figure 1-6-1 LOGIN Interface OpenVox Communication Co.Ltd URL:www.openvoxtech.com... -
Page 11: System
User Manual 2. System Status On the “Status” page, you will see Port/SIP/Network information and status. Figure 2-1-1 System Status Time Table 2-2-1 Description of Time Settings Options Definition System Time Your gateway system time. The world time zone. Please select the one which is the same or... -
Page 12: Login Settings
User Manual NTP Server 2 The first reserved NTP server. For example, [time.windows.com]. NTP Server 3 The second reserved NTP server. For example, [time.nist.gov]. Whether enable automatically synchronize from NTP server or not. ON is Auto-Sync from NTP enable, OFF is disable this function. -
Page 13: General, Tools And Information
User Manual Table 2-3-1 Description of Login Settings Options Definition Define your username and password to manage your gateway, without space here. Allowed characters User Name "-_+. < >&0-9a-zA-Z". Length: 1- 32 characters. Allowed characters "-_+. < >&0-9a-zA-Z". Password Length: 4- 32 characters. -
Page 14: Scheduled Reboot
User Manual Figure 2-4-1 Language Settings Scheduled Reboot If switch it on, you can manage your gateway to reboot automatically as you like. There are four reboot types for you to choose, “By Day, By Week, By Month and By Running Time”. - Page 15 User Manual If you press “Yes”, your system will reboot and all current calls will be dropped. Asterisk Reboot is the same. Table 2-4-1 Instruction of reboots Options Definition This will turn off your gateway and then turn it back on. This System Reboot will drop all current calls.
-
Page 16: Information
User Manual Information On the “Information” page, there shows some basic information about the analog gateway. You can see software and hardware version, storage usage, memory usage and some help information. Figure 2-4-7 System Information OpenVox Communication Co.Ltd URL:www.openvoxtech.com... -
Page 17: Analog
User Manual 3. Analog You can see much information about your ports on this page. Channel Settings Figure 3-1-1 Channel System On this page, you can see every port status, and click action button to configure the port. Figure 3-1-2 Port Configure OpenVox Communication Co.Ltd... -
Page 18: Dial Matching Table
User Manual Dial Matching Table Dialing rules is used to effectively judge whether the received number sequence is complete, in order to timely end receiving number and send out number The correct use of dial-up rules, helps to shorten the turn-on time of phone call Figure 3-2-1 Port Configure OpenVox Communication Co.Ltd... -
Page 19: Global Settings
User Manual Global Settings Figure 3-3-1 General Configuration Table 3-3-1 Instruction of General Options Definition How long generated tones (DTMF and MF) will be played on the Tone duration channel. (in milliseconds) Dial timeout Specifies the number of seconds we attempt to dial the specified devices. - Page 20 User Manual Figure 3-3-2 Caller ID Table 3-3-2 Instruction of Caller ID Options Definition Some countries(UK) have ring tones with different ring tones(ring-ring), The pattern of which means the caller ID needs to be set later on, and not just after the...
- Page 21 User Manual Table 3-3-3 Instruction of Hardware gain Options Definition Set the FXS port Rx gain. Range: - 35, 0 or 35. FXS Rx gain FXS Tx gain Set the FXS port Tx gain. Range: -35, 0 or 35.
- Page 22 User Manual Table 3-3-5 Definition of Country Options Definition Country Configuration for location specific tone indications. Ring cadence List of durations the physical bell rings. Dial tone Set of tones to be played when one picks up the hook.
-
Page 23: Sip
User Manual 4. SIP SIP Endpoints This page shows everything about your SIP, you can see status of each SIP. Figure 4-1-1 SIP Status You can click button to add a new SIP endpoint, and if you want to modify existed endpoints, you can click button. - Page 24 User Manual Figure 4-1-2 Anonymous Registration For convenience, we have designed a method that you can register your SIP endpoint to your gateway, thus your gateway just work as a server. Figure 4-1-3 Register to Gateway Also you can choose registration by “This gateway registers with the endpoint”, it’s the same with OpenVox Communication Co.Ltd...
- Page 25 User Manual “None”, except name and password. Figure 4-1-4 Register to Server Table 4-1-1 Definition of SIP Options Options Definition A name which is able to read by human. And it’s only used for user’s Name refe rence. Username User Name the endpoint will use to authenticate with the gateway.
-
Page 26: Advanced: Registration Options
User Manual This sets the possible transport types for outgoing. Order of usage, when the respective transport protocols are enabled, is UDP, TCP, TLS. The first Transport enabled transport type is only used for outbound messages until a Registration takes place. During the peer Registration the transport type may change to another supporte d type if the peer requests so. -
Page 27: Call Settings
User Manual Call Settings Table 4-1-3 Definition of Call Options Options Definition Set default DTMF Mode for sending DTMF. Default: rfc2833. DTMF Mode Other options: 'info', SIP INFO message (application/dtmf-relay); 'Inband', Inband audio (require 64kbit codec - alaw, ulaw). -
Page 28: Advanced: Timer Settings
User Manual By default, the gateway will honor the session version number in SDP packets and will only modify the SDP session if the version number change. Turn this option off to force the gateway to ignore the SDP session Honor SDP Version version number and treat all SDP data as new data. -
Page 29: Media Settings
User Manual Minimum Session Minimum session refresh interval in seconds. Default is 90secs. Refresh Interval Maximum Session Maximum session refresh interval in seconds. Defaults to 1800secs. Refresh Interval Session Refresher The session refresher, uac or uas. Defaults to uas. -
Page 30: Advanced Sip Settings
User Manual Advanced SIP Settings Networking Table 4-3-1 Definition of Networking Options Options Definition UDP Bind Port Choose a port on which to listen for UDP traffic. Enable TCP Enable server for incoming TCP connection (default is no). TCP Bind Port Choose a port on which to listen for TCP traffic. -
Page 31: Advanced: Nat Settings
User Manual Table 4-3-2 Definition of NAT Settings Options Definition Format:192.168.0.0/255.255.0.0 or 172.16.0.0./12. A list of IP address or IP ranges which are located inside a NATed network. Local Network This gateway will replace the internal IP address in SIP and SDP messages with the external IP address when a NAT exists between the gateway and other endpoints. -
Page 32: Parsing And Compatibility
User Manual Parsing and Compatibility Table 4-3-4 Instruction of Parsing and Compatibility Options Definition Check header tags, character conversion in URIs, and multiline headers Strict RFC for strict SIP compatibility(default is yes) Interpretation Send Compact Send compact SIP headers... -
Page 33: Security
User Manual Security Table 4-3-5 Instruction of Security Options Definition Match Auth If available, match user entry using the 'username' field from the Username authentication line instead of the 'from' field. Realm Realm for digest authentication. Realms MUST be globally unique according to RFC 3261. -
Page 34: Media
User Manual Media Table 4-3-6 Instruction of Media Options Definition Some ISDN links send empty media frames before the call is in ringing or progress state. The SIP channel will then send 183 indicating early media which will be empty - thus users get no ring signal. Setting this to "yes" will... -
Page 35: Network, Advanced And Logs
User Manual 5. Network, Advanced and Logs Network On “Network” page, there are “Network Settings”, “DDNS Settings”, and “Toolkit”. Network Settings There are three types of LAN port IP, Factory, Static and DHCP. Factory is the default type, and it is 172.16.99.1. - Page 36 User Manual Table 5-1-1 Definition of Network Settings Definition Options Interface The name of network interface. Type The method to get IP. Factory: Getting IP address by Slot Number (System information to check slot number). Static: manually set up your gateway IP.
-
Page 37: Openvpn Settings
User Manual Table 5-1-2 Definition of DNS Settings Options Definition DNS Servers A list of DNS IP address. Basically this info is from your local network service provider. OpenVPN Settings You can upload the OpenVPN client configuration, if success, you can see a VPN virtual network card on SYSTEM status page. -
Page 38: Ddns Settings
User Manual Figure 5-1-4 PPTP VPN Interface DDNS Settings You can enable or disable DDNS (dynamic domain name server). Figure 5-1-5 DDNS Interface Table 5-1-3 Definition of DDNS Settings Options Definition DDNS Enable/Disable DDNS(dynamic domain name server) OpenVox Communication Co.Ltd... -
Page 39: Toolkit
User Manual Type Set the type of DDNS server. Username Your DDNS account’s login name. Password Your DDNS account’s password. Your domain The domain to which your web server will belong. Toolkit It is used to check network connectivity. Support Ping command on web GUI. - Page 40 User Manual Figure 5-2-1 API Interface Table 5-2-1 Definition of Asterisk API Options Definition Port Network port number Manager Name Name of the manager without space Manager secret Password for the manager. Characters: Allowed characters “-_+.<>&0-9a-zA-Z”. Length:4-32 characters. Deny If you want to deny many hosts or networks, use char &...
-
Page 41: Asterisk Cli
User Manual Verbose Verbose information. Read-only. (Defined but not yet used.) Command Permission to run CLI commands. Write-only. Agent Information about queues and agents and ability to add queue members to a queue. User Permission to send and receive UserEvent. -
Page 42: Asterisk File Editor
User Manual Figure 5-2-3 Asterisk Command Interface Table 5-2-2 Definition of Asterisk API Options Definition Command Type your Asterisk CLI commands here to check or debug your gateway. If you type “help” or “?” and execute it, the page will show you the executable commands. -
Page 43: Logs
User Manual Figure 5-2-4 Configuration Files List Click “New Configuration File” to create a new configuration file. After editing or creating, please reload Asterisk. Logs On the “Log Settings” page, you should set the related logs on to scan the responding logs page. - Page 44 User Manual Figure 5-3-2 System Logs Output Notice: The same to Asterisk Logs and SIP Logs. Table 5-3-1 Definition of LOG Options Definition System Logs Whether enable or disable system log. Auto clean switch on : (System Logs) when the size of log file reaches the max size, the system will cut a half of the file.
- Page 45 New logs will be retained. switch off : logs will remain, and the file size will increase gradually. default on, default size=100KB. Thank You for Choosing OpenVox Products! OpenVox Communication Co.Ltd URL:www.openvoxtech.com...
