EVAL_TDA38826_1VOUT user guide
User guide for TDA38826 evaluation board
Evaluation board test results

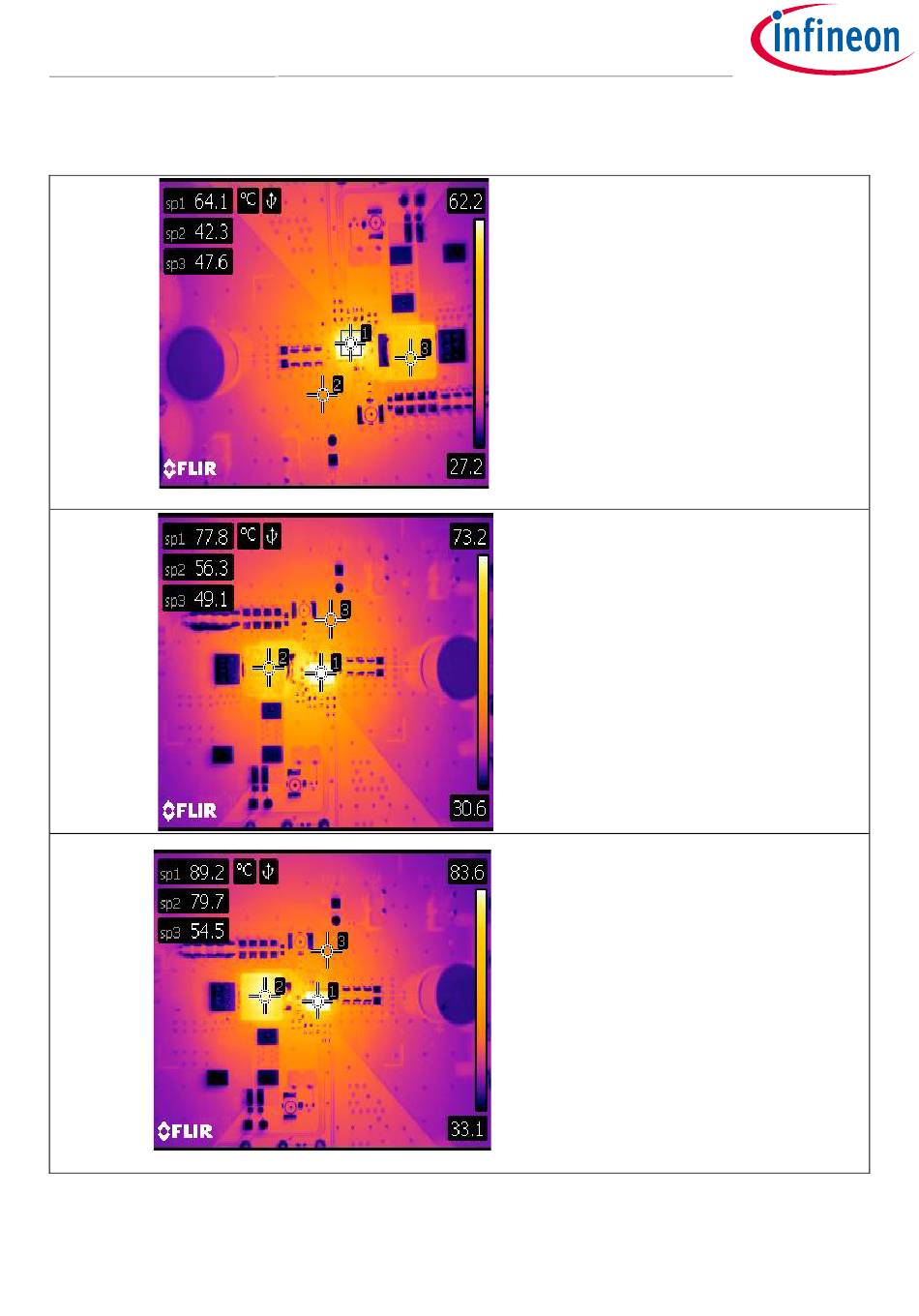

Thermal images with no air flow and 25°C ambient
3.3
Figure 21 Thermal performance of TDA38826 for 1 V, 3.3 V, and 5 V output voltages, 20 A
load, FCCM mode, 800 khz Switching Frequency, 12 V V
User Guide 23
•
Output Voltage 1 V
•
SP1- TDA38826
•
SP2-PCB
•
SP3- Inductor
•
Output Voltage - 3.3
V
•
SP1- TDA38826
•
SP2-Inductor
•
SP3- PCB
•
Output Voltage-5V
•
SP1- TDA38826
•
SP2-Inductor
•
SP3- PCB
IN
2023-07-21
V 1.0
