3.3 TDA38813 Thermal images with no air flow and 25°C ambient

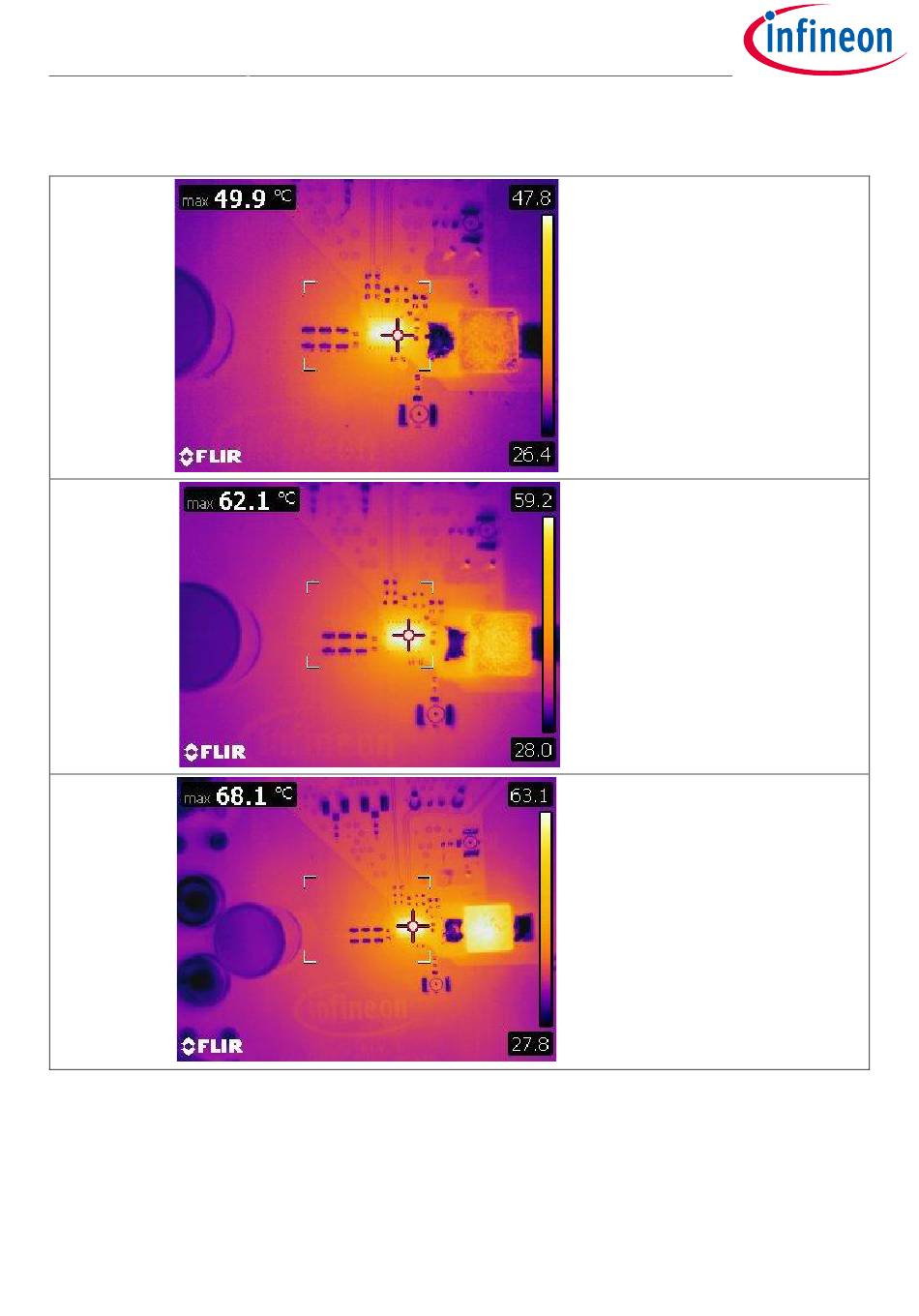

Figure 20 Thermal performance of TDA38813 for 1 V, 3.3 V, and 5 V output voltages, 12 A load, FCCM
mode, 800 kHz switching frequency, 12 V V
User Guide
Output voltage = 1 V
Output voltage = 3.3 V
Output voltage = 5 V
IN
22 V 1.0
