GAS MODELS ONLY

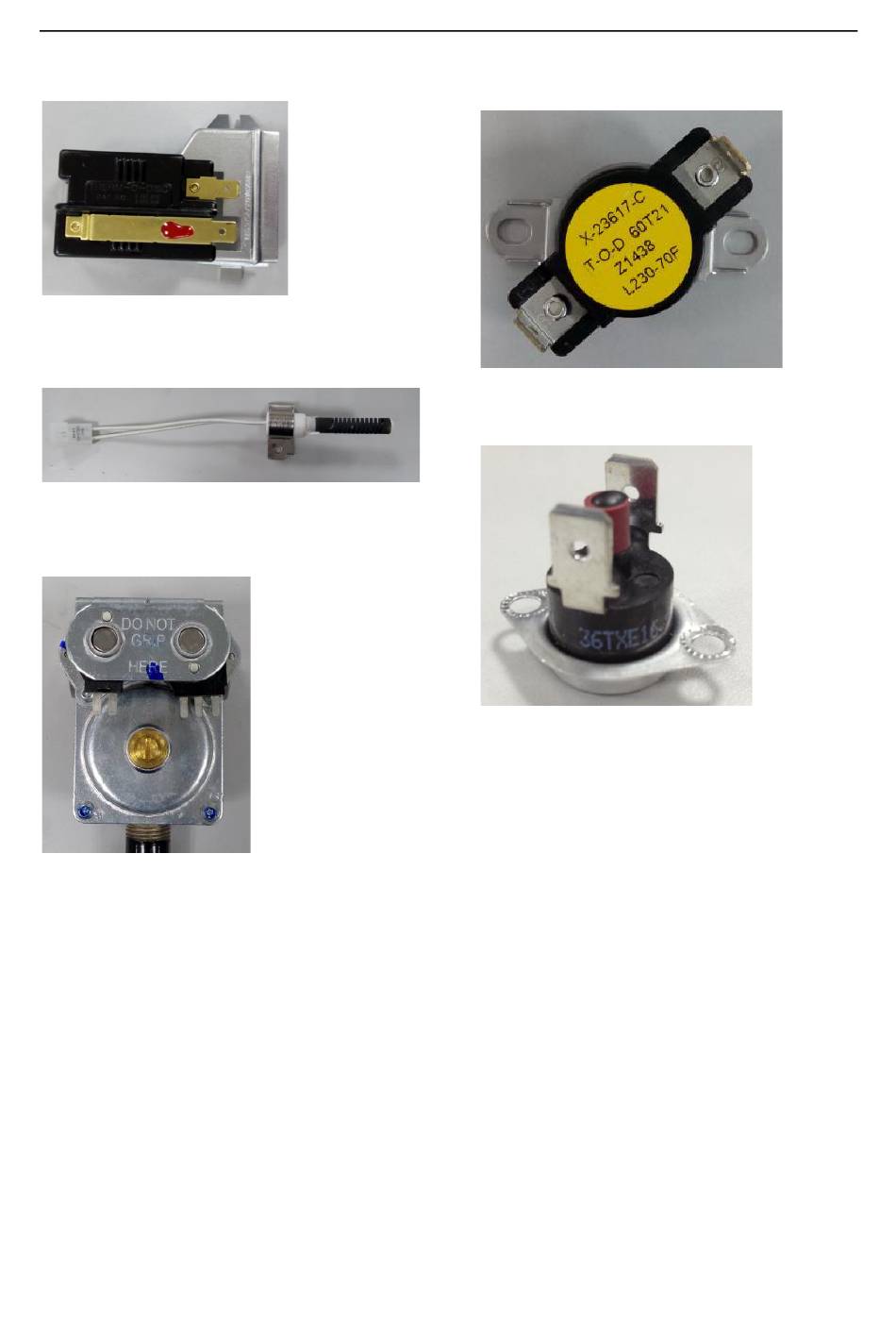

FLAME SENSOR
● Flame sensor resistance < 1Ω
- If resistance is infinity, replace Flame sensor.
IGNITER
● Igniter resistance 40~400 Ω
- If resistance is infinity, replace Igniter.
GAS VALVE
25M01A
120V 60Hz
● Valve1-2: Resistance 1.2KΩ
● Valve1-3: Resistance 0.5KΩ
● Valve4-5: Resistance 1.2KΩ
- If resistance is infinity, replace Valve.
-------------------------------------------------------------------------------------------------------------------------------------------------------
10RS
120V
120V 60Hz
－ 35 －
Midea America Company
THERMOSTAT 1
● Thermostat 1 resistance < 1Ω
- If resistance is infinity, replace Thermostat 1.
THERMOSTAT 2
● Thermostat 2 resistance < 1Ω
- If resistance is infinity, replace Thermostat 2.
230/160F 25A (60T21)
Hi-Limit
175℃, 25A
Thermal cut-off
