3.10 Change the dryer vent location

Your new dryer is shipped to vent to the rear. It can also be configured to vent to he bottom or left
side (as seen from the front).
An Adapter kits which are standard components can be purchased from any retailer. This kit
contains the necessary duct components to change the dryer vent location.

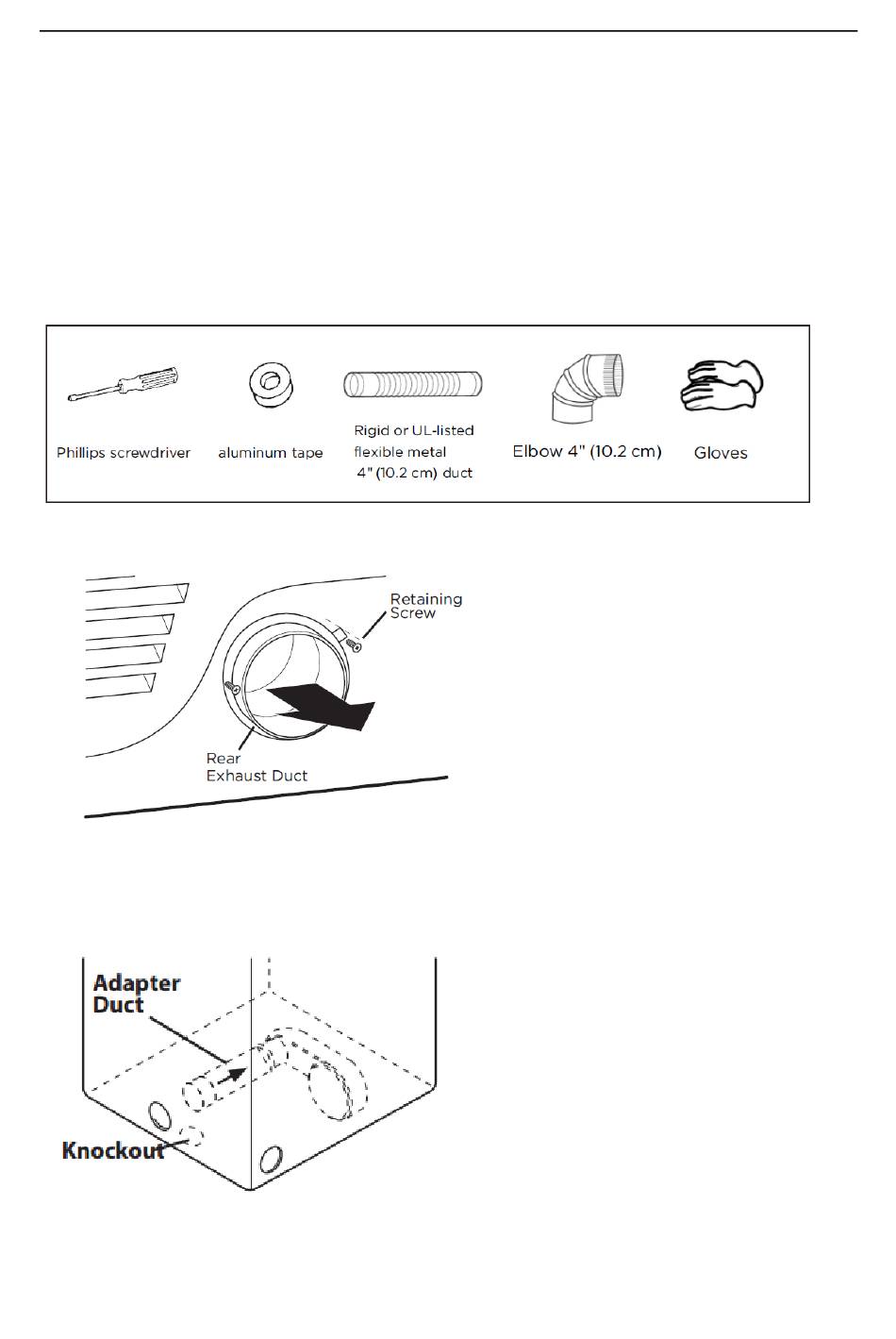

Tools and materials you will need
1. Remove the rear exhaust retaining screws. Pull out the exhaust duct.
Option 1: Side venting
2. Press the tabs on the knockout and carefully remove the knockout for the desired vent opening.
Attach the adapter duct onto the blower housing of the dryer as shown.
3. Preassemble a 4 inches (10.2cm) elbow to the next 4 inches (10.2cm) duct section, and secure
all joints with aluminum tape. Be sure that the male end of the elbow faces AWAY from the dryer.
Insert the elbow/duct assembly through the side opening and attach it onto the adapter duct.
-------------------------------------------------------------------------------------------------------------------------------------------------------
