11) Interchangeable & Spare Parts
Warning – Hot surfaces. External surfaces
and internal components may be hot after
operation, take care when handling the
equipment.
The beacon lens is interchangeable, contact European Safety
Systems Ltd for a replacement lens available in various
colours.
The guard is an integral part of the protection and must be
reassembled exactly the same way as it was disassembled.
To change the lens, unscrew the M5 socket head screws and
remove the M5 screws, M5 spring & flat washers.

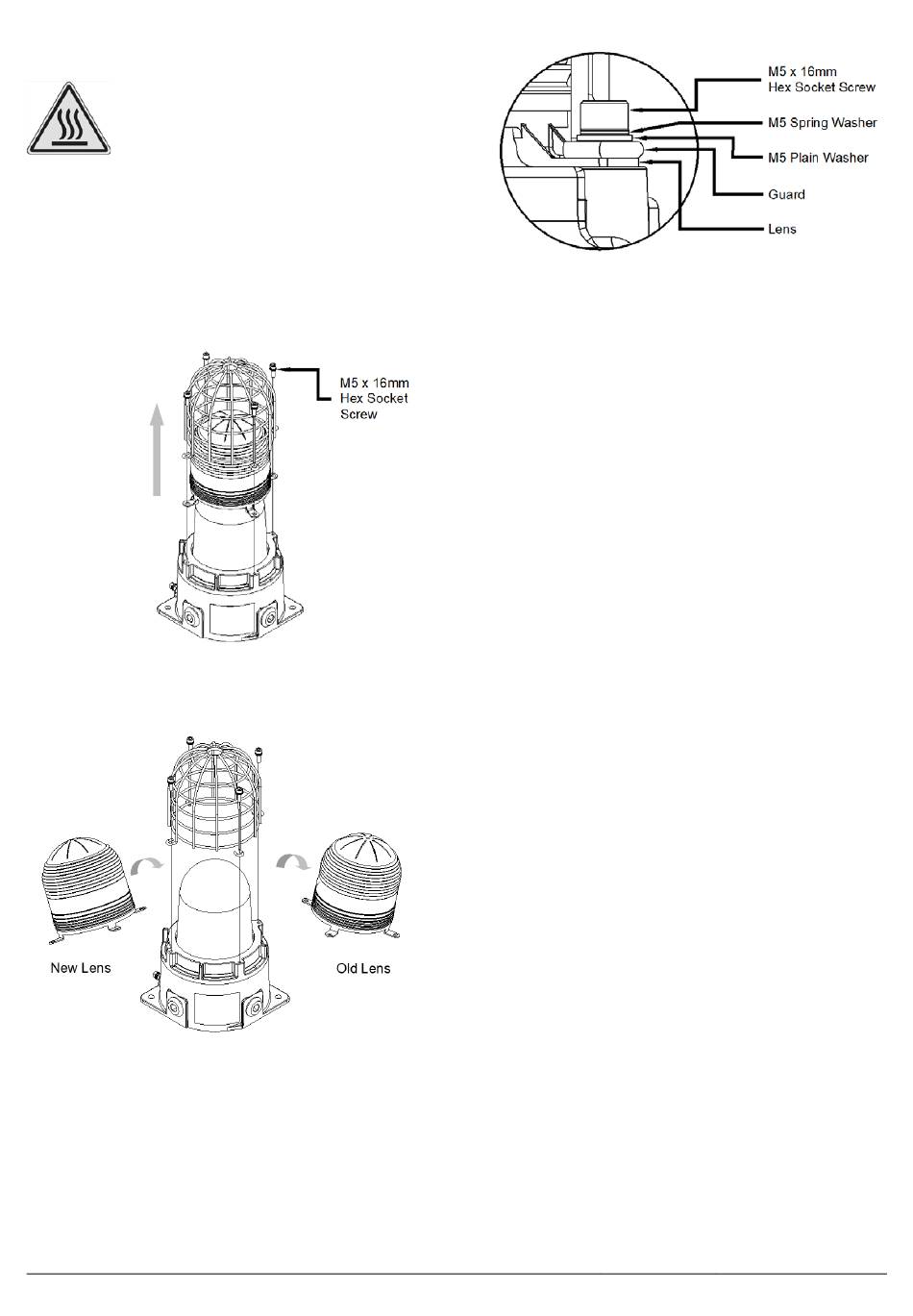

Figure 9: Removal of Lens.
Remove the guard and replace the old lens with the new lens.
Figure 10: Changing of Lens.
Fit the guard back on to the lens and casting, align the holes
of the guard, lens and casting. To reattach the lens, the fixings
MUST be in the order shown in Figure 11.
