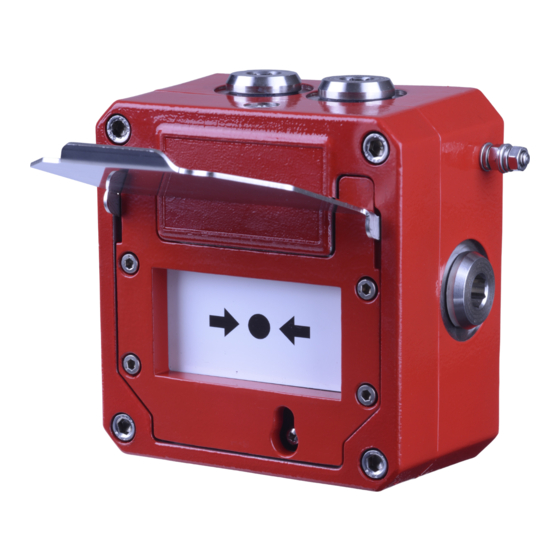

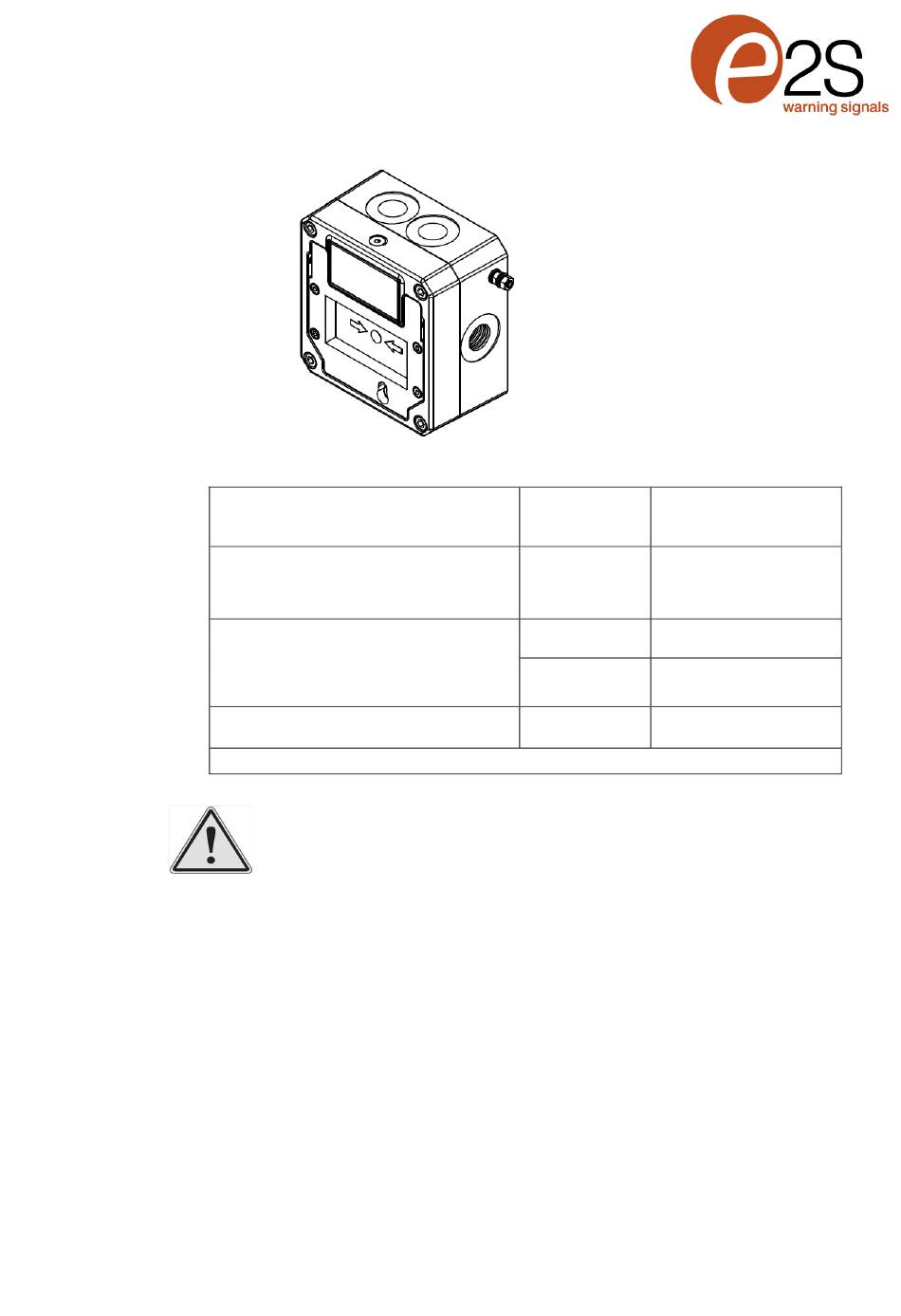

INSTRUCTION MANUAL
STExCP8-BG-S, STExCP8-BG-D
Call Points
Class I & II Div 2 ; UL60947
NEC / CEC / IECEx / UKEx Zone 1, 2, 21, 22 / DNV
1) Product Table
2) Warnings
WARNINGS:
USE COVER BOLTS CLASS A4-70
DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT
POTENTIAL ELECTROSTATIC CHARGING HAZARD – SEE INSTRUCTIONS
ALL ENTRIES M20 X 1.5
TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, CONDUIT RUNS
MUST HAVE A SEALING FITTING CONNECTED WITHIN 2 INCHES OF ENCLOSURE
AVERTISSEMENT:
UTILISER COUVRIR BOULONS CLASSE A4-70
NE PAS OUVRIR UN PRESENCE D'ATMOSPHERE EXPLOSIVE
DANGER POTENTIEL CHARGE ÉLECTROSTATIQUE - VOIR LES INSTRUCTIONS
TOUTES LES ENTRÉES M20 x 1.5
POUR RÉDUIRE LE RISQUE D'INFLAMMATION DES ATMOSPHÈRES DANGEREUSES, LES CONDUITES DE CONDUIT
DOIVENT AVOIR UN RACCORD D'ÉTANCHÉITÉ RACCORDÉ À MOINS DE 2 POUCES DE ENCLOS
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D204-00-001-IS
Model No.
STExCP8-BG-S (Single Switch)
STExCP8-BG-D (Dual Switch)
STExCP8-BG- S (Single Switch)
STExCP8-BG-S-L (Single Switch with LED)
STExCP8-BG- D (Dual Switch)
STExCP8-BG-D-L (Dual Switch with LED)
STExCP8-BG-S-C (Single Switch with LED)
STExCP8-BG-D-C (Dual Switch with LED)
Issue 9
12-01-2024
STExCP8-BG
Input Voltage
250Vac Max
48Vdc Max
24Vdc Max
48Vdc Max
Table 1: Electrical Ratings
www.e2s.com
Sheet 1 of 8
Input Current
5.0A Max ATEX/IECEx/UKEx
3.33A Max Class Div/Zone
1.0A Max
3.0 Max
20mA Max
Tel: +44 (0)208 743 8880

Advertisement

loading
Need help?

Need help?

Do you have a question about the STExCP8-BG-D and is the answer not in the manual?

Questions and answers

Related Manuals for E2S STExCP8-BG-D

Summary of Contents for E2S STExCP8-BG-D

  • Page 1 3.33A Max Class Div/Zone STExCP8-BG- S (Single Switch) 48Vdc Max 1.0A Max STExCP8-BG-S-L (Single Switch with LED) STExCP8-BG- D (Dual Switch) STExCP8-BG-D-L (Dual Switch with LED) 24Vdc Max 3.0 Max STExCP8-BG-S-C (Single Switch with LED) 48Vdc Max 20mA Max STExCP8-BG-D-C (Dual Switch with LED)
  • Page 2 Ex db IIC T6 Gb Ta -55°C to +60°C STExCP8-BG-S-L Class/Division Ratings for US & Canada STExCP8-BG-S-C STExCP8-BG-D STExCP8-BG-D-L Ex db IIC T5 Gb X Ta -55°C to +60°C STExCP8-BG-D-C Ex db IIC T6 Gb X Ta -55°C to +50°C...
  • Page 3 The M12 Cap fitted to the top side of the unit is not a user serviceable part and must not be removed during installation and maintenance. 100ºC (STEXCP8-BG-D-L or C only up to Tamb 65°C) 6) Flame Path Positions 85ºC (STExCP8-BG-D only up to Tamb 60°C) (STEXCP8-BG-S-L or C only up to Tamb 65°C)

  • Page 4: Location And Mounting

    Wiring terminal Fig 3 Earth terminals _______________________________________________________________________________________________________________________________ European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D204-00-001-IS Issue 9 12-01-2024 Sheet 4 of 8...
  • Page 5 Cable necessary training. Gland rating: ºC The equipment must not be installed with any obstruction to For Dual Switch model STExCP8-BG-D: the flanged flameproof joint any closer than permitted as per Max. EN/IEC60079-14, table 13. ambient temperature For high ambient temperatures the cable entry temperature ºC...
  • Page 6 For EOL and Series device limitations and configurations see key is rotated back anticlockwise 90º to its original vertical Section 15. Fitting can be requested by E2S at the order position. The glass element should now raise up so it is level stage or added to the correct terminal blocks afterward.
  • Page 7 An optional Ex d LED monitoring module is designated after the model no. as either, Ensure the glass element is free to move under the cover STExCP8-BG-S-L or STExCP8-BG-D-L to include an LED plate. This can be done by running through the units test and power limiting resistor operation.
  • Page 8 STExCP8-BG-S-C or STExCP8-BG-D-C with includes the The product was assessed against failure modes: LED but where the units current must be limited to 20mA. As the LED has no power limiting resistor.  Failure to close a contact when the call point is struck with specified force ...
  • Page 9 STANDARDS MANSELL ROAD ACTON GNExCP7 ; STExCP8 ; WP7 units DRAWING NUMBER ALTERNATIVE MATERIAL EUROPEAN SAFETY SYSTEMS LTD. SCALE SHEET LONDON W3 7QH APPROVED DATE with DIN Rail AS PER LATEST DATE OF ISSUE SHOWN ABOVE D202-06-211 05-03-2020 WWW.E2S.COM R.N.POTTS...
  • Page 10 Configuration coding added and aligned with other call points. Diode ACN0127 LED options added ; PCB page moved to new document. 1. Other configurations of dual switch units are possible. Contact E2S sales to discuss options. Product Product Module [s]...
  • Page 11 Configuration coding added and aligned with other call points. Diode ACN0127 LED options added ; PCB page moved to new document. 1. Other configurations of dual switch units are possible. Contact E2S sales to discuss options. Product Product Module [s]...
  • Page 12 STANDARDS MANSELL ROAD ACTON GNExCP7 ; STExCP8 ; WP7 units DRAWING NUMBER ALTERNATIVE MATERIAL EUROPEAN SAFETY SYSTEMS LTD. SCALE SHEET LONDON W3 7QH APPROVED DATE with DIN Rail AS PER LATEST DATE OF ISSUE SHOWN ABOVE D202-06-211 05-03-2020 WWW.E2S.COM R.N.POTTS...
  • Page 13 M/S 1 M/S 2 M/S 1 M/S 2 M/S 1 M/S 2 Series device Series device Pre-configured Pre-configured at E2S at E2S Optional EOL device EOL device EOL device Placed as shown Placed as shown Placed as shown in terminal...
  • Page 14 M/S 1 M/S 2 M/S 1 M/S 2 M/S 1 M/S 2 Series device Series device Pre-configured Pre-configured Series device at E2S Series device at E2S Pre-configured Pre-configured at E2S at E2S EOL device EOL device EOL device EOL device...
  • Page 15 Configuration coding added and aligned with other call points. Diode ACN0127 LED options added ; PCB page moved to new document. 1. Other configurations of dual switch units are possible. Contact E2S sales to discuss options. Product Product Module [s]...
  • Page 16 STANDARDS MANSELL ROAD ACTON GNExCP7 ; STExCP8 ; WP7 units DRAWING NUMBER ALTERNATIVE MATERIAL EUROPEAN SAFETY SYSTEMS LTD. SCALE SHEET LONDON W3 7QH APPROVED DATE with DIN Rail AS PER LATEST DATE OF ISSUE SHOWN ABOVE D202-06-211 05-03-2020 WWW.E2S.COM R.N.POTTS...
  • Page 17 WRITTEN CONSENT. STANDARDS MANSELL ROAD ACTON GNExCP7 ; STExCP8 ; WP7 units DRAWING NUMBER ALTERNATIVE MATERIAL EUROPEAN SAFETY SYSTEMS LTD. SCALE SHEET LONDON W3 7QH APPROVED DATE with PCB AS PER LATEST DATE OF ISSUE SHOWN ABOVE D202-06-212 20-08-2023 WWW.E2S.COM R.N.POTTS...
  • Page 18 ACN0127 RNP 20-08-2023 GNEXCP7-BG[s][t][l][e][m][d][v][o][x]-[u][e][s] Resistor ExxxR SxxxR Notes: Series Diode 1. Other configurations of dual switch units are possible. Contact E2S sales to discuss options. Product Product Module [s] Switch Type [s] Zener Diode ExxxZ SxxxZ Version [v] Option [o]...
  • Page 19 ACN0127 RNP 20-08-2023 GNEXCP7-BG[s][t][l][e][m][d][v][o][x]-[u][e][s] Resistor ExxxR SxxxR Notes: Series Diode 1. Other configurations of dual switch units are possible. Contact E2S sales to discuss options. Product Product Module [s] Switch Type [s] Zener Diode ExxxZ SxxxZ Version [v] Option [o]...
  • Page 20 WRITTEN CONSENT. STANDARDS MANSELL ROAD ACTON GNExCP7 ; STExCP8 ; WP7 units DRAWING NUMBER ALTERNATIVE MATERIAL EUROPEAN SAFETY SYSTEMS LTD. SCALE SHEET LONDON W3 7QH APPROVED DATE with PCB AS PER LATEST DATE OF ISSUE SHOWN ABOVE D202-06-212 20-08-2023 WWW.E2S.COM R.N.POTTS...
  • Page 21 WRITTEN CONSENT. STANDARDS MANSELL ROAD ACTON GNExCP7 ; STExCP8 ; WP7 units DRAWING NUMBER ALTERNATIVE MATERIAL EUROPEAN SAFETY SYSTEMS LTD. SCALE SHEET LONDON W3 7QH APPROVED DATE with PCB AS PER LATEST DATE OF ISSUE SHOWN ABOVE D202-06-212 20-08-2023 WWW.E2S.COM R.N.POTTS...
  • Page 22 WRITTEN CONSENT. STANDARDS MANSELL ROAD ACTON GNExCP7 ; STExCP8 ; WP7 units DRAWING NUMBER ALTERNATIVE MATERIAL EUROPEAN SAFETY SYSTEMS LTD. SCALE SHEET LONDON W3 7QH APPROVED DATE with PCB AS PER LATEST DATE OF ISSUE SHOWN ABOVE D202-06-212 20-08-2023 WWW.E2S.COM R.N.POTTS...
  • Page 23 WIRING / CIRCUIT OPERATION DIAGRAM IMPRESS HOUSE 20-08-2023 B.ISARD WRITTEN CONSENT. STANDARDS MANSELL ROAD ACTON DRAWING NUMBER ALTERNATIVE MATERIAL EUROPEAN SAFETY SYSTEMS LTD. SCALE SHEET LONDON W3 7QH APPROVED DATE AS PER LATEST DATE OF ISSUE SHOWN ABOVE D202-06-212 20-08-2023 WWW.E2S.COM R.N.POTTS...
  • Page 24 WRITTEN CONSENT. STANDARDS MANSELL ROAD ACTON GNExCP7 ; STExCP8 ; WP7 units DRAWING NUMBER ALTERNATIVE MATERIAL EUROPEAN SAFETY SYSTEMS LTD. SCALE SHEET LONDON W3 7QH APPROVED DATE with PCB AS PER LATEST DATE OF ISSUE SHOWN ABOVE D202-06-212 20-08-2023 WWW.E2S.COM R.N.POTTS...

  • Page 25: Eu Declaration Of Conformity

    Other Standards and Regulations EN 60529:1992+A2:2013 - Degrees of protection provided by enclosures (IP code) – enclosure rated IP66 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-071_Issue_E (STExCP8).docx - Page 1 of 2 -...
  • Page 26 This Declaration is issued under the sole responsibility of the manufacturer. Martin Streetz Document No.: DC-071_Issue_E Quality Assurance Manager Date and Place of Issue: London 10/09/2023 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-071_Issue_E (STExCP8).docx - Page 2 of 2 - QAF_252_Issue_5...
  • Page 27 Other Standards and Regulations EN 60529:1992+A2:2013 - Degrees of protection provided by enclosures (IP code) – enclosure rated IP66 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-101_Issue_B (STExCP8)- Page 1 of 2 - QAF_252_Issue_5...
  • Page 28 This Declaration is issued under the sole responsibility of the manufacturer. Martin Streetz Document No.: DC-101_Issue_B Quality Assurance Manager Date and Place of Issue: London 10/09/2023 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-101_Issue_B (STExCP8 UKCA).docx - Page 2 of 2 - QAF_252_Issue_5...
