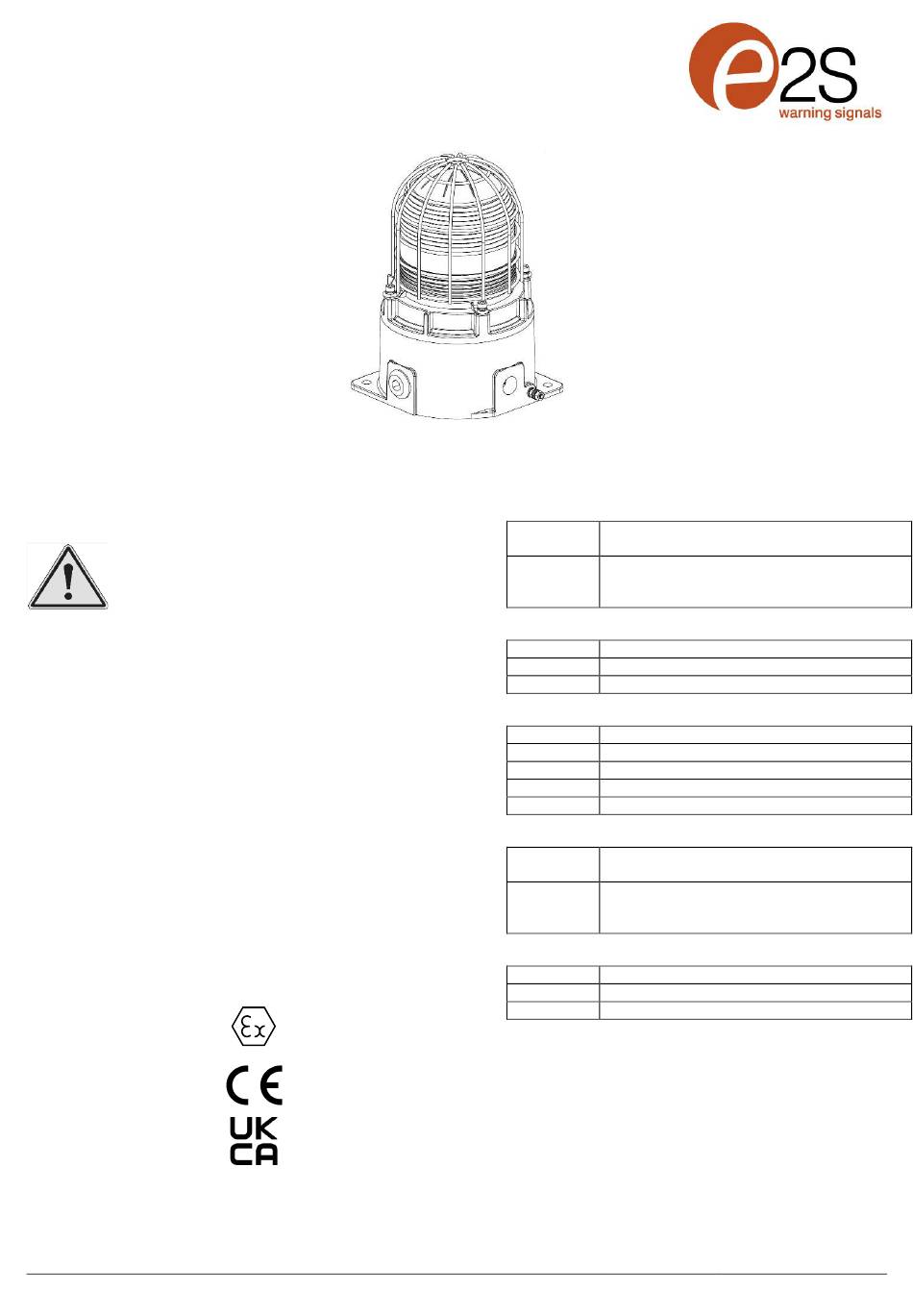

INSTRUCTION MANUAL (ATEX / IECEx & UKEx)
STExB2RT1
Flameproof Rotating Beacons
For use in Flammable Gas and Dust Atmospheres
1) Warnings
• DO NOT OPEN WHEN AN EXPLOSIVE
ATMOSPHERE IS PRESENT
• POTENTIAL ELECTROSTATIC CHARGING
HAZARD
• ALL ENTRIES M20 X 1.5 - IF TEMPERATURE
EXCEEDS 70°C AT ENTRY OR 80°C AT
BRANCHING POINT USE SUITABLE RATED
CABLE AND CABLE GLANDS
2) Rating & Marking Information
All units have a rating label, which carries the following
important information:
STExB2RT1
Model No.
Input Voltage:
DC Units
AC Units
STExB2RT1 Codes:
Ex db IIC T5 Gb Ta -50°C to +40°C
Ex db IIC T4 Gb Ta -50°C to +70°C
Ex tb IIIC T125°C Db Ta -50°C to +70°C
Certificate No.
Epsilon x
Equipment Group and
Category:
CE Marking
Notified Body No.
UKCA Marking and
Notified Body No.
E2S Warning Signals
Impress House, Mansell Road, Acton, London W3 7QH
Document No. D199-00-301-IS
12V or 24V
115V or 230V
DEMKO 16 ATEX1466X
IECEx ULD 16.0017X
UL21UKEX2019X
II 2G
II 2D
2813
0518
Issue 4
The units can be installed in locations with the following
conditions:
Area Classification Gas:
Zone 1
Zone 2
Gas Groupings:
Group IIA
Group IIB
Group IIC
Temperature Classification:
T1
T2
T3
T4
T5
Area Classification Dust:
Zone 21
Zone 22
Dust Groupings:
Group IIIA
Group IIIB
Group IIIC
Maximum Surface Temperature for Dust Applications:
IP Rating: IP6X to EN/IEC60079-0 and IP66 to EN/IEC60529
Equipment Category:
Equipment Protection Level:
Ambient Temperature Range:
21-10-22
STExB2RT1
Explosive gas air mixture likely to occur in
normal operation.
Explosive gas air mixture not likely to occur in
normal operation, and if it does, it will only
exist for a short time.
Propane
Ethylene
Hydrogen and Acetylene
450ºC
300ºC
200ºC
135ºC
100ºC (up to 40ºC ambient)
Explosive dust air mixture likely to occur in
normal operation.
Explosive dust air mixture not likely to occur
in normal operation, and if it does, it will only
exist for a short time.
Combustible Flyings
Non-conductive Dust
Conductive Dust
125ºC
2G/D
Gb, Gc, Db, Dc
-50°C to +70°C
www.e2s.com
Tel: +44 (0)208 743 8880
Sheet 1 of 5
