TLV320x 40-ns, microPOWER, Push-Pull Output Comparators

1 Features

Low Propagation Delay: 40 ns
1
Low Quiescent Current:
40 µA per Channel
Input Common-Mode Range Extends 200 mV
Beyond Either Rail
Low Input Offset Voltage: 1 mV
Push-Pull Outputs
Supply Range: 2.7 V to 5.5 V
Industrial Temperature Range:
–40°C to 125°C
Small Packages:
5-Pin SC70, 5-Pin SOT-23, 8-Pin SOIC, 8-Pin
VSSOP

2 Applications

Inspection Equipment
Test and Measurement
High-Speed Sampling Systems
Telecom
Portable Communications
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. UNLESS OTHERWISE NOTED, this document contains PRODUCTION
DATA.
Sample &
Product
Buy
Folder

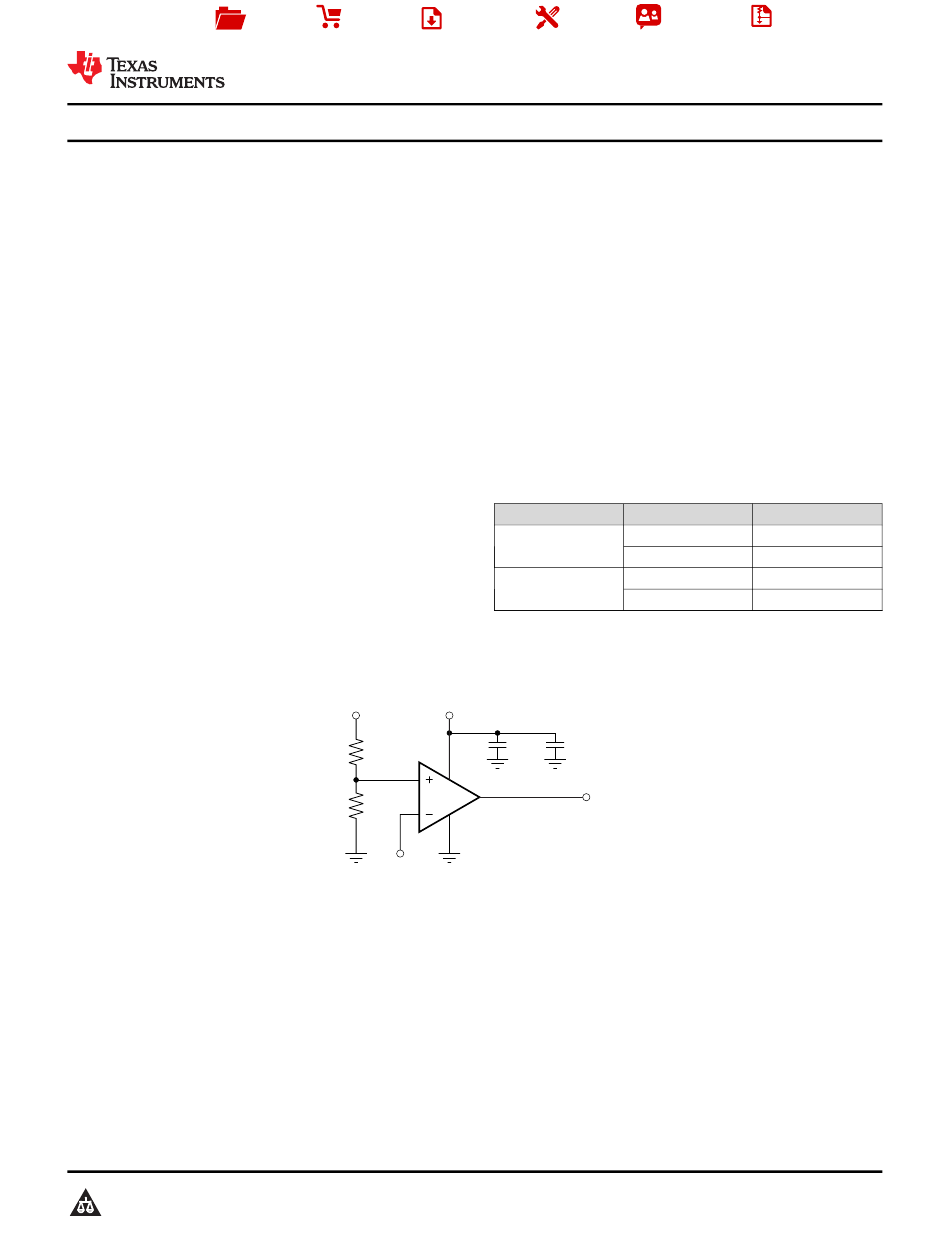

Threshold Detector
V
IN
R1
R2
V
REF
Copyright © 2016, Texas Instruments Incorporated
Tools &
Technical
Software
Documents
SBOS561B – MARCH 2012 – REVISED DECEMBER 2016

3 Description

The TLV3201 and TLV3202 are single- and dual-
channel
comparators
combination of high speed (40 ns) and low-power
consumption (40 µA), all in extremely small packages
with features such as rail-to-rail inputs, low offset
voltage (1 mV), and large output drive current. The
devices are also very easy to implement in a wide
variety of applications where response time is critical.
The TLV320x family is available in single (TLV3201)
and dual (TLV3202) channel versions, both with
push-pull outputs. The TLV3201 is available in 5-pin
SOT-23 and 5-pin SC70 packages. The TLV3202 is
available in 8-pin SOIC and 8-pin VSSOP packages.
All devices are specified for operation across the
expanded industrial temperature range of –40°C to
125°C.
Device Information
PART NUMBER
TLV3201
TLV3202
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
V
CC
C1
C2
V
OUT
Support &
Reference
Community
Design
TLV3201, TLV3202
that
offer
the
(1)
PACKAGE
BODY SIZE (NOM)
SOT-23 (5)
2.90 mm × 1.60 mm
SC70 (5)
2.00 mm × 1.25 mm
VSSOP (8)
3.00 mm × 3.00 mm
SOIC (8)
4.90 mm × 3.91 mm
ultimate
