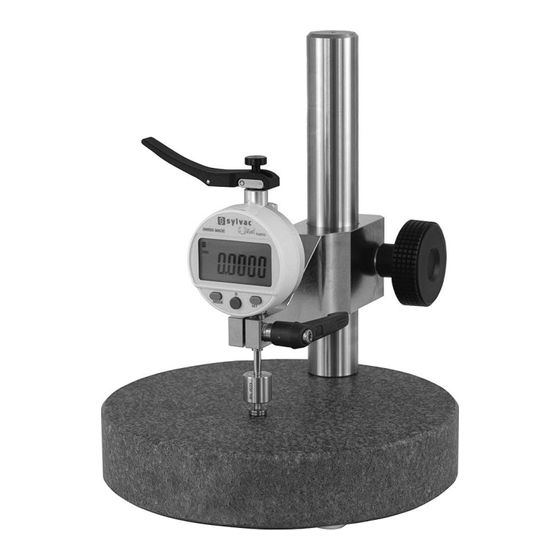

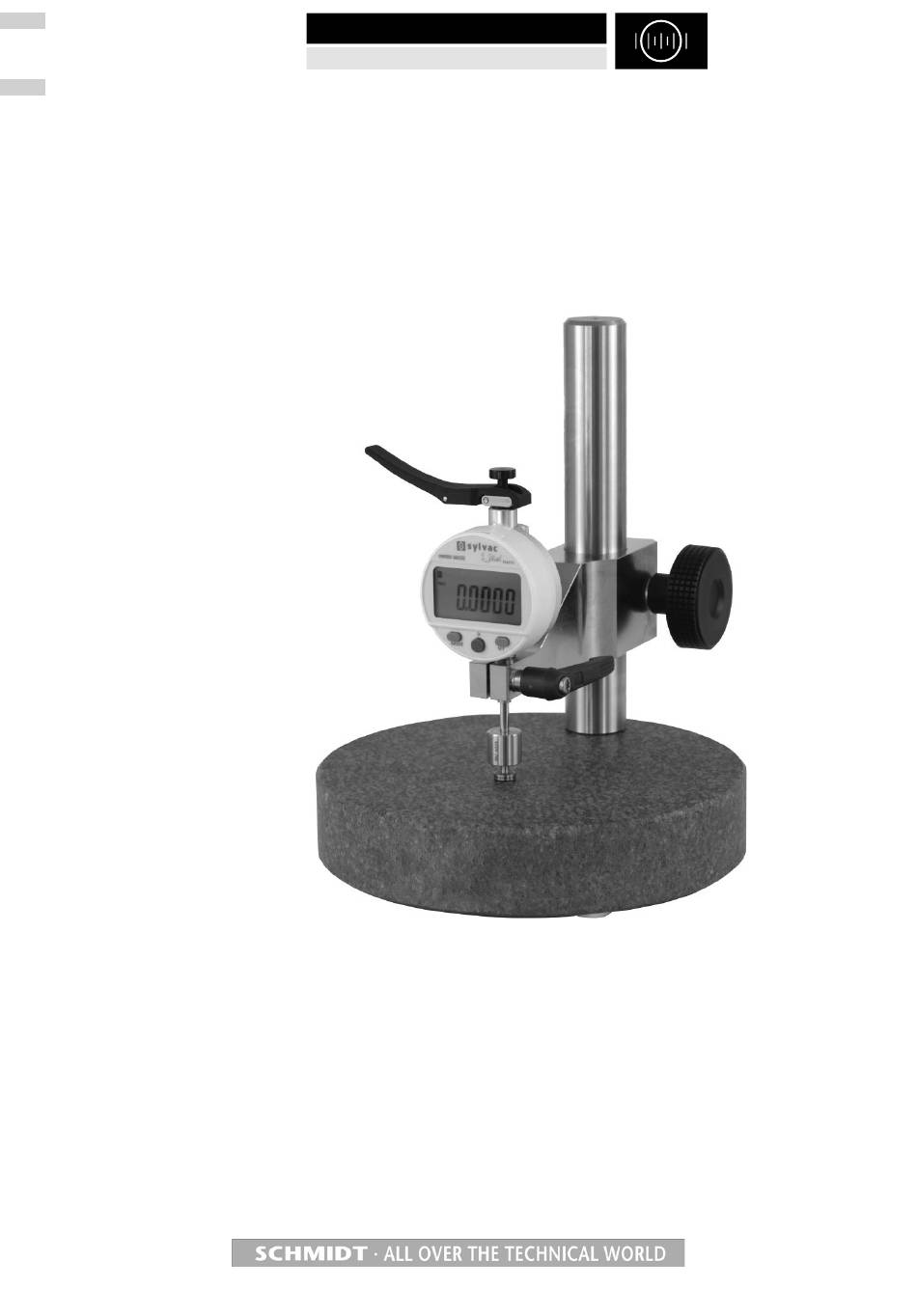

- Page 1 Thickness Gauge S C H M I D T c o n t r o l i n s t r u m e n t s HSTGB Series Operating instructions Thickness Gauge HSTGB...
-
Page 2: Table Of Contents
Content Important hints for the user/intended purpose ................3 Description/overview ........................4 Notes for installation ........................5 Connecting and adjusting of Gauge ....................5 Thickness Measuring ........................6 Test specification ..........................6 Maintenance and care ........................6 Packaging ............................7 Technical data .......................... -
Page 3: Important Hints For The User/Intended Purpose
1. Important hints for the user/intended purpose In order to achieve the best use of this instrument it is most important that you read the operating instructions first. We reserve the right to make changes and supplements to our products, expecially due to technical improvements and further developments and documentations. -
Page 4: Description/Overview
2. Description/overview Nr. Beschreibung Granit base Column Lever Gauge Knob for height adjustment Knob for clamping the Gauge Weight (optional, according to each version) Contact point (optional, according to each version) Lifting device... -
Page 5: Notes For Installation
3. Notes for installation The Thickness Gauge must be placed on a rigid and vibration free surface. Avoid direct solar radiation and air flow and maintain a constant temperature of 23 °C or to the respective standard (chapter 1, chart „Applications of Thickness Gauges HSTGB-2“). 4. -
Page 6: Thickness Measuring
5. Thickness Measuring You have to do the procedure in chapter 4 „Connecting and adjusting of Gauge“. Press and hold the Lifting device (9). The contact point (8) lifts upwards. Put the sample below the contact point (8) on the granite base (1). Release slowly the Lifting device (9). The contact point (8) lowers to the sample. -
Page 7: Packaging
8. Packaging Dispatch the Thickness Gauge only with the original packaging. Don`t ship it with the installed Gauge. Remove the weight and contact point by turning it by hand carefully anticlockwise (bottom view on the Gauge). Untighten the knob for clamping the Gauge (6) and remove the Gauge. Is the Thickness Gauge equipped with a cable release (9) you have to remove it. -
Page 8: Technical Data
The disposal of the instrument is to be accomplished according to the local disposal regulations. Dispose the packing clean according to sorts. More than 75 years - Worldwide - Hans Schmidt & Co GmbH Mailing address: P. O. B. 11 54...
