Summary of Contents for Schmidt DXK

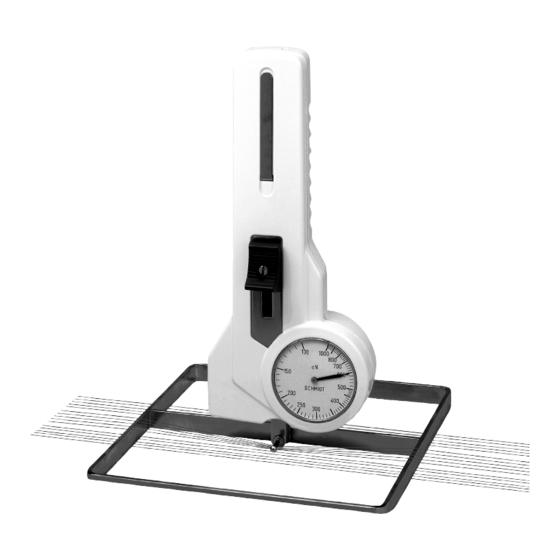

- Page 1 Tension Meter S C H M I D T c o n t r o l i n s t r u m e n t s Edition DX 01.2.E DX Series Model Instruction Manual Valid as of: 01.03.2008 • Please keep the manual for future reference!
-
Page 2: Table Of Contents
Contents 1 Warranty and Liability ....................3 1.1 Notices within the Operating Instructions ............... 3 1.2 Responsibilities of the Operating Company ............3 1.3 Responsibilities of the Personnel ................3 1.4 Informal Safety Measures ..................4 1.5 Training of the Personnel ..................4 1.6 Intended Use ...................... -
Page 3: Warranty And Liability
Warranty: - SCHMIDT tension meters are warranted for 12 months. Parts subject to wear, electronic components and measuring springs are not covered by the warranty. No warranty or liability will be accepted for bodily injury or property damage resulting from one or several of the following causes: - Misuse or abuse of the device. -
Page 4: Informal Safety Measures
The device is intended exclusively to be used as a tension meter. Any other use or any use exceeding this intention will be regarded as misuse. Under no circumstances shall HANS SCHMIDT & Co GmbH be held liable for damage resulting from misuse. -
Page 5: Available Models
15 x 17 DXK-2000 200 - 2000 15 x 17 SCHMIDT calibration with fabric tape Other tension ranges available on request Other units of measure available, such as g International unit for tension force: 1 cN = 1.02 g = 0.01 N 1 daN = 1.02 kg = 10.0 N... -
Page 6: Measuring
We recommend mounting the finger support when measuring high tensions (with Model DXK-1000 and higher tension ranges) to reduce the necessary effort to move the outer rollers with the Thumb piece on the front of the tension meter and facilitate acquisition of the material to be measured. -
Page 7: Measuring With The Tension Meter
3.2 Measuring with the Tension Meter Inserting SCALE REFERENCE FRAME Measuring position SCALE REFERENCE FRAME... -
Page 8: Memory Pointer (Optional Accessory Code M)
3.3 Memory Pointer (Optional Accessory Code M) Memory pointer The tension meter Model DXK can be factory-equipped with a memory pointer for retaining the highest reading obtained during a measuring period. This is achieved by a memory pointer which trails the scale pointer and stops at the highest tension reading (PEAK value) obtained during the measuring period. -
Page 9: Service And Maintenance
The question of finding the right frequency of calibration accuracy verification depends on several different factors: Operating time and load of the SCHMIDT tension meter Tolerance band defined by the customer Changes of the tolerance band compared to previous verifications of calibration Therefore, the interval between verifications must be determined by the user`s Quality Assurance Department based on the user`s experience. -
Page 10: Verification Of Calibration And Determination Of Repair Costs
6.1 Verification of Calibration and Determination of Repair Costs Flow chart for verifying the calibration of used tension meters, incoming and outgoing veri- fication with Inspection Certificate 3.1 according to DIN EN 10204 Delivery Visual inspection and functional test Unit can be Vertification of the calibrated calibration... -
Page 11: Correspondence
Please indicate in your order whether you require an Inspection Certificate 3.1 according to DIN EN 10204. Service address: HANS SCHMIDT & Co GmbH Schichtstr. 16 D-84478 Waldkraiburg Germany... - Page 12 Yarn Package Durometer and Shore-A Durometer Sample Cutter Balance Moisture Meter Leak Tester Softometer More than 70 years - Worldwide - Hans Schmidt & Co GmbH Mailing address: Phone: e-mail: P. O. B. 1154 int. + 49 / (0)8638 / 9410-0 info@hans-schmidt.com...
