Schmidt KXE-50 Operating Instructions Manual

Tension meter, kxe series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

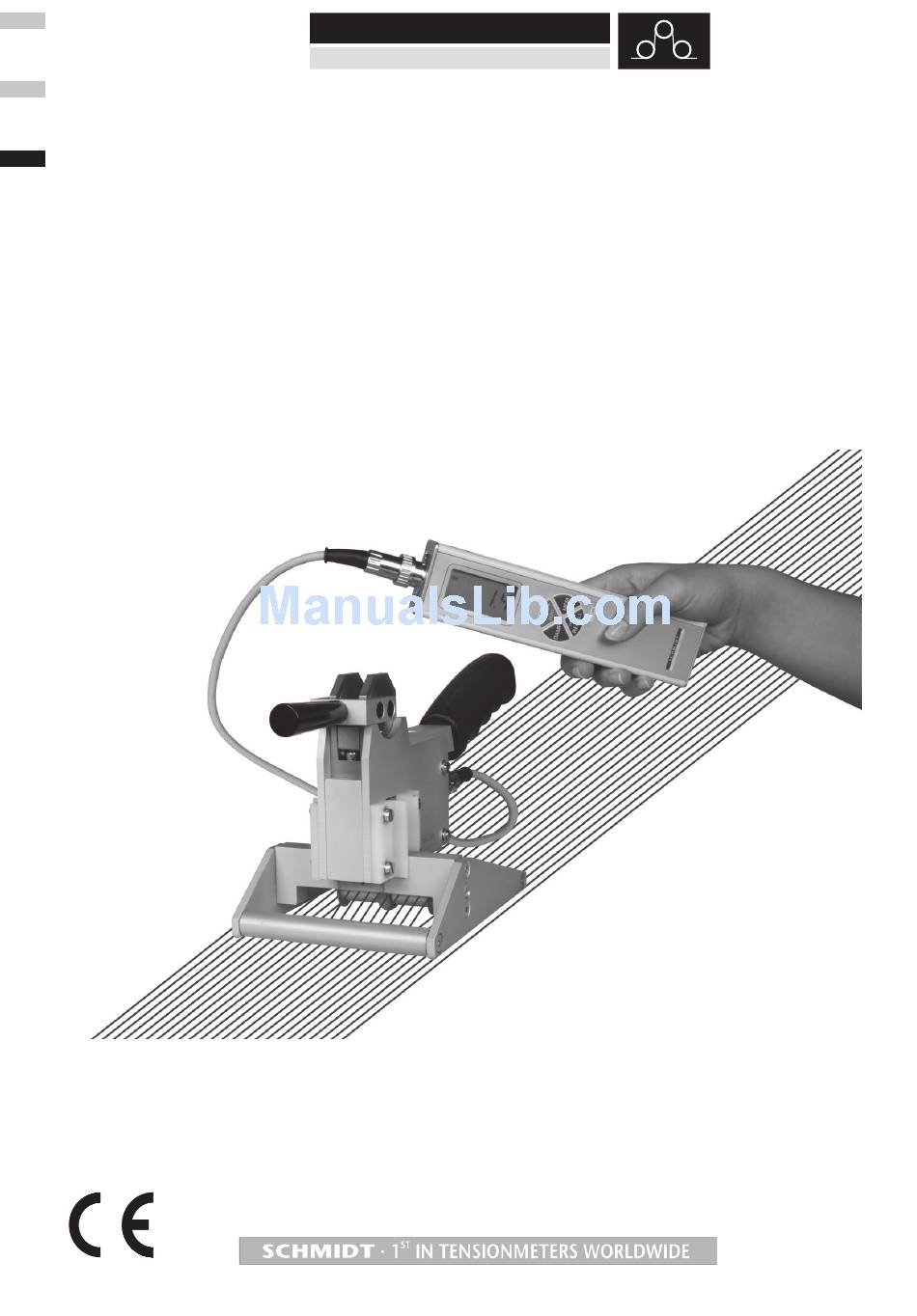

Tension Meter
KXE Series
Model
KXE
S C H M I D T
c o n t r o l
i n s t r u m e n t s

Operating Instructions

Valid as of: 01.09.2011 • Please keep the manual for future reference!
Edition
KXE 02.1.E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KXE-50 and is the answer not in the manual?

Questions and answers

Related Manuals for Schmidt KXE-50

Summary of Contents for Schmidt KXE-50

  • Page 1: Operating Instructions

    Tension Meter S C H M I D T c o n t r o l i n s t r u m e n t s Edition KXE 02.1.E KXE Series Operating Instructions Model Valid as of: 01.09.2011 • Please keep the manual for future reference!

  • Page 2: Table Of Contents

    Contents 1 Warranty and Liability ....................3 1.1 Notices within the Operating Instructions ............... 3 1.2 Responsibilities of the Operating Company ............4 1.3 Responsibilities of the Personnel ................4 1.4 Informal Safety Measures ..................4 1.5 Training of the Personnel ..................4 1.6 Intended Use ......................

  • Page 3: Warranty And Liability

    Warranty: - SCHMIDT tension meters are warranted for 12 months. Parts subject to wear, electronic components and measuring springs are not covered by the warranty. No warranty or liability will be accepted for bodily injury or property damage resulting from one or several of the following causes: - Misuse or abuse of the device.

  • Page 4: Responsibilities Of The Operating Company

    The device is intended exclusively to be used as a tension meter. Any other use or any use exceeding this intention will be regarded as misuse. Under no circumstances shall HANS SCHMIDT & Co GmbH be held liable for damage resulting from misuse. The intended use also includes: - Complying with all notices included in the Operating Instructions and observing all inspection and maintenance works.

  • Page 5: Copyright

    1.9 Declaration of Conformity, RoHs II and WEEE Registration In compliance with the EU Directives 2004/108/EG and 2011/65/EU HANS SCHMIDT & CO GmbH is registered in compliance with the German Electrical and Electronic Equipment Act (ElektroG) under WEEE Reg. No. DE 48092317.

  • Page 6: Delivery Includes

    2.1 Specifications (Cont.) Sensor: Measuring Rollers: 2x 22 mm ball bearing rollers Width of Outer Rollers: 100 mm (ball bearing rollers) Total Width of Rollers: 50 mm Reference Frame Height Adjustment: 24 mm Material: Anodized aluminium Dimensions Reference Frame: 108 x 138 mm (L x W x H) Weight, net (gross): 1000 g (1500 g) 2.2 Delivery Includes...

  • Page 7: Notes Before Starting Measurement

    3.1.1 ID Plate, CE Mark, Calibration Label The ID plate with the CE mark and the serial number as well as the calibration la- bel (optional) are provided on the bottom of the display unit, the SCHMIDT Quality Seal is provided on the surface.

  • Page 8: Setup

    Before you connect the AC adapter, verify that the supply voltage is correct (100 V - 240 V). HANS SCHMIDT & Co. GmbH provides no warranty or liability for any damage resulting from the use of AC adapters from other manufacturers.

  • Page 9: Reversing The Display

    3.3.4 Reversing the Display When you shift the tension meter from the right to the left hand, you can rotate the readings on the DISPLAY by 180°. Measuring with the display unit in the left hand: If you would like to use the left hand for measuring, you should reverse the readings on the DISPLAY to make them easier to read.

  • Page 10: Operating Procedure

    Operating Procedure Requirements: - Tension meter switched on (Ch. 3.3.2). - Damping factor set, if necessary (Ch. 3.4.2). - Zero adjustment carried out (Ch. 3.3.5). LEVER REFERENCE FRAME fig. 3.4 MEAS. ROLLER OUTER ROLLERS To insert the process material: - Push the LEVER in the direction of the arrow to lift the REFERENCE FRAME and the OUTER ROLLERS.

  • Page 11: Switching On Damping Mode

    3.4.1 Switching on Damping Mode The KXE is equipped with an electronic damping which ensures steady readings when tension fluctuates. This is achieved by averaging the measured values at the set update rate. Before switching on the damping mode, it is recommended that you measure the first values without damping enabled.

  • Page 12: Memory Modes

    3.5 Memory Modes The tension meter features a data logger with a memory capacity for up to 4000 readings, with which you can store different measuring periods at one or more machine positions. The readings are saved 2x per sec- Memory Mode ond, synchronously with the display Meas.

  • Page 13: Memory Mode Selection

    3.5.1 Memory Mode Selection Requirements: - Tension meter switched on as described in Chapter 3.3.2. - Memory cleared by simultaneously pressing the MEM and RECALL keys. To select the memory mode: - Press and hold the MEM key. The DISPLAY shows Press the DAMP or RECALL key to change the memory mode.

  • Page 14: Data Logging In Mode "S" Standard

    3.5.1.1 Data Logging in Mode “S” STANDARD Requirements: - Tension meter switched on as described in Chapter 3.3.2. - Memory mode “S” STANDARD set as described in Chapter 3.5.1. - Process material inserted as described in Chapter 3.4. The logged tension values remain stored in the KXE To save the first measuring period: memory even after the in-...

  • Page 15: Data Logging In Mode "L" Limit

    3.5.1.2 Data Logging in Mode “C” CONTINUOUS (Cont.) To stop data logging: - When you want to end the measuring period, press the MEM key once again. The statistical values are calculated from the logged tension data and stored in the following order: The logged tension values Average value,...

  • Page 16: Data Logging In Mode "F" Fast

    3.5.1.3 Data Logging in Mode “L” LIMIT (Cont.) Minimum peak value (MIN PEAK), Maximum peak value (MAX PEAK). Tension value - 1 - Tension value - 2 - ↓ Tension value - 10 - (up to 10 tension values in up to 255 measuring periods) The MEM indicator stops blinking and remains on the display.

  • Page 17: Recalling The Stored Tension Values

    You can save up to 255 measuring periods with a total of 4000 readings max. 3.5.2 Recalling the Stored Tension Values With the TENSION INSPECT software from SCHMIDT, which is included with your tension meter, you can easily and accurately evaluate the stored tension values and export them to an Excel sheet.

  • Page 18: Recalling The Stored Tension Values In Mode "C" Continuous

    3.5.2.1 Recalling the Stored Tension Values in Mode “S“ STANDARD (Cont.) and the symbol. - Press the RECALL key. The DISPLAY blinks, showing minimum peak value (PEAK ) of the measuring period, the PEAK indicator and the symbol. - Press the RECALL key. The next measuring period (POS: 2) is shown on the DISPLAY, starting with the average value (AVG).

  • Page 19: Recalling The Stored Tension Values In Mode "L" Limit

    3.5.2.2 Recalling the Stored Tension Values in Mode “C“ CONTINUOUS (Cont.) - Press the RECALL key. The DISPLAY blinks, showing maximum peak value (PEAK ) of the measuring period, the PEAK indicator and the symbol. - Press the RECALL key. The DISPLAY blinks, showing minimum peak value (PEAK ) of the measuring period, the PEAK indicator and the...

  • Page 20: Recalling The Stored Tension Values In Mode "F" Fast

    3.5.2.3 Recalling the Stored Tension Values in Mode “L“ LIMIT (Cont.) maximum value (MAX) of the measuring period and the symbol. - Press the RECALL key. The DISPLAY blinks, showing minimum value (MIN) of the measuring period and the symbol. - Press the RECALL key.

  • Page 21: Clearing The Kxe Memory

    3.5.2.4 Recalling the Stored Tension Values in Mode “F“ FAST (Cont.) measuring period (POS: 1) and the symbol. - Press the RECALL key. The DISPLAY blinks, showing last value (LAST) of the measuring period. - Press the RECALL key. The DISPLAY blinks, showing maximum value (MAX) of the measuring period and the symbol.

  • Page 22: Error Messages

    The diameters are given in Chapter 2. Any difference in process material size and rigidity from the standard material may cause a deviation of the accuracy. In 95% of all industrial applications, the SCHMIDT calibration has been proven to provide the best results and is used for comparative purposes.

  • Page 23: Pc Communication (Usb Interface)

    The requirements of the CE specification are only complied with if the ten- sion sensor is equipped and operated with display units and connecting cables supplied by HANS SCHMIDT & Co GmbH. Certification to the CE spec- ification does not extend to, and shall be invalid for any other combination.
  • Page 24 Please indicate in your order whether you require an Inspection Certificate 3.1 according to DIN EN 10204. Service address: HANS SCHMIDT & Co GmbH Schichtstr. 16 D-84478 Waldkraiburg Germany More than 60 years - Worldwide - Hans Schmidt &...
