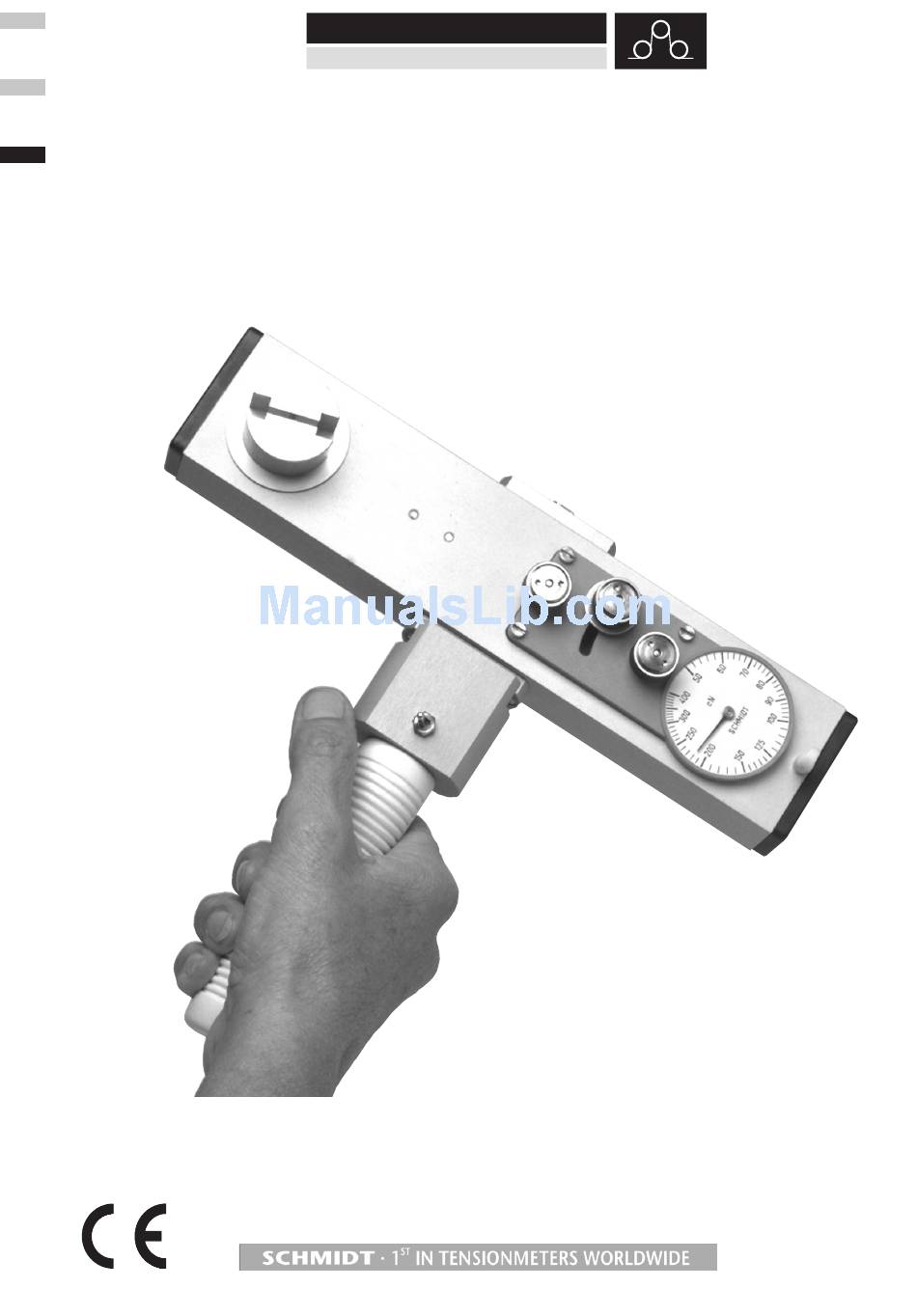

- Page 1 Edition MKM 03.3.E MKM Series Model MKM-50 Instruction Manual MKM-100 MKM-400 Valid as of: 01.03.2007 • Please keep the manual for future reference!
-
Page 2: Table Of Contents
Contents 1 Warranty and Liability ....................3 1.1 Notices within the Operating Instructions ............... 3 1.2 Responsibilities of the Operating Company ............3 1.3 Responsibilities of the Personnel ................3 1.4 Informal Safety Measures ..................4 1.5 Training of the Personnel ..................4 1.6 Intended Use ...................... -
Page 3: Warranty And Liability
Warranty: - SCHMIDT tension meters are warranted for 12 months. Parts subject to wear, electronic components and measuring springs are not covered by the warranty. No warranty or liability will be accepted for bodily injury or property damage resulting from one or several of the following causes: - Misuse or abuse of the device. -
Page 4: Informal Safety Measures
The device is intended exclusively to be used as a tension meter. Any other use or any use exceeding this intention will be regarded as misuse. Under no circumstances shall HANS SCHMIDT & Co GmbH be held liable for damage resulting from misuse. -
Page 5: Available Models
PA: 0.20 mm Ø * Suitable for 95% of all applications. PA = Polyamide Monofilament If the material to be measured differs significant from the SCHMIDT calibration material in diameter, rigidity, shape, etc., we recommend calibration using customer supplied material. Please supply a material sample of 5 m for this purpose. -
Page 6: Initial Setup And Operating Procedure
Initial Setup and Operating Procedure 3.1 Operating Elements 1 HANDLE 8 Jack socket 6.35 mm ø for handle 2 MOTOR SWITCH 9 SCALE 3 Jack plug 6.35 mm ø 10 Tension meter 4 TAKE-UP WHEEL 11 PROCESS MATERIAL 5 Charger connector 12 GUIDE EYE 6 Jack plug 3.5 mm ø... -
Page 7: Charging The Battery
The ID plate with the serial number as well as the calibration label (optional) are provided on the bottom of the instrument, the SCHMIDT Quality Seal are provided on the surface. 3.4 Operating Procedure - Depending on the orientation of use, plug in the JACK PLUG of the HANDLE at either of the two JACK SOCKETS provided on the sides of the TENSION METER. -
Page 8: Verification Of Calibration
Chapter 2. Any difference in process material size and rigidity from the standard material may cause a deviation of the accuracy. In 95% of all industrial applications, the SCHMIDT calibration has been proven to provide the best results and is used for comparative pur- poses. -
Page 9: Service And Maintenance
6 Verification Interval The question of finding the right frequency of calibration accuracy verification depends on several different factors: Operating time and load of the SCHMIDT tension meter Tolerance band defined by the customer ... -
Page 10: Verification Of Calibration And Determination Of Repair Costs
Verification of Calibration and Determination of Repair Costs Flow chart for verifying the calibration of used tension meters, incoming and outgoing verification with Inspection Certificate 3.1 according to DIN EN 10204 Delivery Visual inspection and functional test Unit can be Vertification of the calibrated calibration... -
Page 11: Correspondence
Please indicate in your order whether you require an Inspection Certificate 3.1 according to DIN EN 10204. Service address: HANS SCHMIDT & Co GmbH Schichtstr. 16 84478 Waldkraiburg Germany... - Page 12 Yarn Package Durometer and Shore-A Durometer Sample Cutter Balance Moisture Meter Leak Tester Softometer More than 70 years - Worldwide - Hans Schmidt & Co GmbH Mailing address: Phone: e-mail: P. O. B. 1154 int. + 49 / (0)8638 / 9410-0 info@hans-schmidt.com...
