Related Manuals for Schmidt HSTGC
Summary of Contents for Schmidt HSTGC

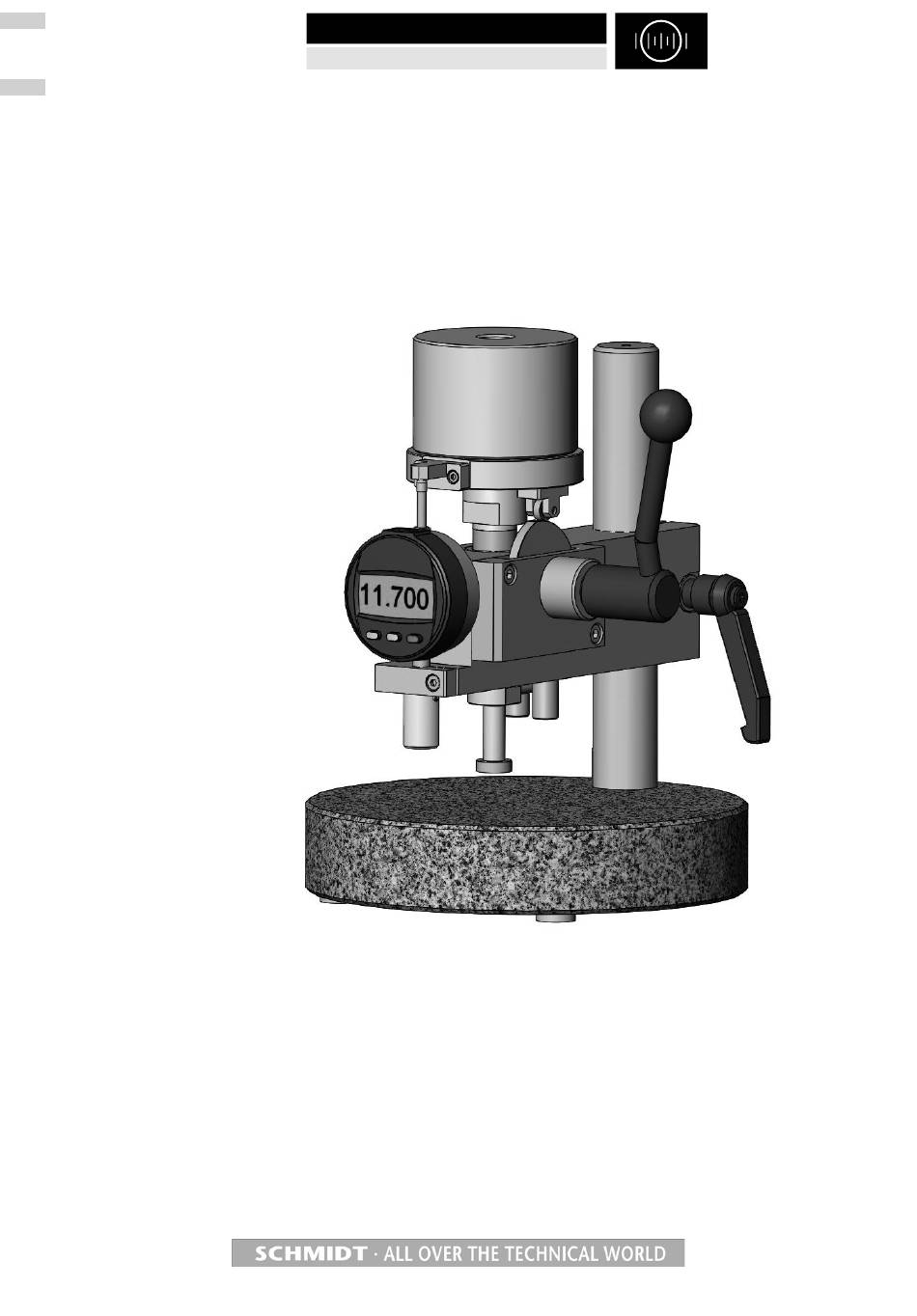

- Page 1 Thickness Gauge S C H M I D T c o n t r o l i n s t r u m e n t s HSTGC Series Operating instructions Thickness Gauge HSTGC...
-
Page 2: Table Of Contents
Content Important hints for the user/intended purpose ................3 Description/overview ........................4 Notes for installation ........................5 Connecting and adjusting of Gauge ....................5 Thickness Measuring ........................6 Extension of measuring range with a 10 mm slip block ..............6 Test specification .......................... -
Page 3: Important Hints For The User/Intended Purpose
A change or modification of the Thickness Gauge is not allowed. The HSTGC Thickness Gauges are exclusively intended for measuring thickness. This also refers to all versions listed below. All versions are only intended for measuring the thickness if the materials listed. -
Page 4: Description/Overview

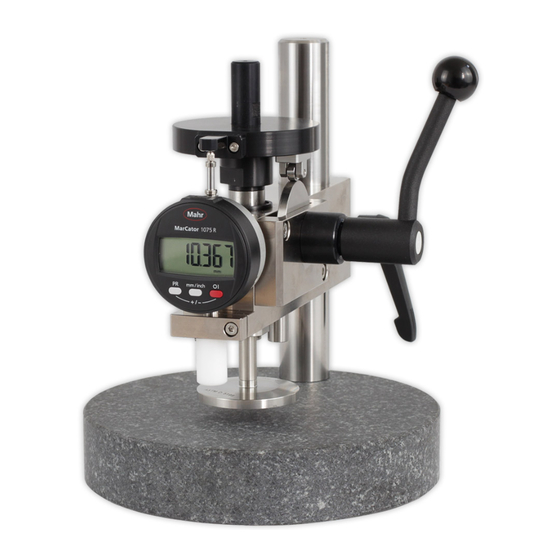

2. Description/overview No. Description Granite base Column Lever Gauge Knob for height adjustment Clamp screw for Gauge Weight (optional, according to each version) Contact point (optional, according to each version) Lever for lifting movement Magnetic holder Gauging pin Battery tray Data output... -
Page 5: Notes For Installation
The Thickness Gauge must be placed on a rigid and vibration free surface. Avoid direct solar radiation and air flow and maintain a constant temperature of 23 °C or to the respective standard (chapter 1, chart „Applications of Thickness Gauges HSTGC“). 4. Connecting and adjusting of Gauge Remove the battery tray (B) and insert the battery accurate to side (see imprint battery tray). -
Page 6: Thickness Measuring
5. Thickness Measuring You have to do the procedure in chapter 4 „Connecting and adjusting of Gauge“. Turn the Lever for lifting movement (9) careful to the upper position. The contact point (8) lifts upwards. Put the sample below the contact point (8) on the granite base (1). Turn the Lever for lifting movement (9) careful to the bottom position. -
Page 7: Test Specification
7. Test specification Please take the test specification from the standard of your respective thickness gauge (chapter 1, chart „Applications of Thickness Gauges HSTGC“). 8. Maintenance and care The Thickness Gauge does not require any maintenance. Clean and care the granite base frequently with a suitable cleaner for granite (accessories). -
Page 8: Packaging
9. Packaging Dispatch the Thickness Gauge only with the original packaging. 1. Remove the weight (7) if existing. 2. Turn the Lever for lifting movement (9) careful to the bottom position. 3. Hold the lever (3) with your left and open the Knob for height adjustment (5). 4. -
Page 9: Technical Data
10. Technical data Delivery contents: Thickness Gauge HSTGC Weight and contact point according to each version Operating instructions Weight: 8 kg Dimensions: Ø200 mm x 244 mm 11. Accessories Description: Ceramic slip gauge 10,0 mm Microfibre care cloth for slip gauge... - Page 11 Notizen:...
- Page 12 Yarn Package Durometer and Shore Durometer Sample Cutter Balance Moisture Meter Leak Tester More than 75 years - Worldwide - Hans Schmidt & Co GmbH Mailing address: P. O. B. 11 54 Phone: e-mail: 84464 Waldkraiburg Germany int. + 49 / (0)8638 / 9410-0 info@hans-schmidt.com...
